HALOGEN LAMP 120W
PLI-104C black
PLI-106C white
We thank you for the purchase of this Profile product.
Note: It is important that you read this manual carefully
before using the product And be sure to save this manual
for possible use later.
Note
Check if building regulations apply to your area whereby
you must have the halogen hand lamp installed by an
accredited electrician. An electrician can give you
information about correct wiring. Never install the fitting
outside in rainy weather.
SWITCH OFF THE POWER BEFORE YOU INSTALL
THE HALOGEN LAMP.
Correct installation
With installation outside preferably choose a place
under a roof.
Connect the halogen hand lamp to a circuit with wall
switch.
Unscrew the stainless steel bolts on the side to take
the holder from the fitting.
Fix the holder to the wall with 2 screws. Do not fix the
holder to a highly flammable surface. Leave a distance
of at least 1 m between the halogen hand lamp and the
object to be illuminated. (see fig. 2) Install the halogen
hand lamp at least 2.5 m above the ground. (see fig.1)

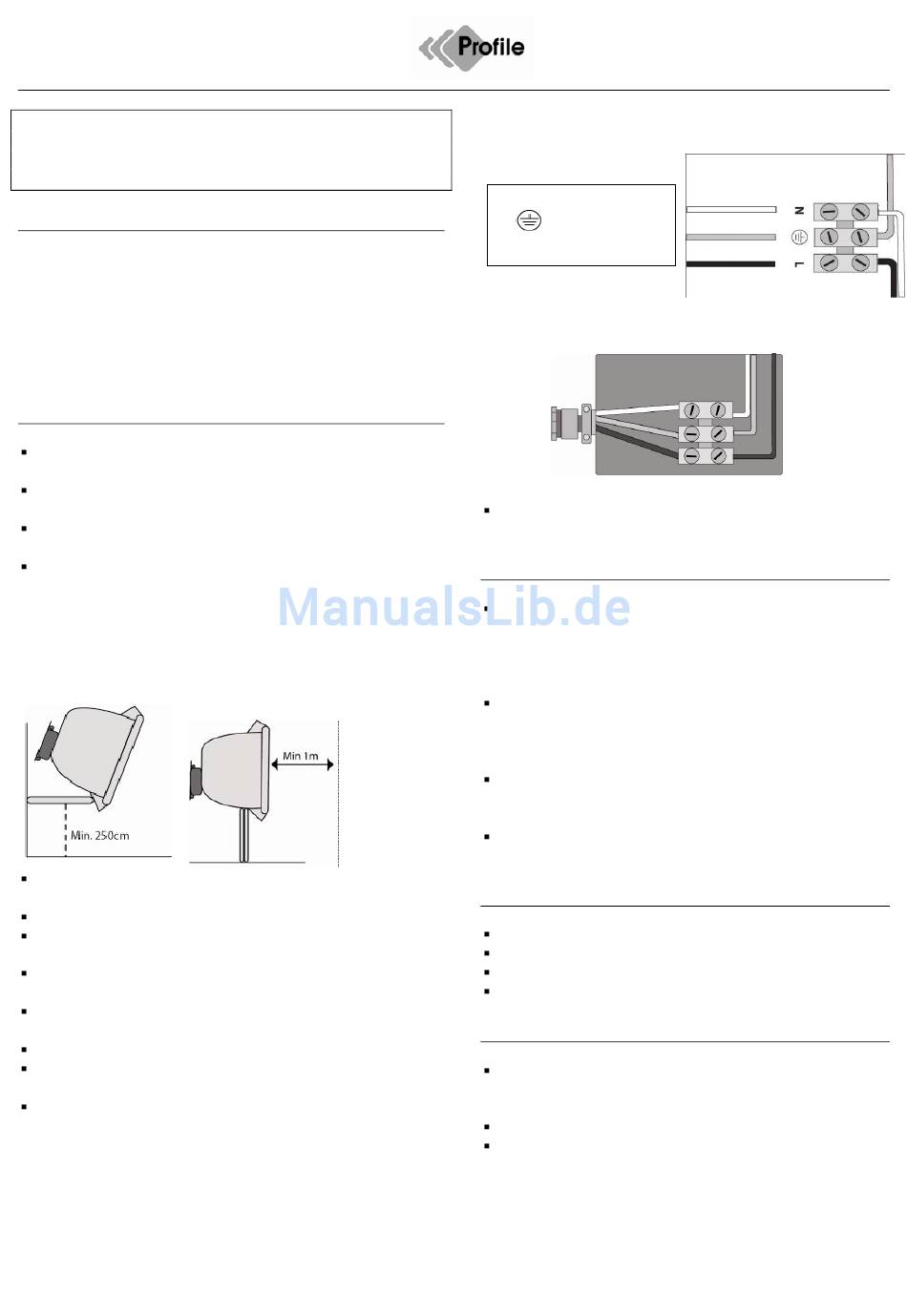

Fig. 1
Fix the halogen hand lamp back on the assembled
holder.
Remove the cover of the cable connection.
Pull the power supply wires through the opening with
the rubber packing.
Connect the electric wiring according to figures 3 and
4.
The halogen hand lamp must be connected to mains
voltage of 230V, max. fusing 16A.
Screw the cable connection cover tight again.
Always respect the instructions on the identification
label of the connected power cables.
Other uses than described above can cause damage to
the product and increase the risk of short-circuit, fire,
electric shocks, etc.
Fig. 2
Fig. 3
L = phase
*
* = earthing
* N = neutral wire
Fig. 4
The product may not be adapted as a whole. The
safety instructions must be strictly observed.
Safety instructions
The importer accepts no responsibility for damage
claims with respect to objects or persons that result
from incorrect use or non-compliance with the safety
instructions. Any damage claims in such cases will
be declared null and void.
When replacing the halogen bulb the lamp must first
have cooled before the bulb is replaced. Also
disconnect the power supply. Do not exceed the
maximum wattage of 120W.
CAUTION: Never touch the bulb with your fingers.
Touching the bulb with your fingers can reduce the
life of the bulb.
Always replace cracked or broken glass by glass
with the same properties as the original glass.
Technical information
Working voltage: 230V AC (50/60 Hz)
Maximum lamp power: 120W.
Maximum current strength: 10/16A.
Dustproof and splash proof: IP44.
Maintenance
Only use a dry, soft cloth for cleaning the halogen
hand lamp. And make sure that the lamp has first
cooled.
Never immerse the lamp in water.
Maintenance and repairs may only be carried out by
technicians who are familiar with any applicable
regulations.
