INSTALLATION

Attachment

Before attaching the device, make sure that the installation area can hold a minimum point load of 10 times
the device's weight.
The device must only be installed absolutely planar at a vibration-free, oscillation-free and fire-resistant
location. Make sure that the device is installed absolutely planar by using a water-level.
The device must be installed out of the reach of people.
The device must always be installed via all fixation holes. Do only use appropriate screws and make sure
that the screws are properly connected with the ground.
The durability of the installation depends very much on the material used at the installation area (building
material) such as wood, concrete, gas concrete, brick etc. This is why the fixing material must be chosen to
suit the wall material. Always ask a specialist for the correct plug/screw combination indicating the maximum
load and the building material.
Procedure:
Step 1: On the mounting brackets of the device, there are the holes for the installation.
Step 2: Hold the mounting brackets with the device onto the location where it is to be installed.
Step 3: Mark the boreholes with a pen or a suitable tool.
Step 4: Drill the holes.
Step 5: Hold the mounting brackets in the desired position and tighten them.
The mounting brackets on the rear panel can be moved to the desired position.
Adjust the desired inclination-angle via the mounting brackets and tighten the fixation screws.

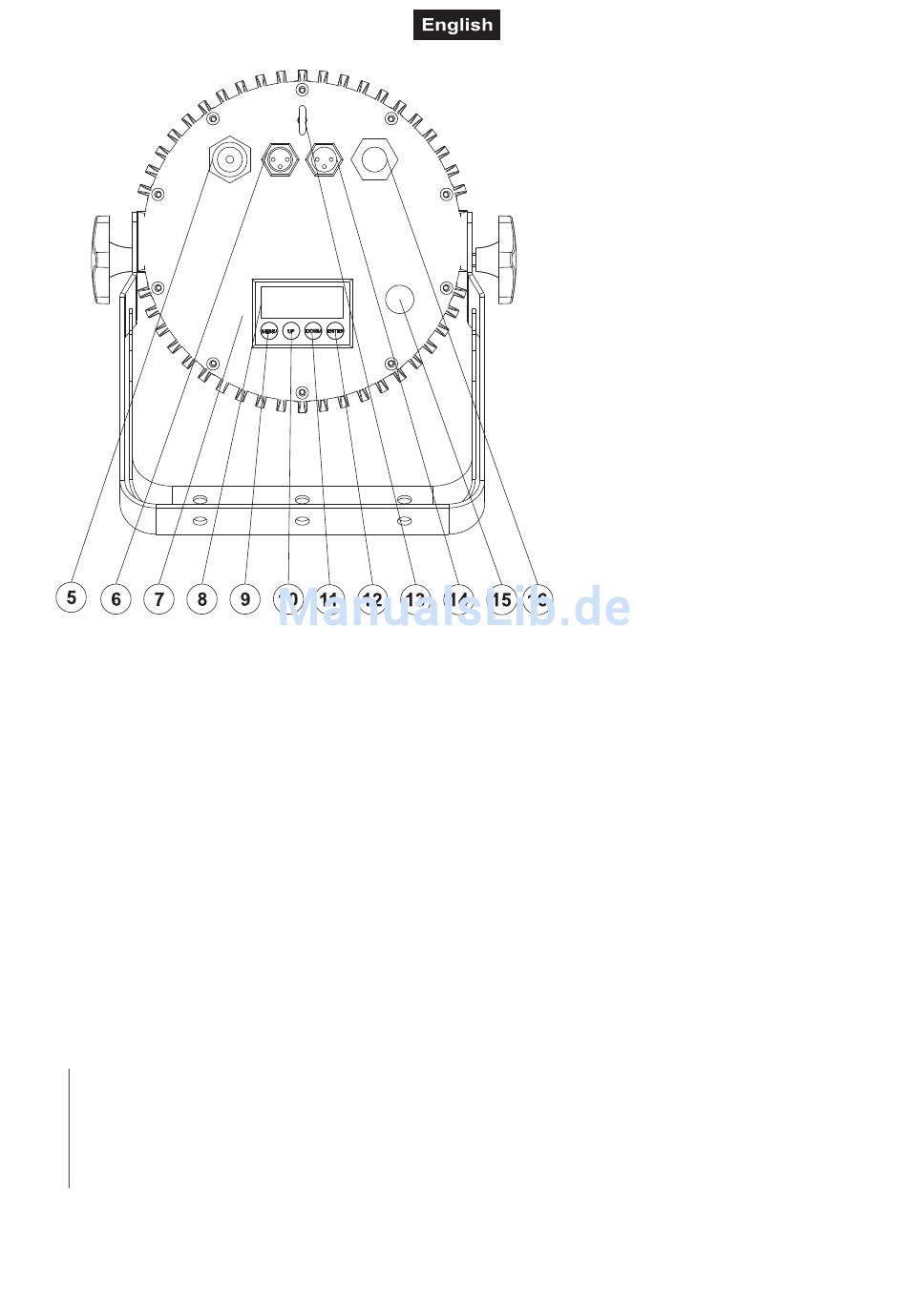

(5) Power input
(6) DMX-Input
(7) Control Board
(8) Display
(9) Menu button
(10) Up button
(11) Down button
(12) Enter button
(13) Safety eyelet
(14) DMX output
(15) Vent screw
(16) Power output
