Congratulations on your purchase!
With the CICLOMASTER CM 4.2 you have acquired a wireless electronic bike computer with state of the art
electronics, the highest level of precision and it is weatherproof. As special features the CM 4.2 has an optional
cadence measurement and an optional heart rate measurement (for this you need separately available
CM 4.2
accessories ).
The Two in One-System: this allows you to use this cycle computer for two different bicycles and view the
combined total values.
Please read this operating manual carefully.
Lieferumfang:
- CICLOMASTER CM 4.2
- battery type CR 2032
- battery cap
- handlebar bracket
- transmitter
- cable ties for mounting
- spoke magnet

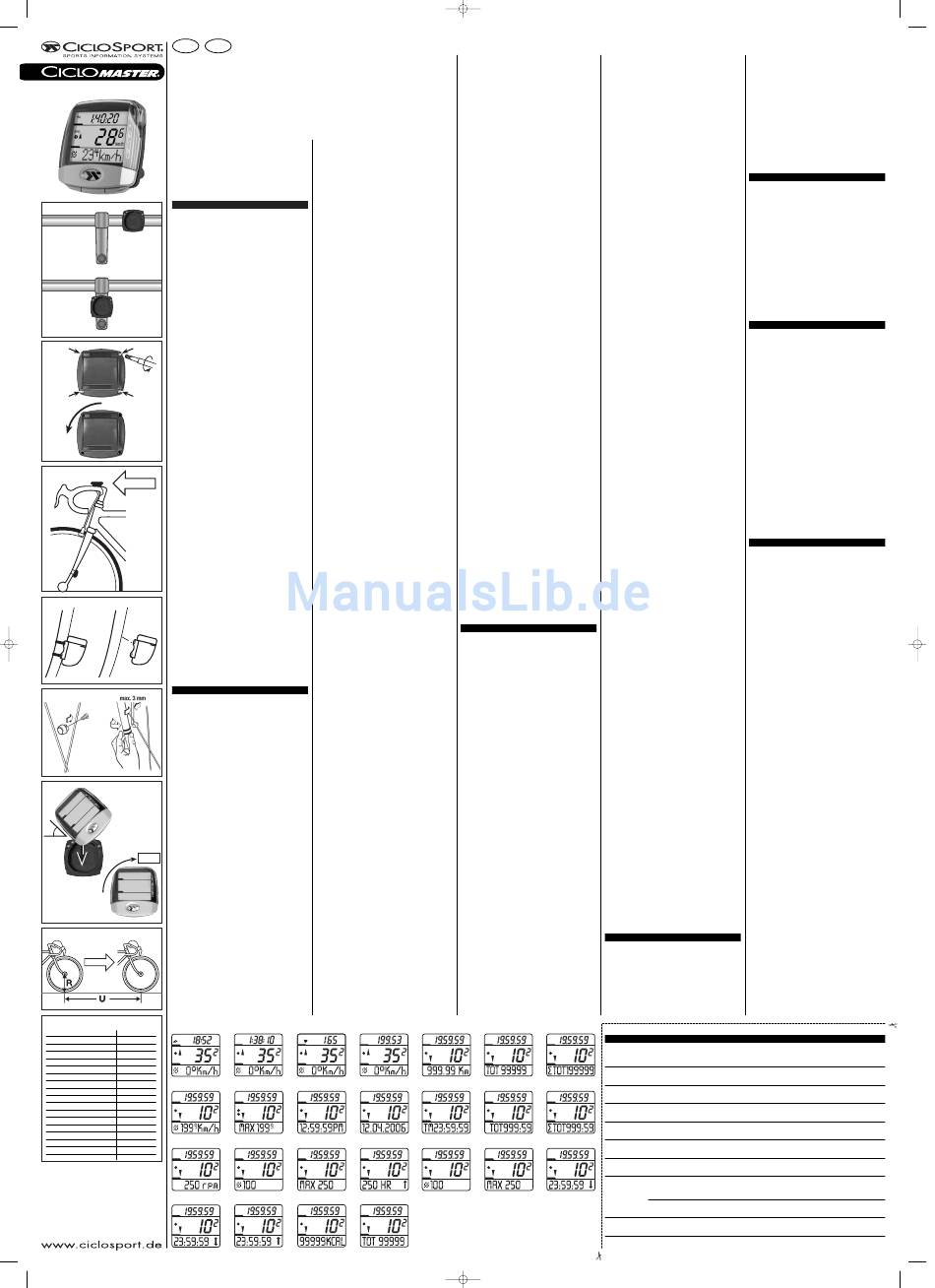

1. Mounting
A
A-1
The handlebar bracket can be mounted on the handlebar and
also on the stem.
Picture A: Mounting is possible on handlebar (Position A-1) or
stem (Position A-2).
Picture B: For using it on the stem, change bracket mounting
orientation from Position A to Position B.
Remove the protective tape.
A-2
Place the handle bar and fasten it with the cable ties.
Picture C: Mount the transmitter with cable ties on the fork
(max. distance to the handlebar bracket max. 60 cm; best
mounting on the right side, handlebar bracket and transmitter
should be on the same side).
Picture D: Fix the magnet on a spoke so that it will face the
mark on the transmitter. Adjust the magnet position and fine tune
the sensor if necessary (distance between transmitter and
magnet max. 3 mm).
Picture E: Rotate the CM 4.2 to 45 degree left and install it into
B
the bracket. Then rotate it 45 degrees right to lock it. To unlock,
rotate 45 degrees to the left.
1.1 Mounting of optional cadence-set
(separately available)
Mount the handlebar as described above on the handlebar or on
the stem.
Place the sensor on the cable on the left chain-brace in height of
the crank with help of cable-ties so that it is still loose enough to
be lined up. Mount the cadence-magnet (with help of a cable tie)
on the inside of the crank. The distance between magnet and
sensor should be max. 3 mm.
The magnets must point directly to the mark on the sensor. Now
90°
switch on the cadence measuring in the setting mode of the
CM 4.2 (see chap. 2.1). Turn crank a few times to check if the
mounting is correct. Now tighten the cable-ties.
1.2 Putting on the heart rate transmission belt
Warning: whoever carries out sport should have a general
medical check up on his/her general state of health - especially
beginners, persons older than 35 years of age and anyone who
has suffered from illnesses or injuries in the past. It is recom-
mended that a doctor be consulted in any case in the presence
of risk factors, such as smoking, high blood pressure, high
cholesterol values, diabetes, lack of exercise and excess weight.
Pacemaker wearers should consult their doctor before
using any heart rate measurement device!
The transmitter belt is hung in the elastic chest belt and fastened
around the upper body. The transmitter (plastic part with the
Ciclo-logo) should lie over the middle of the upper stomach,
immediately below the breastbone, so that the logo on the
transmitter is legible (viewed from the front) (see illustration). The
electrodes in the belt, to the right and left of the transmitter, must
be in contact with the skin.
Pull the belt tight so that it cannot slip and constant contact with
C
the body is guaranteed during movement.
If the CM 4.2 fails to display any heart rate, it probably means
that there is no contact between the skin and the electrodes.
Moistening the electrodes and the underlying skin often helps.
Best results are obtained if electrode gel is used (available from
pharmacies).
Measurement of the heart rate is only possible if the transmitter
belt is fitted correctly and the CM 4.2 is within the transmitter's
reception range (max. 60 cm).
2. Preparation
D
Inserting the battery
Insert battery type CR2032 with plus-pole facing up. Close
battery cap with a coin, being sure not to over tighten. After
inserting the battery the display will show normal mode.
(If nothing or incomprehensible signs appear in the display, press
the AC-button on the rear of the computer with help of a ballpoint
pen or a similar object. Attention: this will delete all values and
setting).
2.1 Settings
Enter setting mode by pressing middle button for 3
E
seconds. Display shows 'SET BIKE1'.
To quit setting mode press again middle button for 3 seconds in
any setting.
(To change the display to german language, press left button
45°
short, display shows ‚LANGUAGE'. Press middle button to choose
this function and then switch between 'English' and 'Deutsch'
with right button. To store press left button and then get back to
setting mode with short pressing of right button).
KLICK!
Though CM 4.2 can show german and english words, this
manual shows both possible displays.
The different setting modes can be shown by pressing
right or left button, by pressing middle button the shown
setting mode is chosen.
Possible setting modes:
SET BIKE1 / SET RAD1
SET CLOCK / SET UHR
F
SET HR / SET HF
SET MISC
EXIT / ENDE
LANGUAGE / SPRACHE
Each setting mode can have different setting possibilities.
The following is valid for these settings: the blinking
value can be changed with the right button, the value is
stored by shortly pressing the left button and the next
value blinks or the next value appears on the display.
G
1
Tire size
Circumference
40-559
26 x 1,5
2026 mm
44-559
26 x 1,6
2051 mm
SPD
47-559
26 x 1,75
2070 mm
1
50-559
26 x 1,9
2026 mm
54-559
26 x 2,00
2089 mm
57-559
26 x 2,125
2114 mm
37-590
26 x 1 3/8
2133 mm
8
32-620
27 x 1 1/4
2199 mm
TM
40-622
28 x 1,5
2224 mm
47-622
28 x 1,75
2268 mm
SPD
1
40-635
28 x 1 1/2
2265 mm
37-622
28 x 1 3/8
2205 mm
20-622
700 x 20C
2114 mm
23-622
700 x 23C
2133 mm
25-622
700 x 25C
2146 mm
15
28-622
700 x 28C
2149 mm
TM
32-622
700 x 32C
2174 mm
SPD
1
22
TM
SPD
1
Seite 2
USA
OPERATING MANUAL
For a better reading in the following chapters the setting modes
are fat printed and the settings fat and italic.
SET BIKE1 / SET RAD1
Adjustment of bike-specific values, e.g. total distance, circum-
ference, unit and more for bike 1.
Choose with middle button.
To do these settings for bike 2, press right and left button short
simultaneously in normal mode. CM 4.2 switches to bike 2, then
enter again setting mode (display then shows SET BIKE2/SET
RAD2).
DAY DST / TAGES-DST
Adjustment of the daily distance
Default: 000.00 km
Range: 000,00 to 999,99 km or m
Set with right and left button, store with left button.
Here the daily distance can be adjusted, e.g. the point of starting
a tour, when using a printed tour-guide.
(This setting doesn't change the total distance. There only really
ridden kilometres are counted).
TOT DST / GES. DST
Adjustment of the total distance
Default: 0000 km
Range: 0 to 99999 km or m.
Set with right and left button, store with left button.
Here the total distance can be adjusted.
Wheel/Radumf.
Adjustment of circumference
Default: 2080 mm
Range: 0000-3999 mm
Set with right and left button, store with left button.
Here the circumference can be adjusted.
The circumference of the wheel can be taken from the
chart (Pict. G) or be measured by yourself.
Measuring the circumference of the
wheel (for a more precise setting):
Put a marking at the front-tire and on the
ground (e.g. with chalk). Ride straight
ahead exactly one turn of a tire (for a very
exact measurement, check the pressure of the tire before getting
on your bike) and mark this position on the ground. Now measure
the exact circumference of the wheel between the two markings
at the ground (in mm) – see pict. F.
Unit km bzw. Unit mi
Adjustment of the measuring unit (kilometres or miles)
Default: km
Set with right button, store with left button
Here you can choose whether the display should show kilometres
(km/h) or miles (m/h).
CAD OFF/TRITT AUS
Switch cadence on/off (ON/AN – OFF/AUS)
Default: OFF/AUS
Set with right button, store with left button
Here you can switch on/off the cadence measuring. To use this
function you need the optional cadence-set (available at your
local dealer).
SET CLOCK / SET UHR
Adjustment of clock, date and clocktime-format.
Choose with middle button
Time / Uhrzeit
Adjustment of clock
Range: 00:00 to 23:59 or 12:00 to 11:59 A/P
Set with right and left button, store with left button
Here you can set the current clocktime. First you set the hours,
then the minutes.
Year / Jahr
Adjustment of the year
Default: 2007
Range: 2007 to 2099
Set with right button, store with left button
Here you can set the current year.
Month / Monat
Adjustment of the month
Default: 01
Range: 01 to 12
Set with right button, store with left button
Here you can set the current month.
Day / Tag
Adjustment of the day
Default: 01
Range: 01 to 31
Set with right button, store with left button
Here you can set the current day.
Clock / Zeit
Adjustment of the clock format
Default: 24
Set with right button, store with left button
Here you can select between 24- or 12-hour format (AM/PM).
SET HR / SET HF
Adjustments for the optional heart rate measurement. To use this
function you need the optional heart rate-set (available at your
local dealer).
HR OFF/ON / HF EIN/AUS
Switch heart rate on/off (ON/AN – OFF/AUS)
Default: OFF/AUS
Set with right button, store with left button
Here you can switch on/off the heart rate measuring.
Fitness / Fitness
Adjustment of the fitness level.
Default: 3
Set with right button, store with left button.
Range 1-4, corresponding to the following levels:
1 – poor fitness
2 – average fitness
3 – good fitness
4 – high fitness
Here you set your personal fitness level, necessary for the
CICLOInZone-calculation.
2
3
4
TM
DST
DST
SPD
SPD
SPD
1
1
1
km/h
km/h
km/h
9
10
11
TM
TM
TM
SPD
SPD
SPD
1
1
1
2
km/h
km/h
km/h
16
17
18
TM
TM
TM
SPD
SPD
SPD
1
1
1
km/h
km/h
km/h
23
24
25
TM
TM
TM
SPD
SPD
SPD
1
1
1
km/h
km/h
km/h
Sex / Geschlecht
Set with right button, store with left button.
Change between
m = male and f = female.
The sex is needed for the CICLOInZone-calculation and the
calorie consumption.
Weight / Gewicht
Range: 20 to 220 kg
Set with right and left button, store with left button
The weight is needed for the CICLOInZone-calculation and the
calorie consumption.
Birthdate /Gebjahr
Adjust with right and left button, store with left button
Default: 1960
Range: 1920 to 2006
The year of birth is necessary for the CICLOInZone-calculation.
InZone
Here you can start the CICLOInZone-calculation by short pressing
of right and left button simultaneously (see also chap. 4 for
CICLOInZone).
In order to ignore the calculation, just press short left button.
In order to obtain an exact calculation of ones personal
CICLOInZone it is necessary to insert the personal data relative to
fitness-level, sex, weight and birthdate.
In order to calculate the CICLOInZone position the chest belt
correctly, take up a rest position (remain seated and relaxed) and
start the CICLOInZone calculation by short pressing of right and
left button simultaneously.
The CM 4.2 will then start to time 5 minutes. During this time,
stay seated, relaxed and calm, as the CM 4.2 will measure the
minimum heart rate reached during this period (heart rate at rest)
and will store this value for the subsequent calculation.
After the 5 minutes the lower value of the calculated personal
CICLOInZone appears in the display.
Lower HR / untere HF
A lower heart rate limit can be set here or (after CICLOInZone-
calculation) the calculated value is shown.
When the current heart rate is lower than this value, the CM 4.2
shows an arrow (▼) as an optical alarm.
Range: 0 to 220 bpm
Adjust with right and left button, store with left button
Upper HR / obere HF
An upper heart rate limit can be set here or (after CICLOInZone-
calculation) the calculated value is shown.
When the current heart rate is higher than this value, the CM 4.2
shows an arrow (▲) as an optical alarm.
Range: 0 to 240 bpm
Adjust with right and left button, store with left button
Max HR / Max HF
Shows the maximum heart rate, calculated with CICLOInZone.
Range: 0 to 240 bpm
Adjust with right and left button, store with left button
SET MISC
Here you can switch on the powerdown-mode or make a reset
(delete all values).
Choose with middle button
Powerdown / STROMSPAR
Switch on the powerdown-mode (e.g. before changing of the
battery, to save the values).
To switch it on, press right and left button short simultaneously,
display fades out and CM 4.2 is in powerdown-mode. By short
pressing of any button, CM 4.2 starts again and shows normal
mode.
Reset / Löschen
Here you can delete all values (including the total values). For this
press right and left button short simultaneously, display shows
'reset' and then normal mode.
If you only want to delete the day values, press right and left
button for three seconds in normal mode.
3. Functions
The CM 4.2 has an automatic start/stop when on the handlebar
bracket.
That means, 4 sec. after the first wheel turn the display shows
normal mode and the current speed.
1 minute after the last wheel turn (and without a button is
pressed) the display changes to an "energy save" mode. During
this mode, only the time is displayed.
If the wheel turns or a button is pushed, the computer will
resume normal functions.
The optional heart rate measuring works also without speed
signal: when CM 4.2 is in normal mode (by pressing any button
or auto-start), the heart rate receiver is automatically switched
on.
And as long as a heart rate is shown in the display, there is no
automatically switching to sleep mode.
To change from bike 1 to bike 2 (and back) press right and left
button short simultaneously (in the left part of the display the 1
changes to 2 and back).
To reset all day values, press right and left button for
three seconds.
The CM 4.2 has a three-lined display. In the middle part always
the current speed is shown, with a small 1 or 2 left beside, that
shows whether the current values are valid for bike 1 or bike 2.
To advance the functions of the upper display, press right
button, to advance the functions of the lower display press
left button.
Always short pressing of the middle button shows the sub-
functions of the function in the lower display.
Functions in the upper display:
TM – Daily ride-time (pict. 2)
Heartrate – if switched on (pict. 3)
DST – Daily distance (pict. 4)
Time (pict. 1)
(Explanation of these functions see ‚functions in the lower
display')
Function in the middle display:
SPD – current speed
Inidcates the current speed in km/h or m/h .
Range: 0 to 199,9 km/h or m/h
An arrow on the left side of the display indicates, whether the
current speed is faster (arrow up) or slower (arrow down) than
the current average speed.
5
6
7
TM
TM
TM
SPD
SPD
SPD
1
1
1
km/h
km/h
km/h
12
13
14
TM
TM
TM
SPD
SPD
SPD
1
1
1
km/h
km/h
km/h
19
20
21
TM
TM
TM
SPD
SPD
SPD
1
1
1
km/h
km/h
km/h
km/h
Functions in the lower display:
to follow in their training. But how do you train to achieve those
aims in the most efficient possible manner? How do you find the
DST - daily distance (pict. 5)
right intensity of effort during the training? CICLOInZone
Indicates the distance ridden up to now in kilometres or miles..
optimum training ZONE for effort, resistance and weight loss.
Range: 0 to 999,99 km or mi
What does CICLOInZone
TOT - Gesamtdistanz (pict. 6)
It calculates the optimum training zone for effort, resistance and
Sub-function of function daily distance
weight loss.
Indicates the total distance ridden up to now in kilometres or
The values vary from person to person and they offer a valid
miles (since last reset or battery change).
training support – always staying between 70 % and 85 % of the
Range: 0 to 99999 km or mi
maximum heart rate.
(+/- 5% of tolerance, taking into consideration the actual heart
∑TOT - sum of total distance of bike 1 and bike 2 (pict. 7)
rate when at rest and the level of training).
Sub-function of function daily distance
Indicates the sum of the total distance ridden up to now in
The question of burning fat is seen in the "correct" light with
kilometres or miles (since last reset or battery change) of bike 1
CICLOInZone
and bike 2.
Range: 0 to 199999 km or mi
5 . Battery change
Ø - average speed (pict. 8)
CM 4.2: Open battery cap with a coin (unscrew to the left). Insert
Indicates the current average speed in km/h or mi/h.
battery type CR2032 (please use battery with smooth minus-
Range: 0 to 199,9 km/h or m/h (the decimal place is high-
pole) with plus-pole facing up. Close battery cap, being sure not
ranking)
to over tighten. After inserting the battery the display will show
normal mode.
MAX - maximum speed (pict. 9)
If nothing or incomprehensible signs appear in the display, press
Sub-function of function average speed
the AC-button on the rear of the computer with help of a ballpoint
Indicates the highest speed ridden up to now in km/h or mi/h.
pen or a similar object. Attention: this will delete all values and
Range: 0 to 199,9 km/h or m/h (the decimal place is high-
setting.
ranking)
(Battery change in the optional chest belt works in the same
way.)
Time (pict. 10)
Indicates the current time.
Transmitter: Open battery cap at the top of the transmitter with
Range: 00:00:00 to 23:59:59 or 12:00:00 to 11:59:59 AM/PM
a coin (unscrew to the left), remove old battery and insert new
12 V battery, type 23A (with pluspole facing up). Close battery
Date (pict. 11)
cap, being sure not to over tighten.
Sub-function of function time
Indicates the current date (dd.mm.yy).
Please do not throw away battery in your normal garbage.
TM - daily ride time (pict. 12)
6. Trouble shooting
Indicates the current daily ride time.
Range: 0 to 9:59:59 h
Faulty or no display
- check to see if battery is installed properly or replace battery
TOT - total ride-time (pict. 13)
(Attention: removing battery will clear all settings and values in
Sub-function of function daily ride time
the CM 4.2)
Indicates the total ride time (since last reset or battery change).
- press AC-button on the rear of the computer
Range: 0 to 999:59 h
Speed not displayed
∑TOT - sum of total ride time of bike 1 and bike 2
- check to see if wheel-sensor is mounted properly
(pict. 14)
- check the position of the spoke magnet (max. 3 mm distance
Sub-function of function daily ride time
to wheel-sensor)
Indicates the sum of the total ride time (since last reset or battery
- make sure CM 4.2 is mounted in bracket correctly
change) of bike 1 and bike 2.
- check wheel circumference
Range: 0 to 999:59 h
Speed to high or to low
The following function only appears, if switched on in the
- check wheel circumference
setting mode (for the measuring of the cadence you need the
- check to see if you are using miles or kilometers
separately available cadence set).
No heart rate displayed or values displayed are incorrect or
CAD - cadence (pict. 15)
unstable
Indicates the current cadence (rpm = rounds per minute)
- proof whether heart rate is switched on in setting mode
Range: 0 to 250 rpm
- Check transmitter belt (battery)
- Skin too dry or cold
Ø - average cadence (pict. 16)
- Distance between CM 4.2 and transmitter belt is too great
Sub-function of function cadence
(max. 60 cm)
Indicates the average cadence.
Range: 0 to 250 rpm
Cadence is not displayed or value incorrect or unstable
- Check whether switched on in setting mode
MAX - maximum cadence (pict. 17)
- Check sensor and magnet for correct installation
Sub-function of function cadence
Indicates the maximum reached cadence.
7. Guarantee
Range: 0 to 250 rpm
We offer a guarantee for 24 months from the date of purchase
The following functions (heart rate and calorie consumption) only
on the CM 4.2. The guarantee is limited to material and proces-
appear, if heart rate is switched on in the setting mode (for the
sing faults. The batteries are excluded from the guarantee.
measuring of heart rate you need the separately available heart
rate-set).
The guarantee is valid only if the computer, with accessories, has
been handled and maintained carefully and according to opera-
HR - heart rate (pict.18)
ting instructions.
Indicates the current heart rate (bpm = beats per minute)
Range: 0 to 250 bpm
To return the CM 4.2 under conditions/terms of the guarantee,
On the right side of the lower display an arrow shows, whether
please refer to your dealer, your local distributor or send the
the current heart rate is below (▼), within (▼▲) or above (▲)
computer with the proof of purchase (date) and all accessories
and with sufficient postage, to:
the set heart rate limits.
Ø - average heart rate (Bild 19)
CICLO SPORT SERVICE
Sub-function of heart rate function
K. W. Hochschorner GmbH
Indicates the average heart rate (since last reset).
Konrad-Zuse-Bogen 8
Range: 0 to 240 bpm
D-82152 Krailling
Telefon: +49 89 / 89 52 70 31
MAX - maximum heart rate (Bild 20)
Telefax: +49 89 / 8 59 63 01
Sub-function of heart rate function
Indicates the maximum heart rate reached (since last reset).
E-Mail:
Range: 0 to 240 bpm
Please read through the operating manual again carefully before
Training time below the lower limit set for heart rate
sending in the device and check the battery.
In case of valid guarantee claims, the repaired device or a
(pict. 21)
replacement device will be returned free of charge.
Sub-function of the heart rate measurement function.
Displays the training time during which heart rate dropped below
the lower limit set.
Repair:
(since last reset).
If your CM 4.2 is sent in for repair (or battery change) or if a
Range: 0 to 9:59:59 h
guarantee claim is not valid, repairs up to EUR 20.- will be
carried out automatically.
Training time within the limits set for heart rate (pict. 22)
In case of higher repair costs you will be notified. The repaired
Sub-function of the heart rate function.
Indicates the training time during which heart rate was within the
device will be sent back COD.
limits set (since last reset).
Range: 0 to 9:59:59 h
Training time above the upper limit set for heart rate
(pict. 23)
Sub-function of heart rate function.
Indicates the training time during which heart rate exceeded the
upper limit set (since last reset).
Range: 0 to 9:59:59 h
kCal - Calorie consumption (pict. 24)
Indicates the current calorie consumption (since last reset).
Range: 0 to 99999 kCal
TOT - total calorie consumption (pict. 25)
Sub-function of calorie consumption function
Indicates the total calorie consumption (since last reset or
battery change)
Range: 0 to 99999 kCal
4. CICLOInZone
-Philosophie und Anwendung
®
CICLOInZone
is a solution for the very best personalisation of
®
your training routine.
It is possible to calculate the optimum training threshold with the
CICLOInZone
function on the basis of your personal data and
®
your pulse rate when at rest.
CICLOInZone
is the ideal solution for personalised cardio
®
training applied to any sport, from jogging and cross-country
running to road and indoor cycling.
Improve your fitness? – Lose weight? – Train whilst always taking
your health into consideration? Everyone will find the correct aim
Guarantee certificate:
Sender:
km/h
Name
irst name
Street, No.
km/h
Code/Location
Telephone (during the day)
Fax
km/h
E-Mail
Reason for return:
After expiry of the guarantee: Repairs should be carried out up to a value of Euro ____________
is the
®
do?
®
– on the basis of the personal data collected.
®
ciclo-service@ciclosport.de
Werbung
