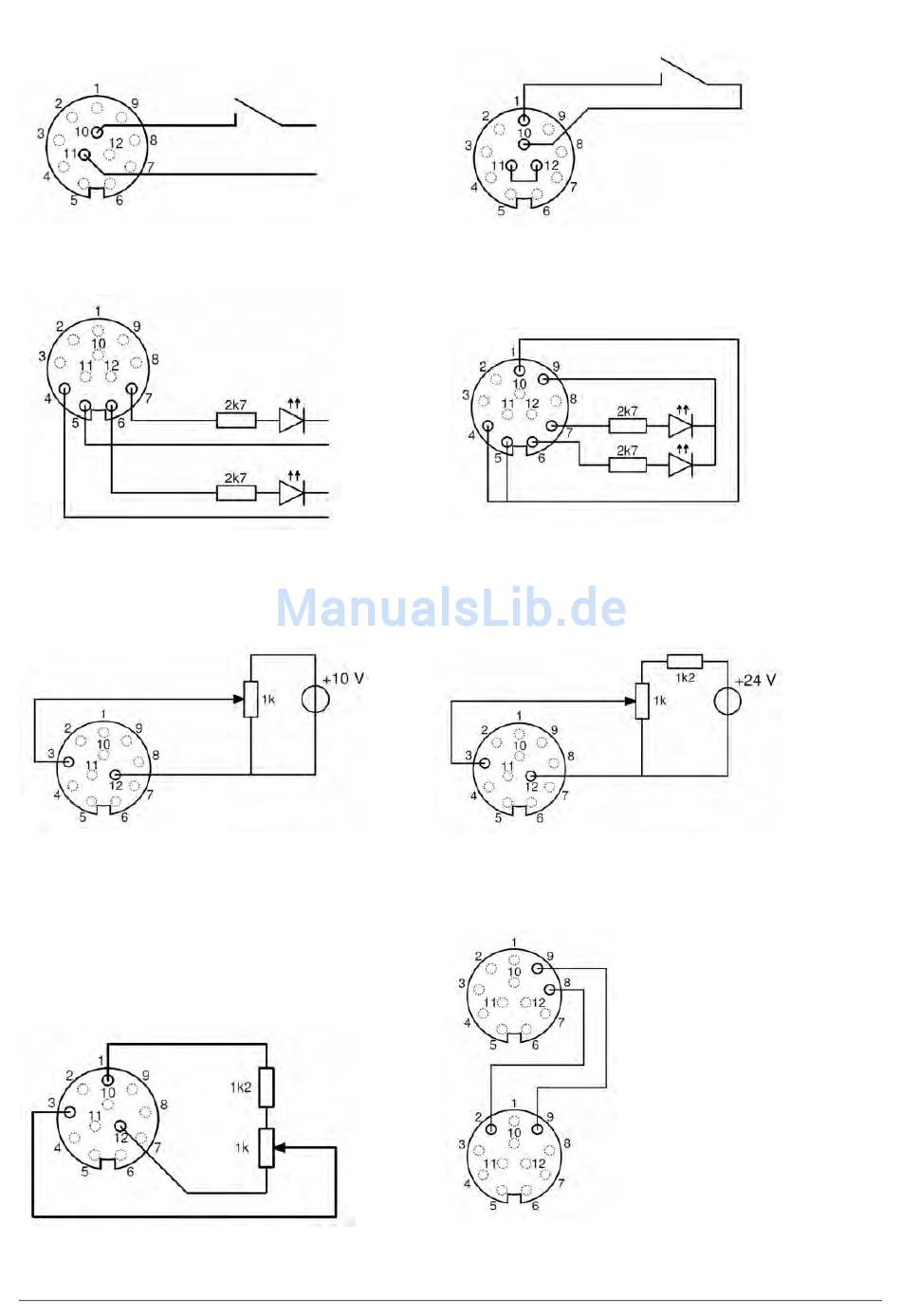

Figure 3: remote high voltage on/off with
external power source
Figure 5: overload & High voltage ON
indicators with external power source
Figure 7: ion balance control with external
10 V DC power source
Figure 9: ion balance control with internal
24 V DC power source
MPM_UM_9752080610_NL_D_GB_F_V3_2
closed =
high voltage on
+24 V DC
0 V
0 V
max. 30 V DC
0 V
max. 30 V DC
Figure 4: remote high voltage on/off
with internal power source
Figure 6: overload & High voltage ON
indicators with internal power source
Figure 8: ion balance control with external
24 V DC power source
Figure 10: biphase control
closed =
high voltage on
MPM 2 = Slave
Dipswitch 3 = On
MPM 1 = Master
Dipswitch 3 = Off
