Assembly

When installing the sauna stove, ensure
that the vertical distance between the top
edge of the sauna stove and the ceiling of
the sauna cabin is at least 115 cm and that
the horizontal distance between the stove
and the wall of the cabin is at least 10 cm.
The distance between the bottom edge of
the stove and the fl oor is fi xed by the ven-
tilation shaft, which also serves as a base
mounting for the stove, and is 9.5 cm. The
sauna stove may only be used together with
the ventilation shaft and may not be installed
in a niche.
Power
suitable
for cabin
in kW
size in m³
4,0 ca. 3,5 -5,0
6,0 ca. 6,0 - 7,5

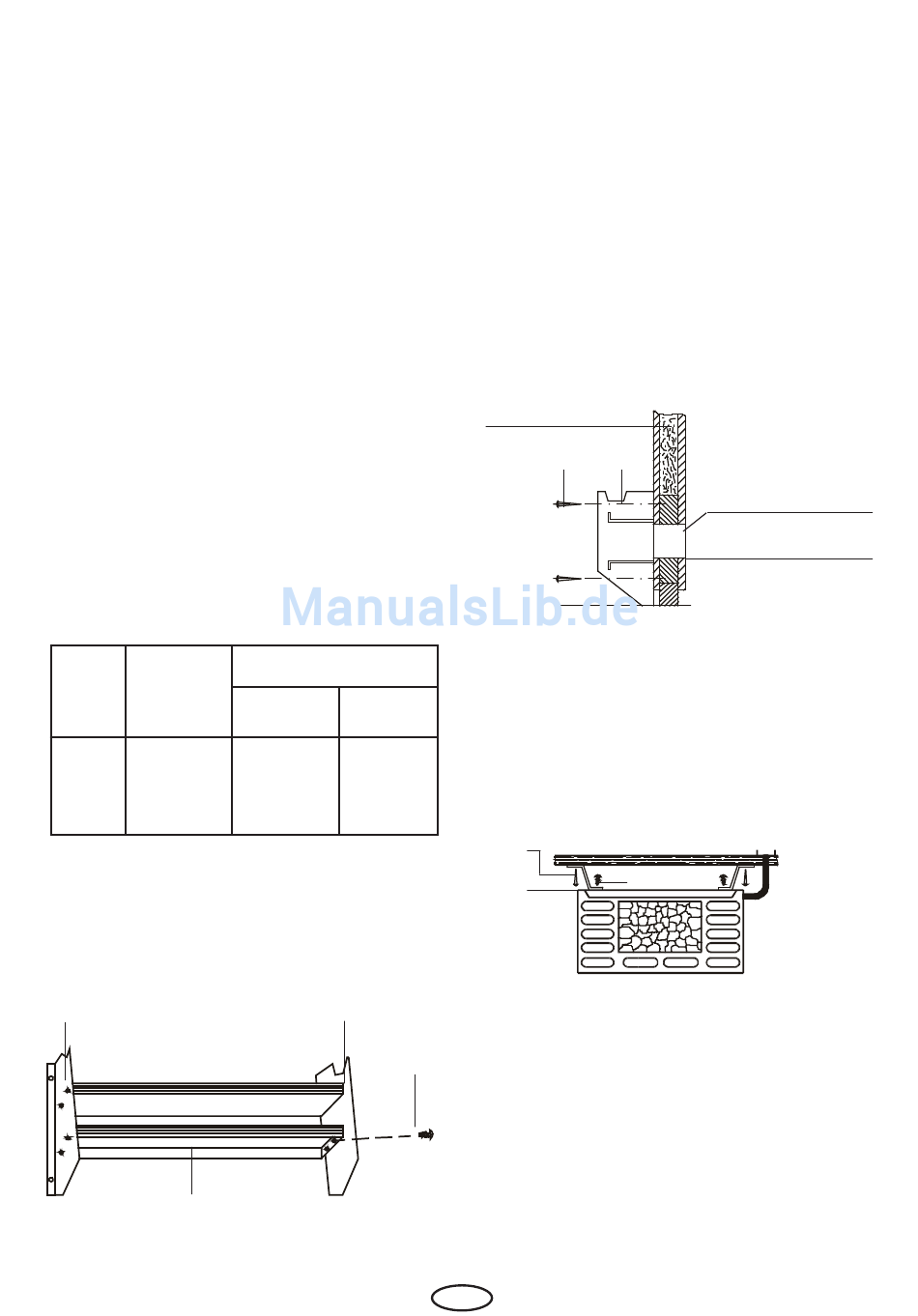

Screw the side part „A" to the connecting
panel „B" with the panel screws „C" as
shown in fi gure 1.
A
B
Minimum connecting cable
cross section in mm²
Connection to Fuse in A
3 N AC 400 V
5 x 2,5 16
5 x 2,5 16
A
C
Fig. 1

Assembly of the stove

Hold the assembled ventilation shaft, which
also serves as the stove's lower support,
over the cabin wall ventilation opening so
that it is covered (fi g. 2). Mark the screw ho-
les and drill them using a bit with a maximum
size of 3 mm. Screw the ventilation shaft to
the cabin wall with the wood screws „E".
Cabin wall
E
H
Screw the angle bracket „E" to the back of
the oven using the screws „G" as shown in
fi gure 3.
F
E
Fit the sauna stove with the rear wall in
the groove „H" of the ventilation shaft side
parts. Draw the screw holes for the angle
bracket on the cabin wall. Drill screw holes
using a bit with a maximum size of 3 mm
and screw the angle bracket to the cabin
wall using the
GB
Air inlet opening
Width as ventilation
shaft = 400 mm
G
Fig. 2
Fig. 3
