1
02/05
P/N 21199607
© COPYRIGHT 2002 by HUFFY SPORTS

Werbung

loading

Verwandte Anleitungen für Huffy N1-107

Inhaltszusammenfassung für Huffy N1-107

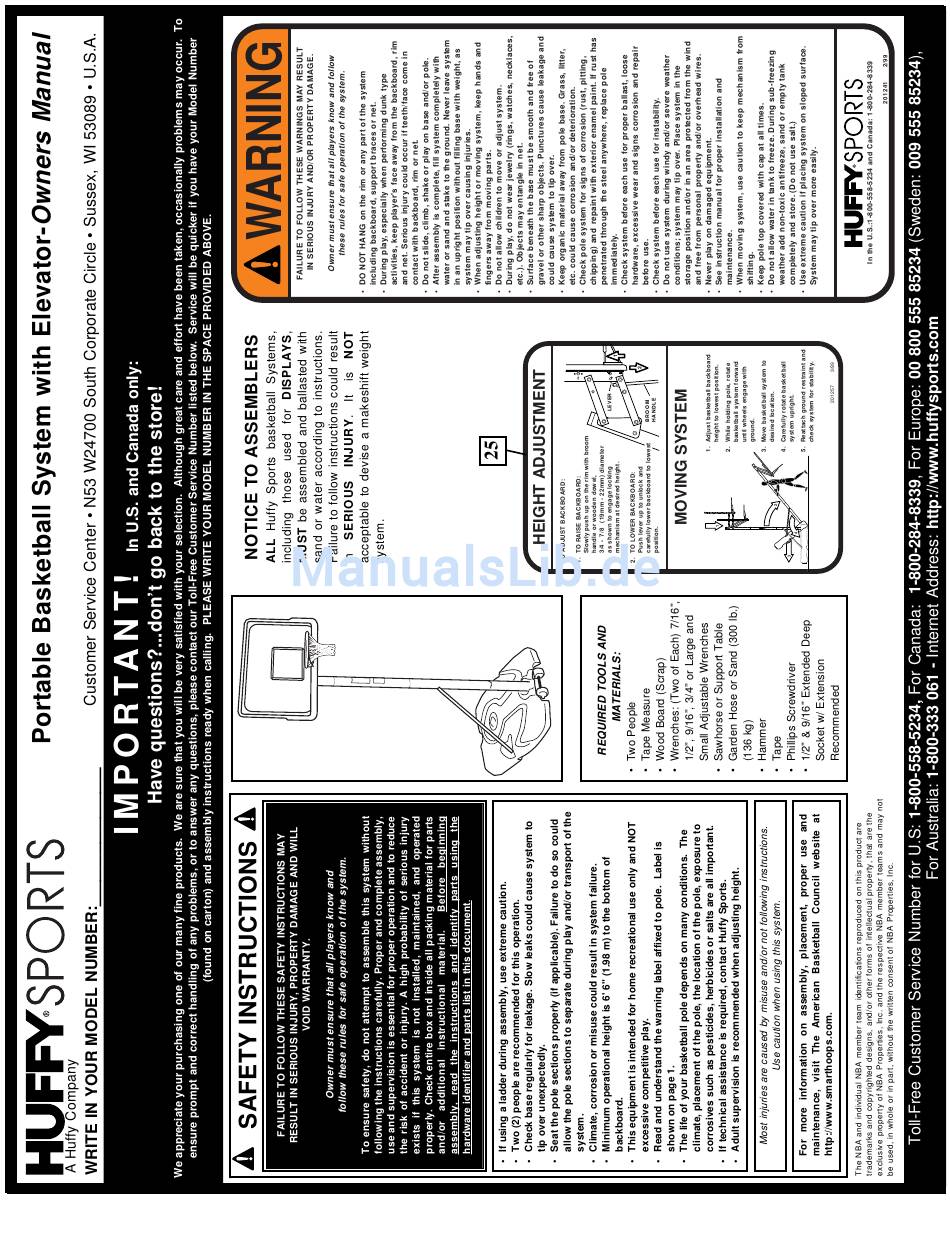

  • Seite 1 02/05 P/N 21199607 © COPYRIGHT 2002 by HUFFY SPORTS...
  • Seite 2 BEFORE YOU START! To ensure optimal playability of backboard system, a close tolerance fit between the elevator components and hardware is required. Test fit large bolts into large holes of elevator tubes, backboard brackets and triangle plates. Carefully rock them in a circular motion to ream out any excess paint from holes if necessary.
  • Seite 3 HARDWARE IDENTIFIER (BOLTS & PINS) Item #43 (5) Item #11 (1) Item #34 (1) Item #35 (3) Item #8 (1) Item #15 (6) Item #36 (1) HARDWARE IDENTIFIER (NUTS & WASHERS) Item #39 (5) Item #12 (6) Item #16 (6) Item #9 (4) Item #38 (1) Item #18 (2)
  • Seite 4 HARDWARE IDENTIFIER (STEEL SPACERS & RODS) Item #7 (1) Item #33 (2) Item #45 (1) HARDWARE IDENTIFIER (PLASTIC SPACERS & CLIPS) Item #20 (12) Item #42 (4) Item #37 (1) Item #17 (4) HARDWARE IDENTIFIER (OTHER) Item #32 (1) Item #31 (1) Item #30 (1) P/N 21199607 02/05...
  • Seite 5 INSTRUCTIONS WARNING: TWO PERSON MINIMUM REQUIRED FOR THIS IMPORTANT! WRITE MODEL NUMBER FROM BOX ONTO PAGE 1 OF PROCEDURE. NOT FOLLOWING RECOMMENDATION MAY THIS OWNERS MANUAL RESULT IN BODILY INJURY. Support pole on sawhorse. Attach upper and lower elevator tubes (44) to upper pole section (4) using bolts (43) and nuts (39) as shown.
  • Seite 6 PARTS LIST - See Hardware Identifier Item Qty. Part No. Description Item Qty. Part No. Description 206657 Tank, (Black) 203472 Spring, Black, Slam Jam 200628 Wheel Axle 200318 Bracket, Reinforcement, Slam Jam 226401 Wheel, 4“ (Black) 900033 Bracket Slam Jam 90021701 Top Pole Section 200874 Spacer .402 I.D.
  • Seite 7 IMPORTANT! WRITE MODEL NUMBER FROM BOX ONTO PAGE 1 OF THIS OWNERS MANUAL TOP POLE 35” MIDDLE POLE 43” BOTTOM POLE 43” IMPORTANT! (See Text Page) IMPORTANT! Note (See Text Page) (See Text Page) Note (See Text Page) WOOD SCRAP WOOD SCRAP 02/05 P/N 21199607...
  • Seite 8 IMPORTANT! (See Text Page) Note (See Text Page) Note (See Text Page) P/N 21199607 02/05...
  • Seite 9 Item #9 02/05 P/N 21199607...
  • Seite 10 Item #9 TOWARD TOWARD BOARD POLE P/N 21199607 02/05...
  • Seite 11 02/05 P/N 21199607...
  • Seite 12 TOWARD TOWARD BOARD POLE P/N 21199607 02/05...
  • Seite 13 02/05 P/N 21199607...
  • Seite 14 Install net clips. Installez les pinces du filet. Netzhalteklammern anbringen. Instale los sujetadores de la red. WARNING: Use of this product without proper installation of net clips, or when all net clips are not present could result in bodily harm. Be sure to follow directions carefully. CLIP “ARM”...
  • Seite 15 Install net. SIDE VIEW VUE DE CÔTÉ Installez le filet. SEITENANSICHT VISTA LATERAL NETCLIP Das Netz anbringen PINCE DE FILET NETZHALTEKLAMMER Instale la red. SUJETADOR DE LA RED FILET NETZ Insert net into bottom of clip as shown. Insérez le filet dans la base de la pince, comme illustré. Das Netz wie gezeigt unten in den Clip stecken.

  • Seite 16: Height Adjustment

    WARNING SEE TEXT PAGE IMPORTANT! (See Text Page) HEIGHT ADJUSTMENT TO ADJUST BACKBOARD: 1. TO RAISE BACKBOARD: Slowly push up on the rim with broom handle or wooden dowel, 3/4 - 7/8 (19mm - 22mm) diameter as shown to engage locking LEVER mechanism at desired height.
