i. Basic Settings
Throttle range setting
(throttle range calibration)
In order to make the ESC fit the throttle range of your transmitter, you
must calibrate it for the following cases; otherwise the ESC cannot work
properly.
There need to be set 3 points. They are the end point of "forward", the
end point of "backward" and the neutral point.
The following pictures show how to set the throttle range with your
transmitter.
Note 1

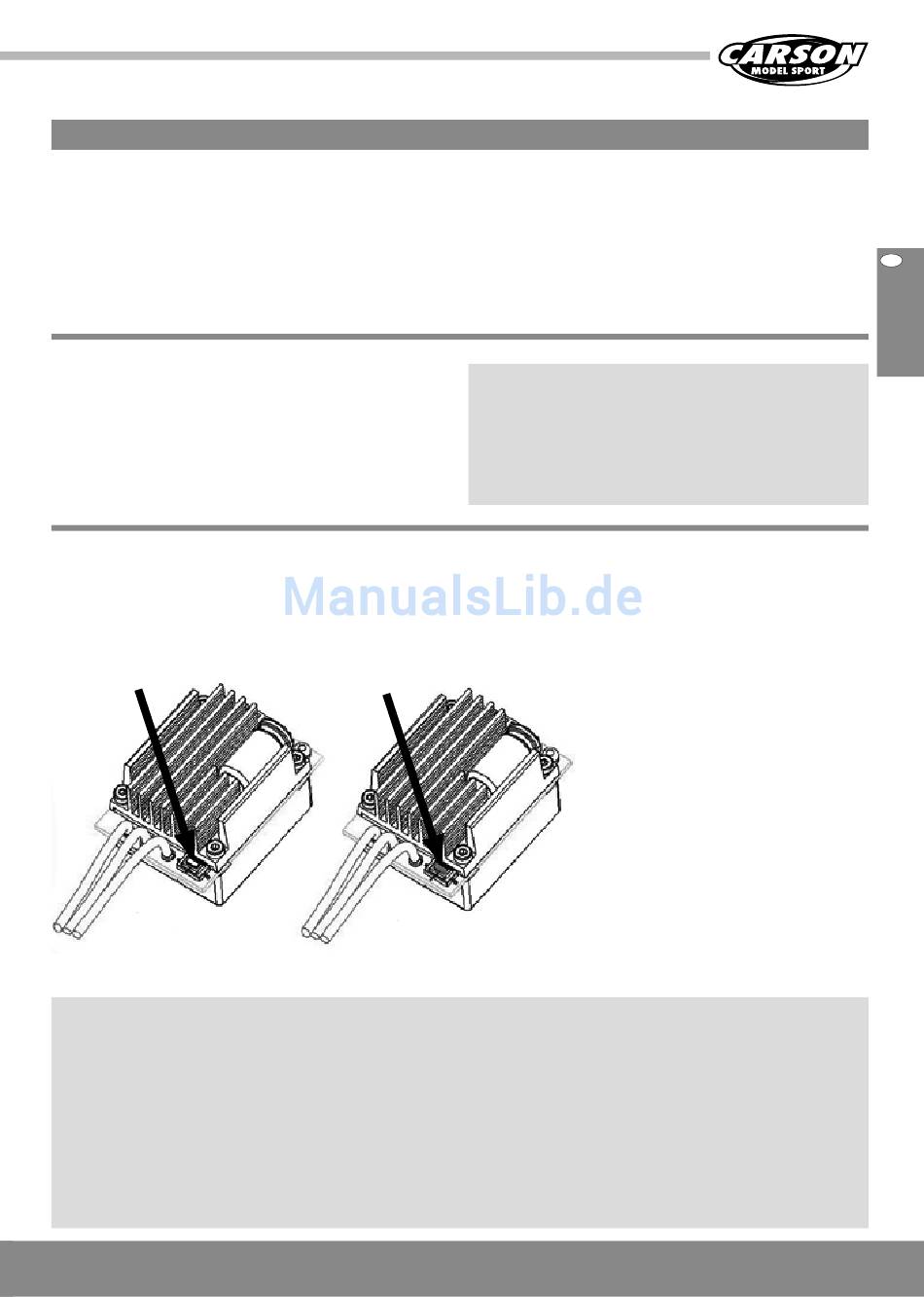

The "SET" key of ESC is at the power switch (see picture).
Press and hold
Hold SET key
Release SET button once the red LED starts to flash.
C) Set the 3 points according to the steps.
1. The neutral point
Move the throttle lever at the neutral point, and then click the SET
key. The green LED flashes
1 time.
2. The end point of forward
direction
Move the throttle lever at the end point of forward direction, and
then click the SET key, the green LED flashes 2 times.
1) Begin to use a new ESC
2) Begin to use a new transmitter
3) Change the settings of neutral position of the throttle lever, the ATV
or EPA parameters, etc.
A) Switch off the ESC and turn on the
transmitter.
B) Hold the "SETUP"-key of the ESC and then
switch on the ESC. Release the "SETUP" key
as soon as the red LED begins to flash.
Note 2
If you don't release the "SET" key as soon as the red LED begins to flash,
the ESC will enter the program mode. In such case, please switch off
the ESC and re-calibrate the throttle range again as described.
Hold
Switch on ESC
3. The end point of backward
direction
Move the throttle lever at the end point of
backward direction, and then click the SET key, the green LED flashes
3 times.
The throttle range is calibrated; the motor can be started after 3
seconds.
