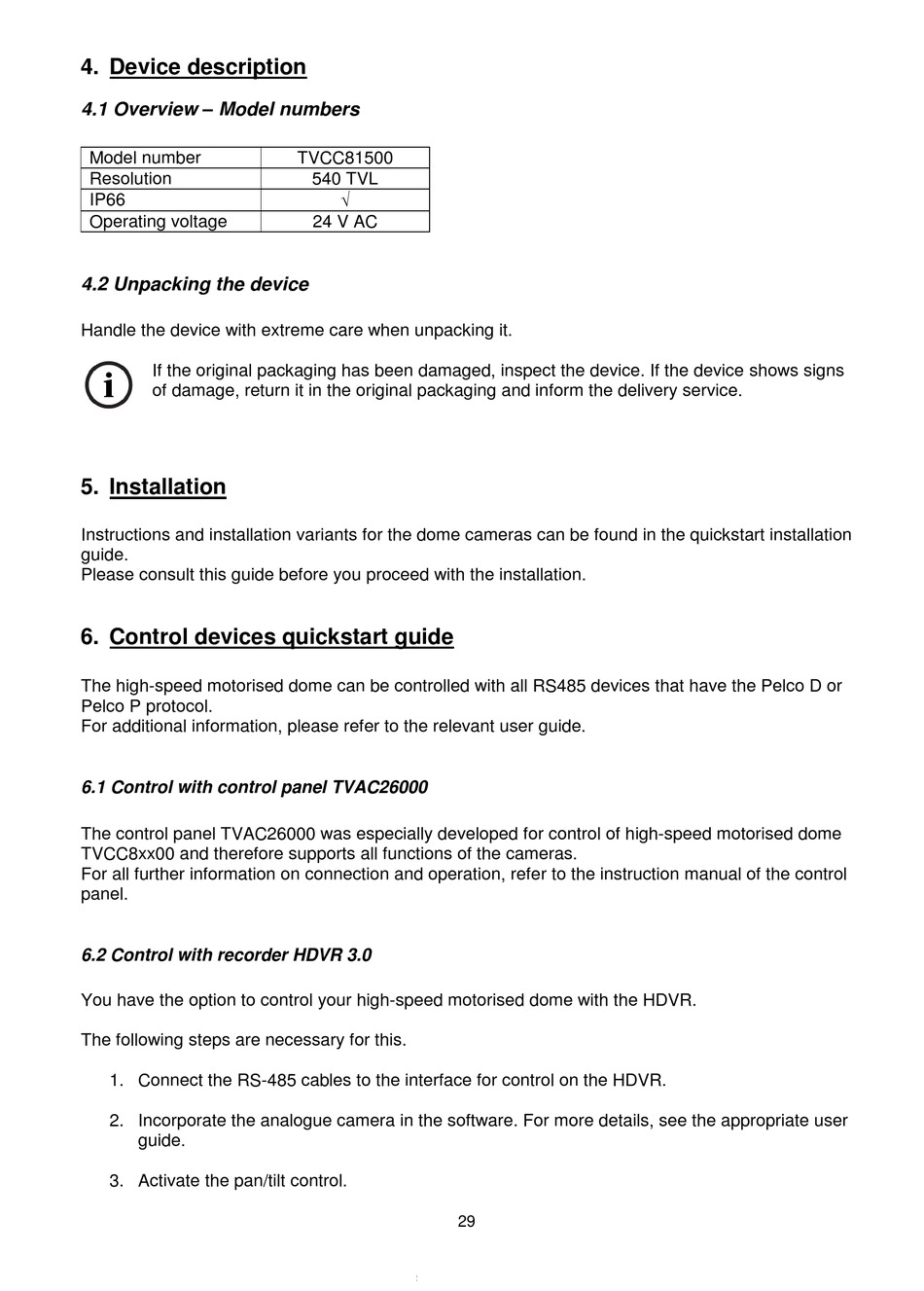

4. Device description

4.1 Overview – Model numbers
Model number
Resolution
IP66
Operating voltage

4.2 Unpacking the device

Handle the device with extreme care when unpacking it.
If the original packaging has been damaged, inspect the device. If the device shows signs
of damage, return it in the original packaging and inform the delivery service.

5. Installation

Instructions and installation variants for the dome cameras can be found in the quickstart installation
guide.
Please consult this guide before you proceed with the installation.

6. Control devices quickstart guide

The high-speed motorised dome can be controlled with all RS485 devices that have the Pelco D or
Pelco P protocol.
For additional information, please refer to the relevant user guide.

6.1 Control with control panel TVAC26000

The control panel TVAC26000 was especially developed for control of high-speed motorised dome
TVCC8xx00 and therefore supports all functions of the cameras.
For all further information on connection and operation, refer to the instruction manual of the control
panel.

6.2 Control with recorder HDVR 3.0

You have the option to control your high-speed motorised dome with the HDVR.
The following steps are necessary for this.
1. Connect the RS-485 cables to the interface for control on the HDVR.
2. Incorporate the analogue camera in the software. For more details, see the appropriate user
guide.
3. Activate the pan/tilt control.
TVCC81500
540 TVL

24 V AC
