4.14.2 RAD-SOL-SET-24-200
• Connect the cable [1] to the positive pole of battery 1 and tighten it using a wrench.
• Connect the connecting cable [5] between battery 1 and battery 2 and tighten it using a
wrench.
Minus pole [–] battery 1 to plus pole [+] battery 2
• Connect the cable [2] to the negative pole of battery 2 and tighten it using a wrench.

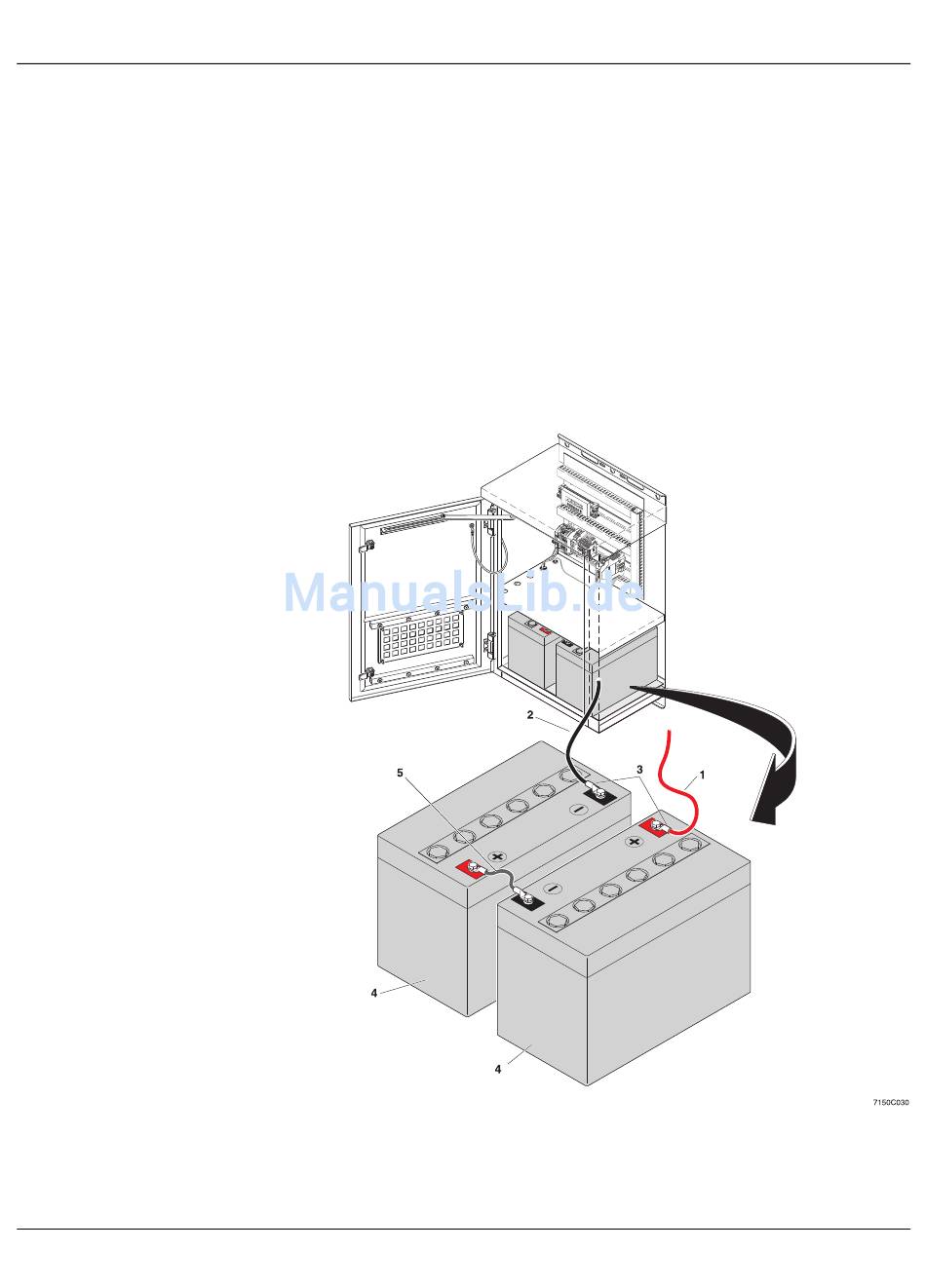

Key for Figure 4-26:
1 Line from the positive pole of the battery
2 Line from the negative pole of the battery
3 Cable lug
4 Lead-gel battery, 12 volts
5 Connecting cable (cable bridge)
Figure 4-26 Installing the batteries RAD-SOL-SET-24-200
