E N G L I S H

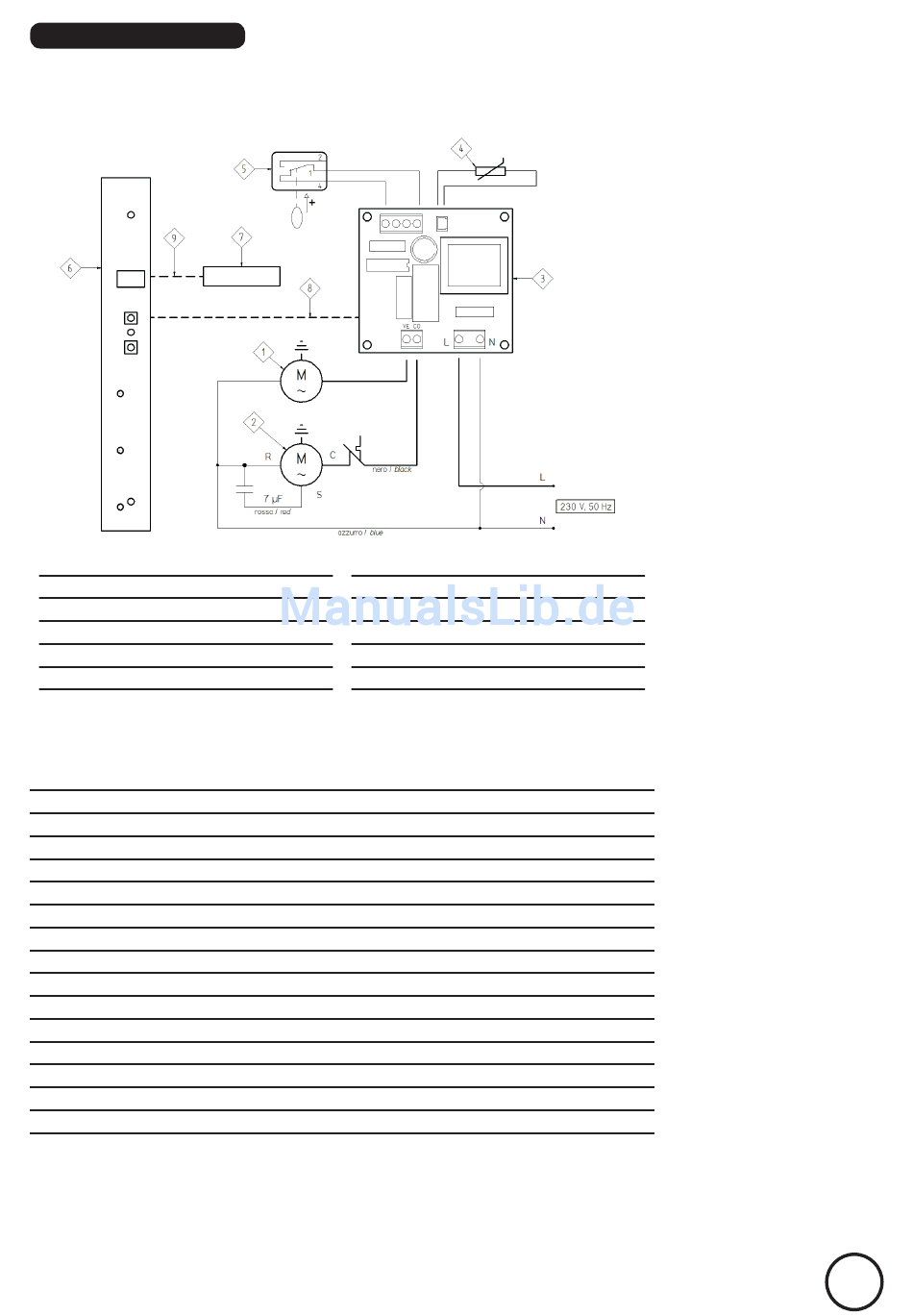

Wiring diagram

Ref. Description
1 Fan
2 Compressor
3 Electronic power device
4 Temperature probe
5 Level switch
Main data
Indicative handling volume [m³] 300
Condensate capacity [L/24hour] (*) 11,6 (**) 19
Working humidity [%R.H.] 40 / 95
Power absorption in standby (max) [W] 2
Refrigerating gas charge [g] see label / siehe Etikett
Refrigerating circuit maximum pressure [kPa] 1500
Noise level at 1 meter distance [dBa] 50
Dimensions: w×h×d [mm] 400 × 340 × 535
Condensate collection tank capacity [L] 6
M 1 0 8 5 - 0 _ d r a f t - 0
Tab.C – Wiring diagrams references
Working temperature [°C] +5 / +32
Air flow [m³/hour] 200
Power supply voltage 230 V, 50 Hz
Current absorption [A] (*) 1.40 (**) 1.52
Power absorption [W] (*) 280 (**) 315
Refrigerating gas R134a
Weight [Kg] 17,4
Tab.D – Technical data table
Ref. Description
6 Electronic control panel
7 Electronic humidistat
8 10 poles cable with plugs
9 4 poles cable with plug
(*) At 25°C e 65 %R.H. (**) At 30°C and 80%R.H
Dehumidifier
5
