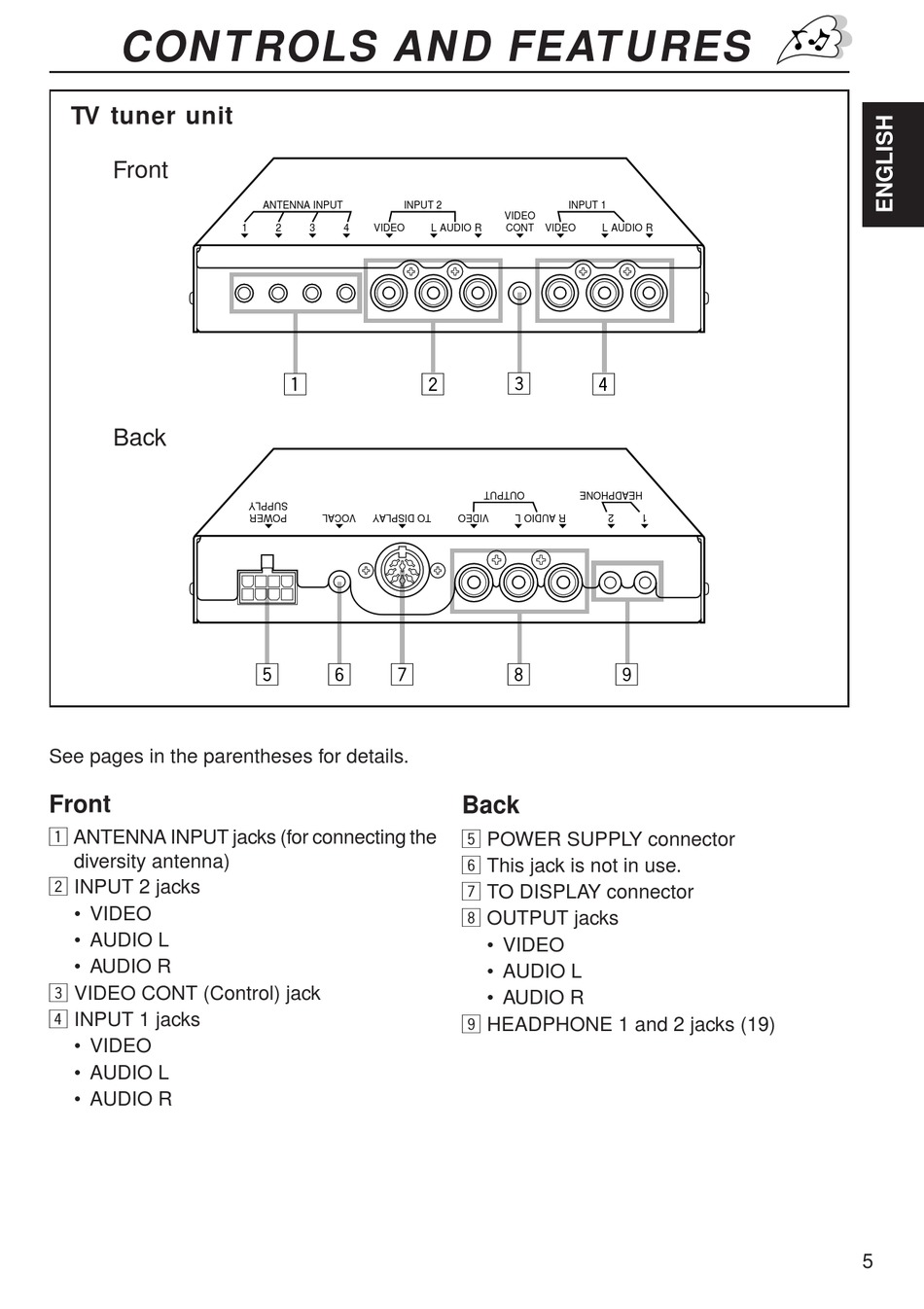

CONTROLS AND FEATURES

TV tuner unit

Front
Back
See pages in the parentheses for details.
Front
1 ANTENNA INPUT jacks (for connecting the
diversity antenna)
2 INPUT 2 jacks
• VIDEO
• AUDIO L
• AUDIO R
3 VIDEO CONT (Control) jack
4 INPUT 1 jacks
• VIDEO
• AUDIO L
• AUDIO R
ANTENNA INPUT INPUT 2
1 2 3 4 VIDEO
1
5 6 7
INPUT 1
VIDEO
CONT
L AUDIO R VIDEO
3
2 4
8
Back
5 POWER SUPPLY connector
6 This jack is not in use.
7 TO DISPLAY connector
8 OUTPUT jacks
• VIDEO
• AUDIO L
• AUDIO R
9 HEADPHONE 1 and 2 jacks (19)
L AUDIO R
9
5
