X32 PRODUCER DIGITAL MIXER
X32 PRODUCER DIGITAL MIXER Getting Started
Getting Started
(EN)
Ch01
Analog Output
Output 01
Output 02
Output 03
Output 04
Output 05
Output 06
Output 07
Output 08
*Output 09
*Output 10
*Output 11
*Output 12
*Output 13
*Output 14
Select

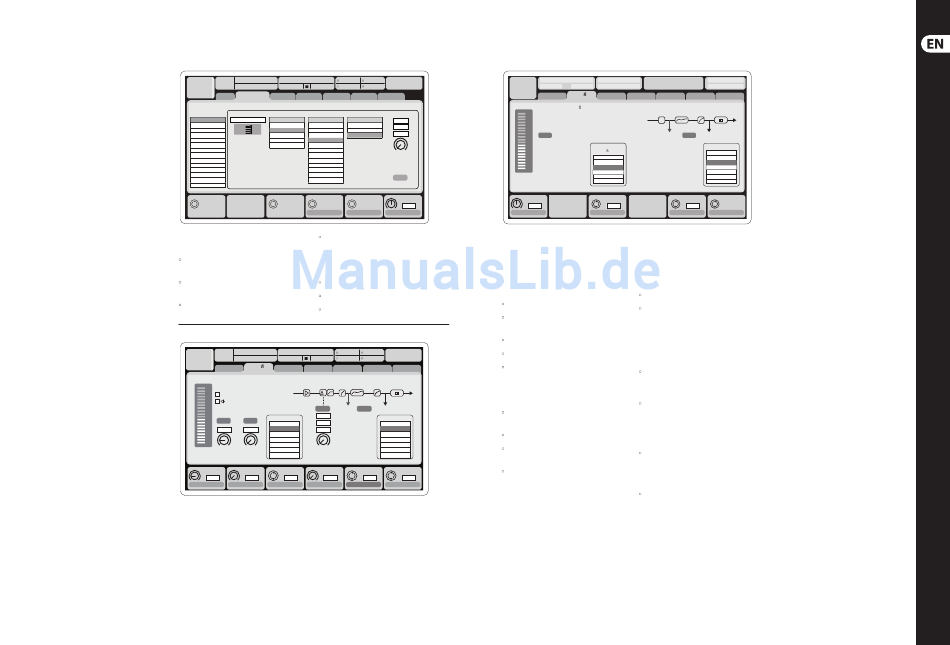

Output Signals can be freely assigned from
any internal signal to any of the following outputs:
8 analog local XLR outputs (with adjustable
•
digital delay for time-alignment of speakers)
8 virtual outputs (marked with *) for routing over
•
AES50 or card outputs
6 auxiliary sends on ¼" TRS outputs
•
Ch01
clip
-6
-12
-18
-24
-30
-36
-42
-48
-54
Gain
+0.00
Link
Input Channels 1-16 are pre-configured to use
the local input signals 1-16, but can be patched to
use any other available signal on the audio engine
as well, including mix bus/sub group outputs.
Changes of the Channel Source can be made on the
Preamp Config page.
Input Channels 17-32 are pre-configured to AES50
A inputs 1-16, so that connecting an S16 stage box to
port A will automatically feed the channels.
01 A: S16 A: 48K 14:09
01:
0:00 - 0:00 B: - C: X-USB
analog out
home aux out p16 out card out aes50-a aes50-b
Edit Output Assignment
Current Setting Category Processed Output Signal Tap
MixBus
OFF OFF Pre EQ
Main (LRC) Main L Post EQ
Mix Bus Main R Pre Fader
Matrix Main C/M Post Fader
Direct Out Main Bus 01
Monitor Main Bus 02
Main Bus 03
Delay
Main Bus 04
Main Bus 05
Main Bus 06
Main Bus 07
Main Bus 08
Delay
Main Bus 09
Select Select Select
Assign Set Delay
16 channels personal monitoring using the
•
console's P-16 Bus output connector
Any and all of the above signals can also be mirrored
in blocks of 8 signals on either one of
48x channels on AES50 port A
•
48x channels on AES50 port B
•
32x channels on USB interface card
•
01
A: S16 A: 48K 14:11
01: 0:00 - 0:00
B: - C: X-USB
con g
home gate dyn eq sends
Insert Position
t
In
48V
Reverse
Delay Pre Ins Post
0.3 ft
Source Insert
Link Lo Cut
0.10 m
OFF OFF
+0.0 2.0 Input 01 ms InsFX 1L
dB Hz 0.03
Input 02 InsFX 1R
Input 03 InsFX 2L
Input 04 InsFX 2R
Gain Lo Cut Delay
Input 05 InsFX 3L
Input 06 InsFX 3L
Lo Cut Source Delay Ins Pos
dB 20 Hz Input 0.3 ms PRE
Lo Cut Select Delay Insert Connect
Aux Return Channels 1-8 are pre-configured
to use the 6 aux input signals, and the two USB
playback outputs, but can be patched to use any
other available signal of the console as well.
FX Return Channels 1L-4R control the 4 stereo
output signals of side-chain FX 1-4.
13
Quick Start Guide
LeOnde.mp3
: 37
00.05.00 00.00.00
con g
home
Bus Con guration
clip
-6
0.3 ft
-12
0.10
m
-18
0.3 ms
Link
-24
-30
-36
-42
-48
-54
Delay Gain
ms 00.00 dB
0.3
Link
The configuration of Mix Bus Channels 1-16 can
be pre-set (in the Setup/Global page) or can also
be configured on an individual, per-channel basis.
The bus processing includes (in this order):
Insert point (swappable between post-EQ and
•
pre-EQ operation)
6-band fully parametric EQ
•
Compressor/expander (swappable between
•
post-EQ and pre-EQ operation)
Bus sends to 6 matrices
•
Main LR panning
•
: 37
Mono/Center level
•
main
Main Bus Channels LR/C are always available and
independent from Mix Buses. The processing steps
for this signal path include (in this order):
Insert point (swappable between post-EQ and
•
pre-EQ operation)
6-band fully parametric EQ
•
Compressor/expander (swappable between
•
post-EQ and pre-EQ operation)
Bus sends to 6 matrices
•
Insert
InsF
13:44:43 MyProj.prj
29 November 2010 Scene01
gate dyn eq sends main
Bus Insert Position
Channel Sends ∑
Pre Insert Post
All Channel Sends Insert
Pre Con guration
Ins 01
... Ins 02
Inputs Ins 03
Pre EQ Ins 04
...
Pre Fader
Post Fader FX 01
Sub Grou FX 02
Send Pos. Insert Pos. Insert
Inputs Pre
Bus Sends Insert Connect
Matrix Channels 1-6 are fed exclusively by
MAIN LRC and Mix Bus 1-16 signals. The processing
steps include (in this order):
Insert point (swappable between post-EQ and
•
pre-EQ operation)
6-band fully parametric EQ
•
Compressor/expander (swappable between
•
post-EQ and pre-EQ operation)
Effects Processing 1-8
The X32 PRODUCER console contains eight
true-stereo internal effects engines.
FX 1-4 can be configured as side chain or insert
•
effects, while FX 5-8 can only be used in insert
points of channels or buses
The returns of side chain FX 1-4 can always be
•
controlled using the 6th bank (layer) of the input
channels - Effects Returns. Note that the return
signals of FX 1-4 have separate faders for left
and right
The FX Home screen allows selection of the
•
FX 1-4 input sources and selecting the effects
type/algorithm for each of the 8 FX slots of the
virtual rack
The subsequent tabs FX 1-FX 8 of the FX screen
•
allow editing all parameters of the chosen
effects processor
iPad App for X32 PRODUCER
Many functions of the X32 PRODUCER console
can be remotely controlled by a dedicated iPad
app. Details about the app's download, setup and
operation are included in a separate user manual
available for download from the X32 PRODUCER
product page.
The app's User Interface is optimized for the
touchscreen nature of the iPad device and provides
many useful remote features of the console.
Using the app, you can perform functions such
as adjusting monitor mixes from the stage while
interacting with musicians, or adjusting the front-
of-house mix from the audience, while hearing the
mix exactly as the audience does.
Windows-based application and Linux/
OS X application for X32 PRODUCER
Also offered is a separate remote editor running
on host computers that will allow for complete
editing control of the X32 PRODUCER via Ethernet.
Details of the remote editor's download, setup and
operation are included in a separate user manual
available for download from the X32 PRODUCER
product page. Check out behringer.com for
more information.
Tip: The X32 PRODUCER remote communication is
OSC-based (open sound control) and we will share
the protocol on our website, allowing developers
to design their own control software. Stay tuned to
behringer.com for details on the OSC protocol.
X-USB card
The X-USB card allows transmission of up to
32 channels to and from a connected computer.
Please download the X-USB drivers and Quick Start
Guide from behringer.com before connecting the
mixer to your computer.
