4. Installation and Operation
Connect all the stereo input sources first and connect the microphones. Make sure all volume controls are placed in
their minimum positions ("0"). Connect the stereo outputs to the power amplifier and/or tape decks.
Plug the device into an AC power source.
NOTE: Use shielded low-capacitance stereo cables for the RCA connections. The quality of the cables is essential
for high-quality sound reproduction.

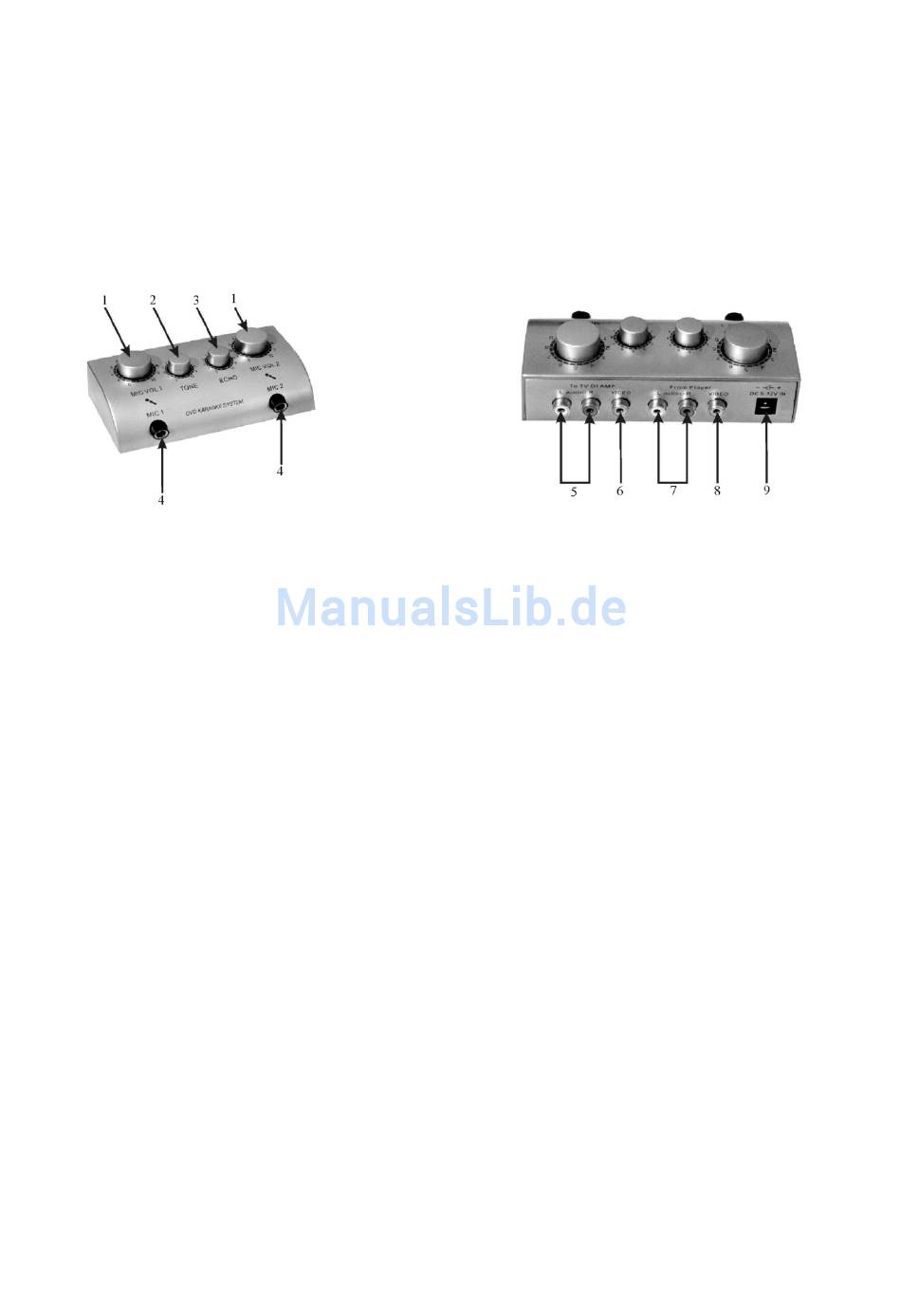

5. Description
1. 2 MICROPHONE CONTROLS
2. MIC TONE
Adjust the tone of the microphone. Towards "10" it will be the highest, and towards "0" the lowest..
3. ECHO CONTROL
Varies the echo effect applied to the microphone output. Turning the control towards "max" enhances the echo
effect and turning it towards "min" attenuates it. Echo is not applied at "min" position.
4. 2 MICROPHONE INPUTS
Insert the microphone jack. Use 6.35mm jack
5. AUDIO LEFT AND RIGHT OUTPUT
Audio signal input for music sources like CD players, VCR and other audio equipment. Connect the audio
output jacks of those audio systems to these audio input jacks. While making the connection make sure you
respect the right channel connection.
6. VIDEO OUTPUT
7. AUDIO LEFT AND RIGHT INTPUT JACK
Allows to connect amplifier or to a hi-fi system in order to improve the sound and increase the volume output.
While making the connection, make sure you respect the left and right channel connection.
8. VIDEO INTPUT
9. 9 – 12VDC INPUT

6. Specifications

Dimensions
Weight
Power supply
For more info concerning this product, please visit our website www.hqpower.com.
The information in this manual is subject to change without prior notice.
PROMIX02_v3
130 x 70 x 30mm
145g
230VAC / 9-12VDC adapter (incl.)
