Schaltuhr
•
Interrupteur horaire
•
Time switch

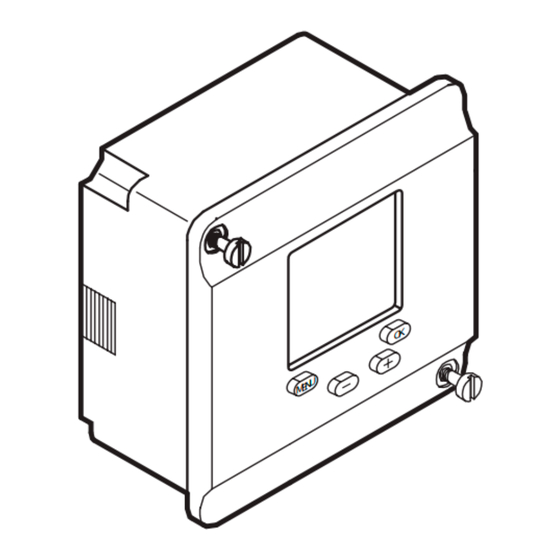

MaxiRex D72/1 Plus, MaxiRex D72/2 Plus
A4 42 10
A4 42 11
24V
230V
M
50/60Hz
AC/DC
1x 16A/250V~µ cos ϕ = 1
1 ... 4 mm
2
P
+
-
-20°C ... +55°C / - 4 °F to + 131 °F
+
-
-20°C ... +60°C / - 4 °F to + 140 °F
1
4
2
L
N
•
Parallelkompensation
60VA
•
Compensé parallèle
7µF
•
Parallel compensation
A4 42 12
A4 42 13
230V
24V
50/60Hz
AC/DC
2x 8A/250V~µ cos ϕ = 1
•
Ganggenauigkeit
± 1 s/Tag bei typischen Installationsbedingungen
•
Précision d'avance
0,5 ... 2,5 mm
2
± 1 s / jour aux conditions normales d'utilisation
1 W
•
Clock accuracy
± 1 s / day under typical installation conditions
6 a
•
Programme
•
Programmes
•
Programs
+
1800W
100W*
1800W
+
100W
1800W
+
2300W
2300W
1800W
•
Sicherheitshinweise
Einbau und/oder Montage dürfen nur durch eine Fachkraft erfolgen! Bei falschem Umgang mit
diesem Produkt besteht Lebensgefahr durch elektrischen Schlag!
Bei falscher Installation besteht Brand- und Lebensgefahr! Das Gerät nicht öffnen! Vor der
Installation die Bedienungsanleitung lesen, den produktspezifischen Montageort beachten und nur
Originalzubehör benutzen! Alle Produkte dürfen ausschließlich von speziell geschulten
Mitarbeitern geöffnet und repariert werden. Durch unbefugte Öffnung oder Reparatur erlöschen
alle Haftungs-, Ersatz- und Gewährleistungsansprüche.
•
Consignes de sécurité !
L'installation et/ou le montage doivent exclusivement être effectués par un personnel spécialisé!
Une fausse manipulation avec ce produit peut entraîner un danger de mort par électrocution!
Risque d'incendie et danger de mort si l'installation n'est pas conforme! Ne pas ouvrir l'appareil !
Avant d'effectuer l'installation, lire la notice d'utilisation, tenir compte du lieu de montage spécifique
au produit et utiliser exclusivement les accessoires d'origine! Tous les produits doivent exclusive-
ment être ouverts et réparés par des employés spécialement formés à cet effet. Toute ouverture ou
réparation non autorisée annule l'intégralité des responsabilités, droits à remplacement et garanties.
•
Safety notes!
The device may be installed and connected only by a qualified electrician. Incorrect installation
and use may result in electric shock or in fires, possibly with fatal results! Do not attempt to
28
14 / Kanal
open the device! Before installing the device, read the operating instructions and observe the
requirements for the installation location. Use only original accessories with the device.
28
14 / canal
All products may be opened and repaired only by specially trained employees. Unauthorised
28
14 / channel
opening or repair of the device will invalidate all rights with respect to liability, replacement and
warranty claims.
11 14
12
22
24
L
N
•
Parallelkompensation
•
Compensé parallèle
•
Parallel compensation
+
60W*
800W
+
21
60W
900W
+
40VA
4µF
1000W
1000W
800W
900W
