Using Link Cables

The LED strip is very flexible. However, be careful when installing the product
around edges and with small radii. Do not bend at a position where LEDs or
resistors are located. Instead, always use the included 10 cm long link cables.
You can use these to bridge difficult mounting positions and connect LED
strips that were cut. Always perform this task with great caution as the
connection is irreversible!

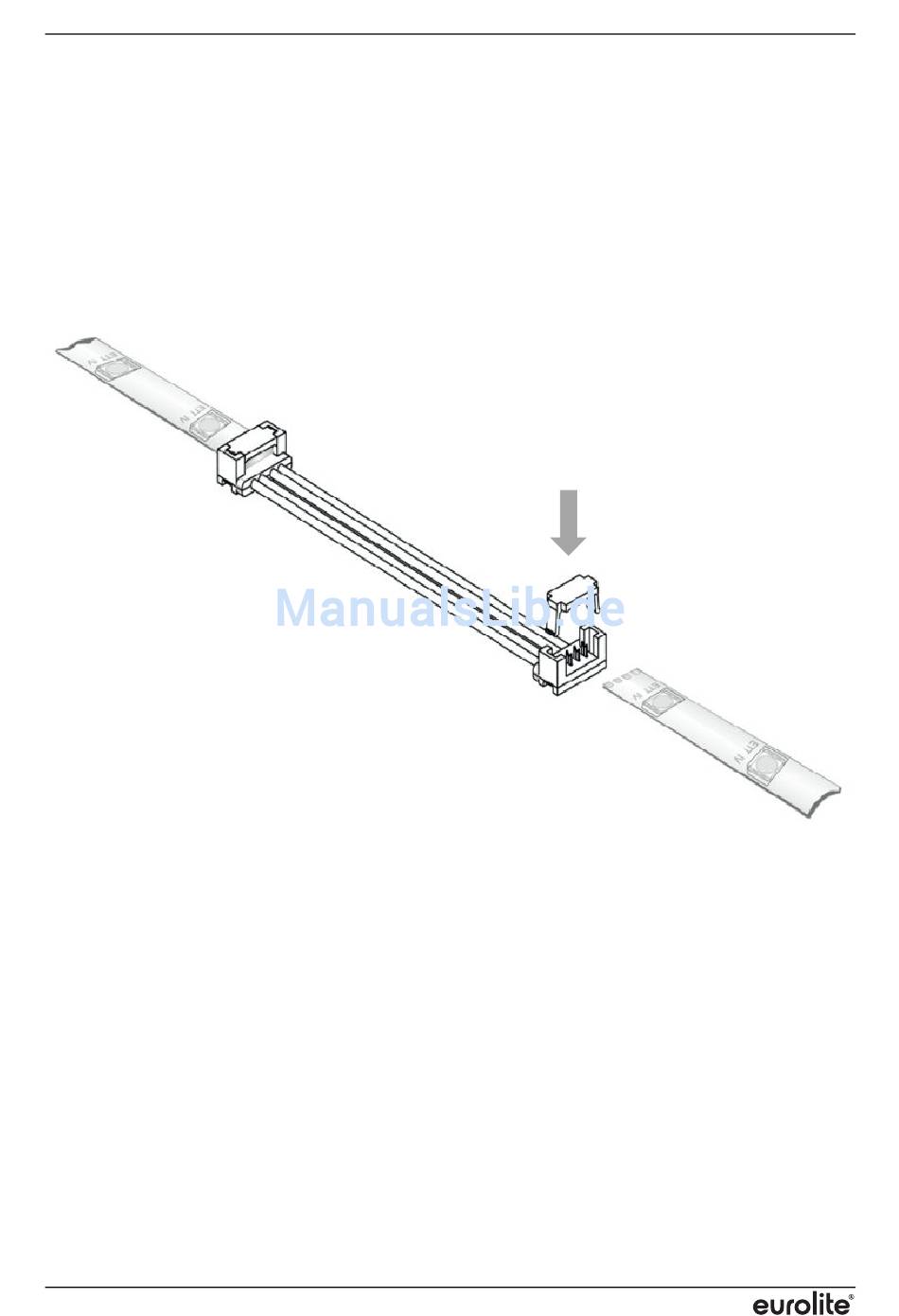

1
Place the link cable onto a firm surface.
2
Place the flat end of the LED strip onto the link cable's connection rail.
Press down the LED strip over the pointed pins under slight pressure.
Remove the protective foil under the pins first.
3
The pointed pins must pierce the LED strip's conductors from below
and thus electrically connect both components.
4
Place the cover over the connection rail and snap it in under slight
pressure to ensure proper connection.
5
Repeat the procedure on the other side of the link cable.
