The FILIA, FILIUS units have been granted type approval, and
they comply with all the rules and regulations that apply to safe
operation. The FILIA, FILIUS units are not available in sea water
version (SWL).
2
3
1
9

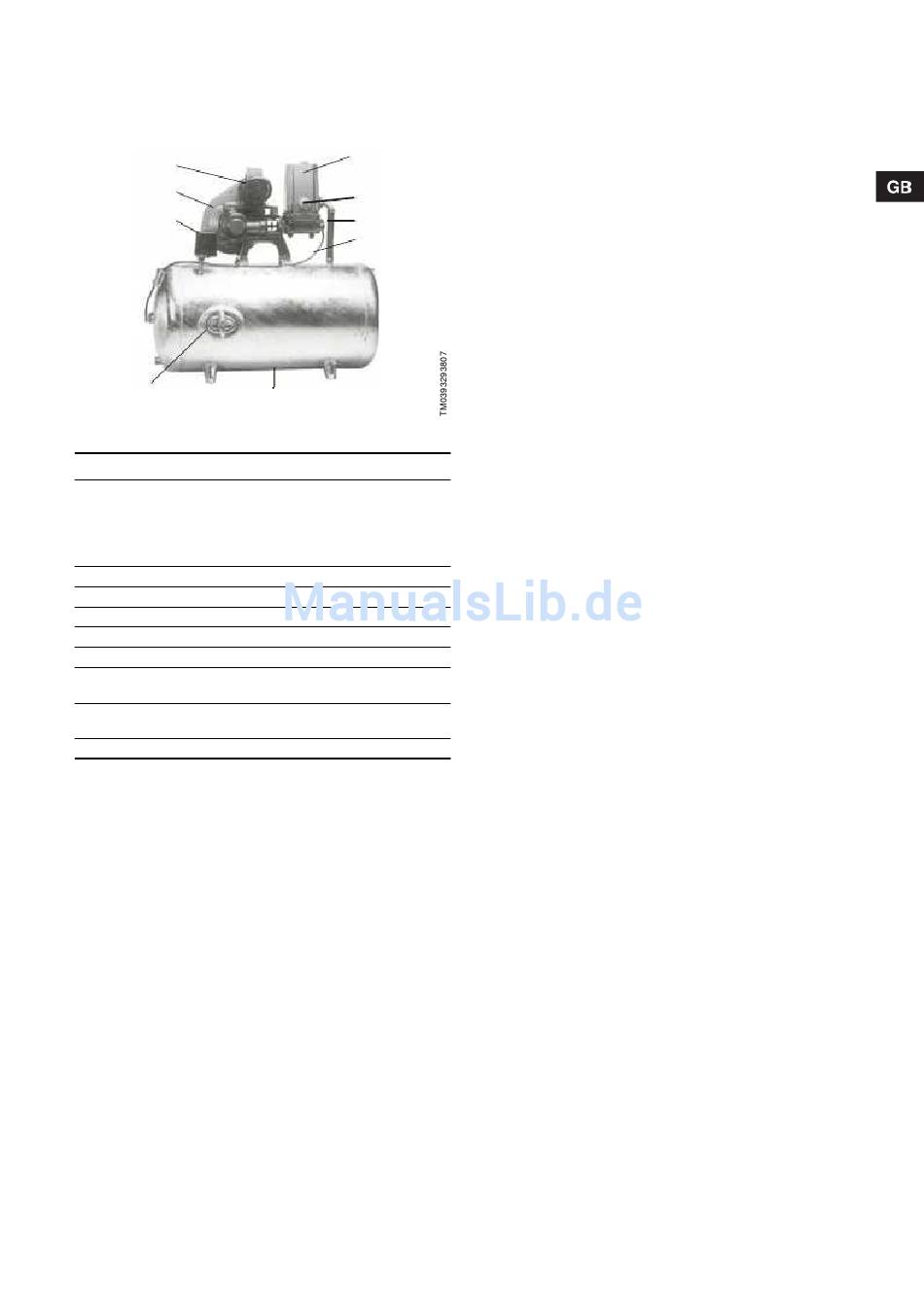

Fig. 1 FILIA, FILIUS unit
Pos. Description
Pressure switch, threepole, for switching pressures
(bar)
1
Vessel On-off
4 bar 1.5 - 3.0
6 bar 3.0 - 5.0
2 E-motor
3 Belt guard
4 piston pump, type WL
5 Automatic relief pressure unit serving as safety valve
6 Connecting line
Air controller with special relief valve, air controller
7
hose and air controller valve
Pressure vessel, service pressure 4 bar, fully galva-
8
nized, type-tested
9 Inspection hole

3.1 Pumped liquids

WL/WN: Drinking water · SWL: Sea water.
