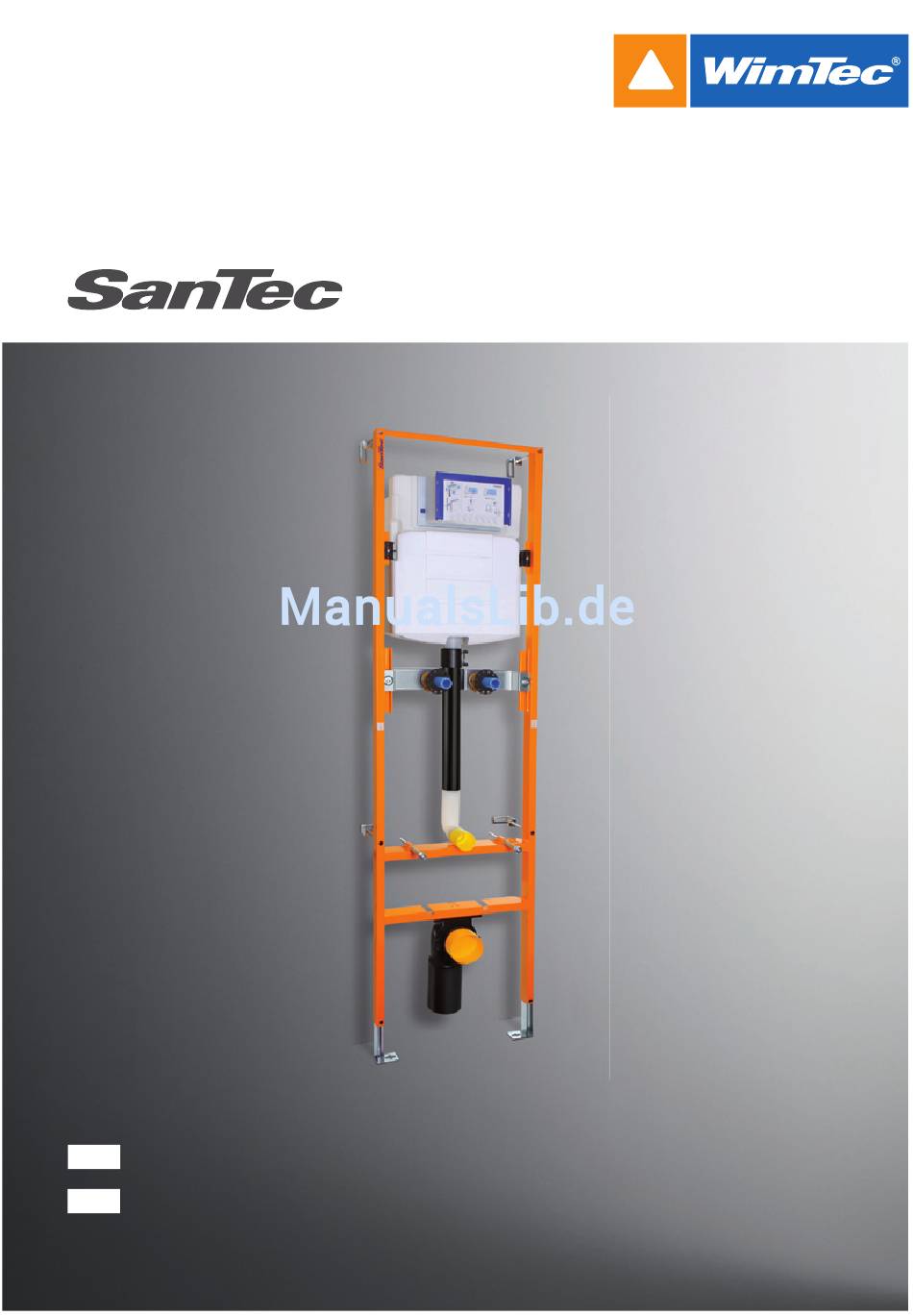

Abmessungen / Dimensions SanTec FIX 15,5 - 19 für Ausgussbecken Bernina for sink basin Bernina 51,5 Art.Nr. 118 056 Montageelement mit UP Spülkasten für für Wandausgussbecken Laufen Bernina (5421.0). Mit isoliertem 2-Mengen-UP-Spülkasten UP320 für Betätigung von vorne, Armaturenanschlusswinkel und PE-Ablaufbogen.
Fixing to floor (U-section) Mark on the floor the shape of the elongated holes in the legs of the assembly element. Drill 10 mm holes in the floor and insert plugs. Fix assembly element with hexagonal bolts and U-washers to the floor.
Seite 4
Fixing to floor (U-section) Mark on the floor the shape of the elongated holes in the legs of the assembly element. Drill 10 mm holes in the floor and insert plugs. Fix mounting frame with hexagonal bolts and U-washers to the floor.
Seite 5
Fixing to wall Fix installation track to wall. Adjust distance to wall at the front-wall-fixing-set to the same distances. Fix element with quick fastener screw in installation track. Zubehör: Befestigungsplatte Art.Nr.: 101 881 für Stützgriffe. Accessories: Installation board Art.No.101 881 for the installation of prop handles.
Seite 6
Applicable noise protection codes and regulations must be adhered Vorschriften zu beachten. Insbesondere: DIN 1988 und ÖNorm B 5410 Der Schallschutz wird erfüllt, sofern die Planung sowie die fachge- rechte Ausführung der gesamten Sanitärinstallation im Sinne der DIN 4109 durchgeführt wird. * AAW = Armaturanschlusswinkel SanTec FIX...
