Menu 5: Press „Esc" key, then press "Down" or "UP" until display shows „Colr". By pressing
„Enter" key you enter submenu where you can select between different color presets
(r=red, g=green, b=blue, rgb=white)
Menu 6: Press „Esc" key, then press "Down" or "UP" until display shows "SPEd". By
pressing „Enter" key you enter submenu where you can edit speed of Auto-Mode.
Press "Down" or "UP" keys to decrease or increase speed.
You can adjust speed within 32 steps: (0-31, 00 fast - 31 slow speed).
Menu 7: Press „Esc" key, then press "Down" or "UP" to select different submenus:
E
DICS, Press „Esc" key, then press "Down" to change dimmer value.
N
G
InSt "instant mode" DMX-value will be changed immediately to new setting.
L
dELA "delay mode" DMX-value will be changed slowly (decrease/increase)
I
from old to to new setting
S
H
Master/Slave: To run several devices in Master/Slave mode switch one device into auto or
audio mode and switch all other devices to DMX address "A001". The master will control
automatically all slave devices.
DMX
channel
1
2
3
4
5
6
7
DMX parameter
function
0 ... 255 Master DIMMER
0 ... 255 Red DIMMER
0 ... 255 Green DIMMER
0 ... 255 Blue DIMMER
0 ... 255 Flash
0 ... 255 Auto Mode
0 ... 255 Speed Auto Mode
11
Bedienungsanleitung
Operators manual
00022051
Showlite

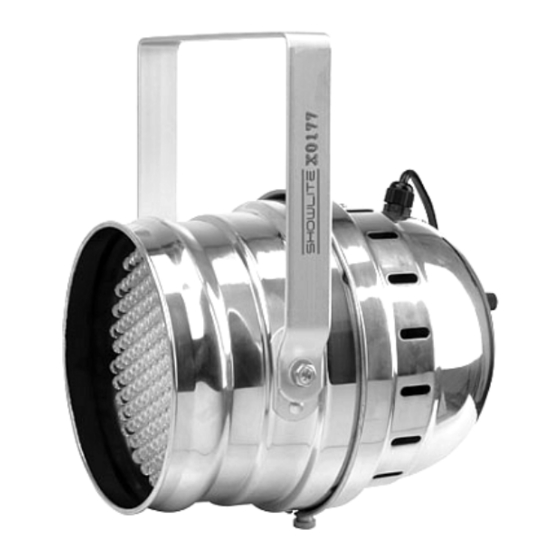

PAR64 LED PAR 64 LED
10mm RGB
00022052
Showlite
36x3W RGB
