TWEETER INSTALLATION

The tweeter units come with an aluminium main housing and a front rim that
features three mounting holes . After you have determined the best sounding
tweeter location, you can cut two holes with 48 .5mm diameter, using a hole-
saw attachment for your power drill .
Insert the tweeter wire into the hole you have just cut, attach the tweeter
extension wire on the back and fix the tweeters in place using the cross bar,
provided by the mounting hardware set .

FINE TUNING OF TWEETER LEVEL

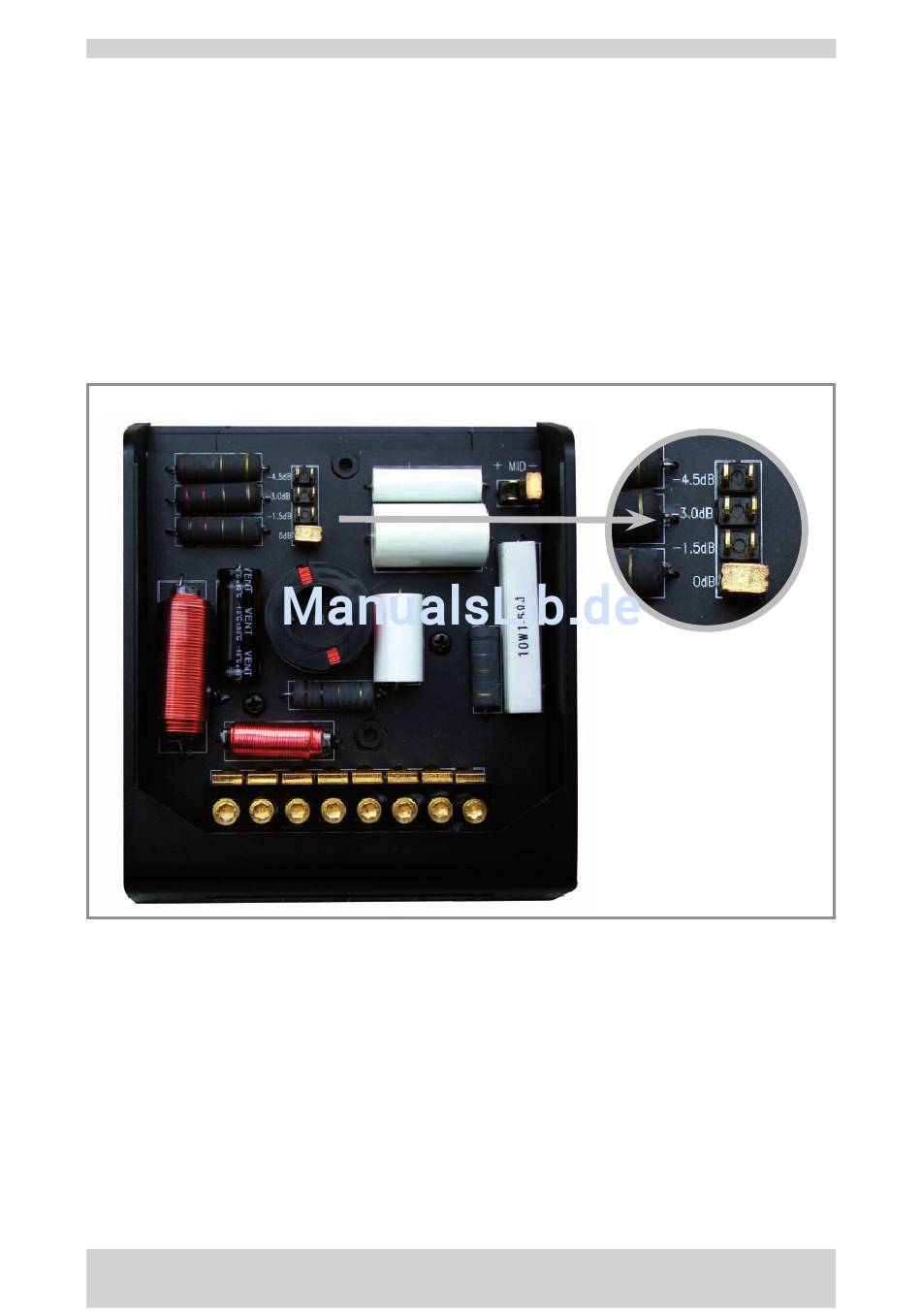

Fig.: Jumperposition Tweeter Level
ATTENTION: Before you start to fine tune tweeter level and presence level, be
sure the following steps have been completed:
All wiring work has been done (loudspeakers, crossovers, amplifier are wired
➔
etc) .
Highpass and lowpass crossover frequency adjustments on the amplifier
➔
have been carried out .
Input gain level adjustment of satellite- and subwoofer channels (if
➔
applicable) are set
All tone controls – including the loudness function – have been reset to their
➔
neutral / zero position .
