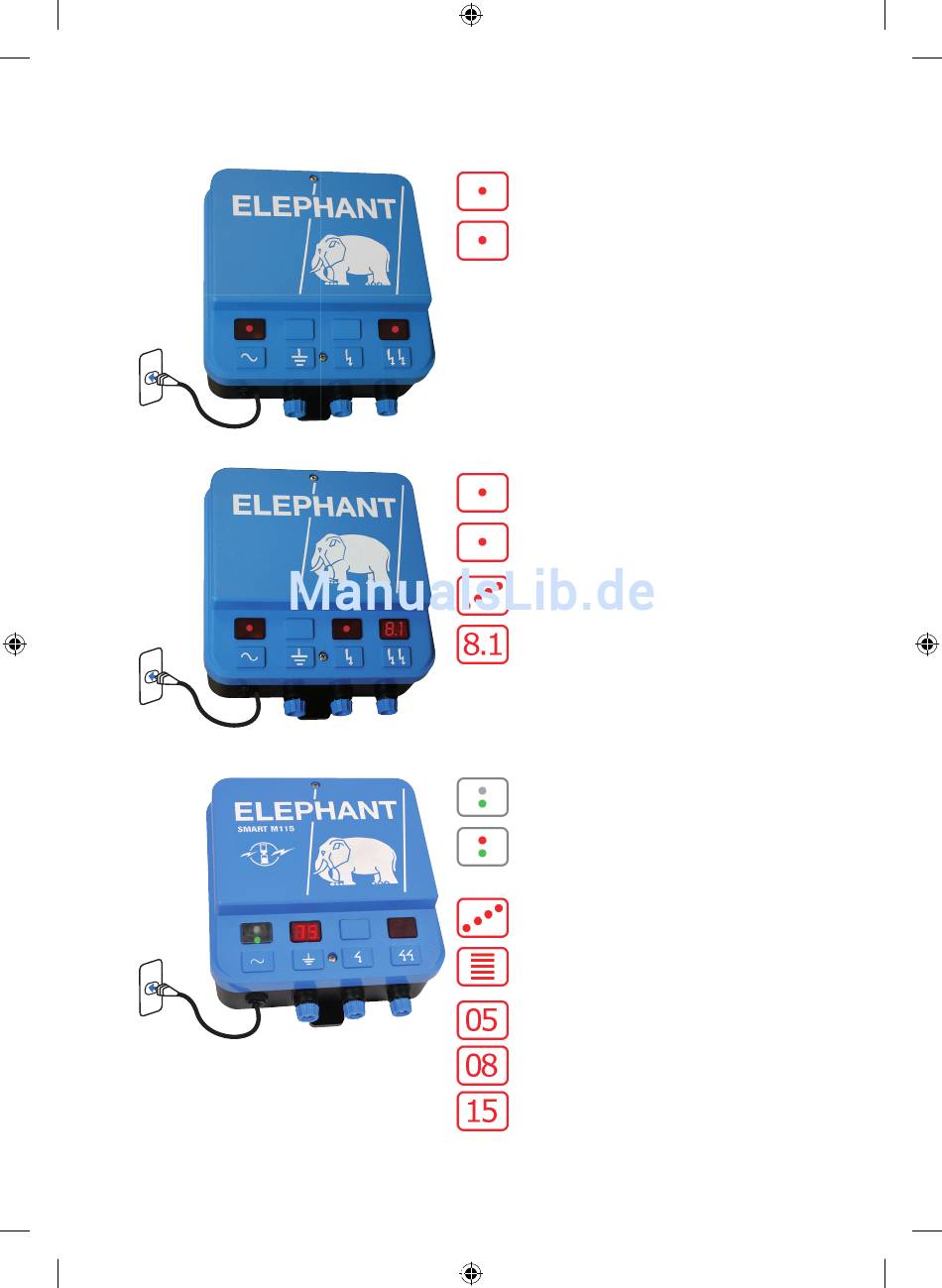

3.2 Elephant M40

3.3 Elephant M40-D, M65, M65-D
3.4 Elephant SMART M Serie A+D
*See 4.2 for an explanation of the
POWER MODE settings.
700034011_230V_M40-M40D-M65-M65D-Smart M SerieA+D_A5.indd 5
Lights when the energizer is ON
M40. Flashes when the voltage
is above 2000V.
Lights when the energizer is ON
Flashes red for every pulse.
M65, Voltage indicator, 4 LEDs, (@ 1,000 Volt)
1,000V, 2,000V, 3,000V and 4,000 Volt.
M40D, M65D, Voltage can be read
on display in kV.
Green LED light comes on, device is
switched on.
Red LED light comes on, Alarm / TIME
DELAY switched on. (You hear a buzzer
signal)
Voltage indicator, in 5 increments of 2kV
(2kV, 4kV, 6kV, 8kV and 10kV)
For 5 pulses the digital display shows
the output voltage in kV, followed by the
mode status of the device for 1 pulse:
05 Mode, Standard mode 5 Joule
08 Mode, POWER MODE 08 Joule
15 Mode, POWER MODE 15 Joule
