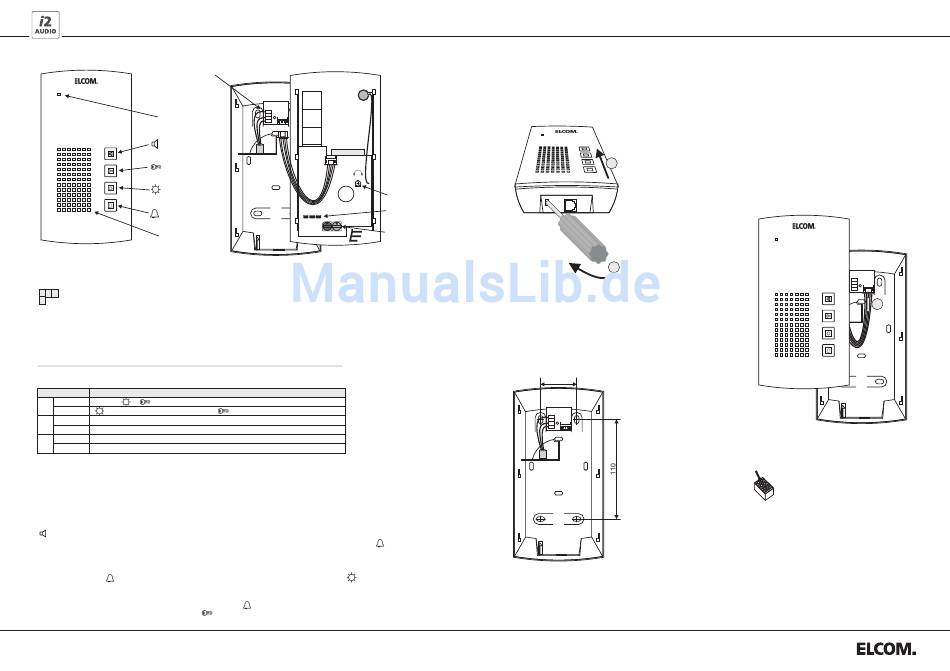

Handsfree intercom BFT-200
Terminal clamps
Microphone
Speak on/off
Door release button
Light button
Mute & Mute Speech
Speaker
Description
Terminal clamps
i2-BUS terminal (both "a" terminals connected internally)
a a b
Terminal to the storey call button (opposite pole to i2-bus "a" or "b")
R
Rotary coding switch for adress configuration
Black: Group address 0-F (Setting of the corresponding BTE-116)
Blue: Intercom address 0-F (Terminal of the corresponding doorbell button on BTE-116)
A maximum of 3 intercoms with the same address can be installed (parallel operation)!
Jumper Konfiguration
Jumper Funktion
Pushed In Buttons + light and door release function (Factory setting)
JP1
Pulled Out
Button internal call to address F/F
Pushed In No forwarding of storey calls (Factory setting)
JP2
Pulled Out Forwarding of storey calls to parallel addressed intercoms
Pushed In Full duplex speech mode
JP3
Pulled Out Half duplex speech mode (push-to-talk)
Microphone control
The sensitivity of the microphone can be changed with the microphone control. If the door station can only be
heard choppily, reduce the sensitivity. If the person who is speaking can only be heard choppily, increase the
sensitivity. (Factory setting: middle level) If no satisfying setting can be found, set the device to half duplex
speech mode.
Full/half duplex speech mode
Listening and speaking are automatically switched between in full duplex speech mode. The switching is be
dependant on the volume and characteristic of the speech signal. Listening and speaking are switched using the
button in half duplex speech mode (push-to-talk). The operator can speak when the button is pressed; the
conversation partner can be heard when it is released. The connection is ended by pressing the
Set the ring tone volume
Press and hold the button in idle mode. 3 ring tone volumes can be selected with the
Set the ring tone
The ring tone last used will always be changed. Press the
The desired ring tone can be selected with the button.
AN_BFT-200_EN_110216
R
a
a
b
- +
Microphone control
Jumpers JP1-3
1 2 3
Rotary coding switch
Button internal call to address F/E
button.
button.
button.
Installation:
Detach the locking mechanism with a screwdriver
and slide the lid of the housing upwards
2
1
Mount the base of the housing
and connect up the supply line.
40
R
a
a
b
Connecting the conductor:
plug in the conductor.
(Solid conductor diameter
0.4-0.8mm)
Detaching the wire:
Actuate the orange trigger.
Pull the wire out.
Technical additions and printing errors do not constitute grounds for any claims to damages.
Hotline: hotline@elcom.de
Art.Nr.: 0221102
Remove the connection cable
in the lower part of the housing.
R
a
a
b
3
Simply
