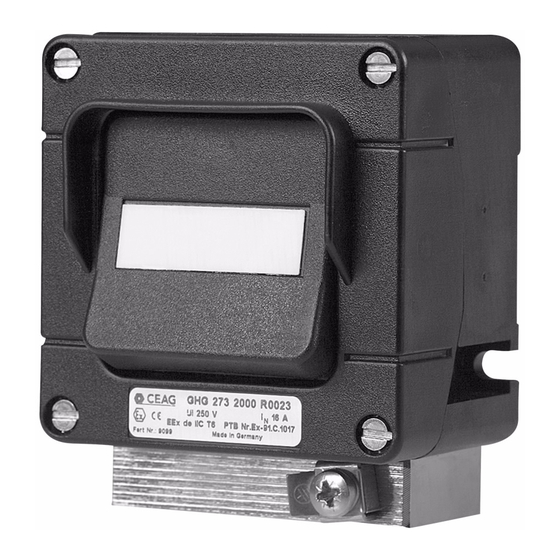

Explosionsgeschützte Installationsschalter Typ GHG 273 Technische Angaben Maßbilder in mm Gerätekennzeichnung nach 2014/34/EU D II 2 G Ex de IIC T6 und Norm: D II 2 D Ex tD A21 IP66 T 80° C EG-Baumusterprüfbescheinigung: PTB 98 ATEX 3121 Bemessungsspannung: bis 250 V;...
Explosionsgeschützte Installationsschalter Typ GHG 273 Verwendung / Eigenschaften Wird der Installationsschalter mit den Leitungs- einführungen nach unten montiert, ist der Bild 1 Die Installationsschalter dienen zur Ein- und Schaltereinsatz und der Gehäusedeckel um Ausschaltung von Lichtstromkreisen bis max. 180° zu drehen (siehe Bild 2). Gerätehalter Größe 1 16 A in explosionsgefährdeten Bereichen (siehe Befestigungslöcher „B“...
Explosionsgeschützte Installationsschalter Typ GHG 273 Flansche und Metallplatten* Instandhaltung / Wartung Bild 3 Müssen Metallflansche demontiert werden Die für die Wartung / Instandhaltung von (z.B. zum Bohren von Einführungsöffnungen), elektrischen Betriebsmitteln in explosions- Gehäuseunterteil ist bei der Montage zur Aufrechterhaltung der gefährdeten Bereichen geltenden Bestim- Mindestschutzart auf den korrekten Sitz der mungen wie EN/IEC 60079-17 sind einzu-...
Explosions protected installation switches type GHG 273 Technical data Dimensions in mm Marking acc. to 2014/34/EU D II 2 G Ex de IIC T6 and standard: D II 2 D Ex tD A21 IP66 T 80° C EC type examination certificate: PTB 98 ATEX 3121 Rated voltage: up to 250 V;...
Explosions protected installation switches type GHG 273 Use / Properties When the installation switch is mounted with the cable entries on bottom side, the switch Fig. 1 The installation switches are designed for insert and the enclosure cover must be turned switching on and off light circuits in hazardous through 180°...
Explosions protected installation switches type GHG 273 Flange and metal plates* Maintenance / Servicing Fig. 3 If flange plates have to be removed in case of The relevant national regulations which installation switches (e.g. for drilling entry apply to the maintenance/servicing of Enclosure base holes), attention shall be paid to the proper fit of electrical apparatus in explosive atmo-...
Interrupteurs d’éclairage pour atmosphères explosives type GHG 273 Caractéristiques techniques Dimensions en mm 2014/34/UE D II 2 G Ex de IIC T6 Marquage selon et directive: D II 2 D Ex tD A21 IP66 T 80° C Attestation d’examen CE de type: PTB 98 ATEX 3121 Tension nominale: jusqu’à...
Interrupteurs d’éclairage pour atmosphères explosives type GHG 273 Utilisation / Propriétés Si l’interrupteur d’éclairage est monté avec les entrées de câble dirigées vers le bas, l’insert de Fig. 1 Les interrupteurs d’éclairage servent à commutation et le couvercle de l’enveloppe enclencher et déclencher des circuits d’éclai- doivent être tournés de 180°...
Interrupteurs d’éclairage pour atmosphères explosives type GHG 273 Plaques à brides* Maintien/Entretien Fig. 3 Si les plaques à brides doivent être démontées La règlementation nationale en vigueur (pour perçage d’entrées de câble, par exemple) pour le maintien et l’entretien du matériel Embase il faudra veiller lors du montage au maintien de électrique pour atmosphère explosive...
