IVY DESIGN Classic Montageanleitung

Picture table
Vorschau ausblenden Andere Handbücher für Classic:

Werbung

MANUAL
Picture Table Classic

Werbung

loading

Inhaltszusammenfassung für IVY DESIGN Classic

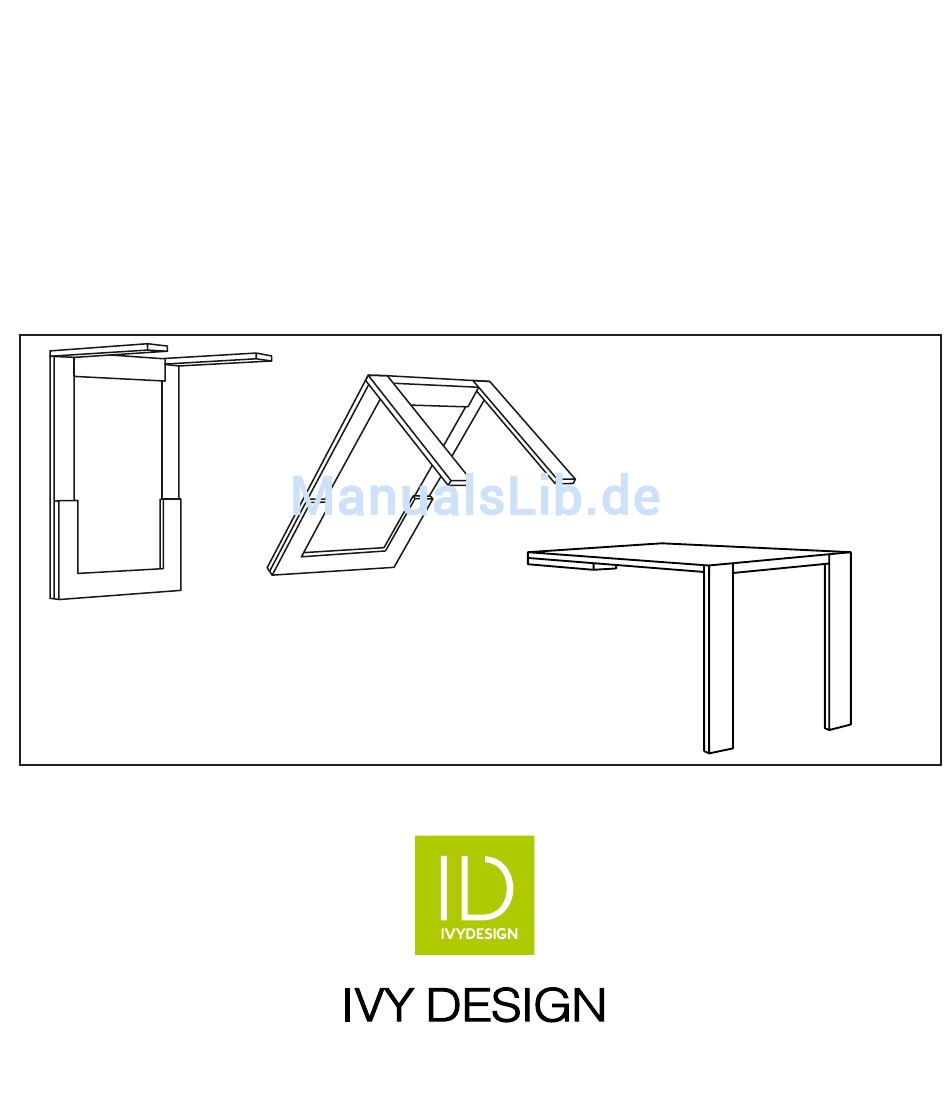

  • Seite 1 MANUAL Picture Table Classic...
  • Seite 2: Montage

    Mounting Montage...
  • Seite 3 2 cm 0,79 inch Drill holes at the green marked spots: 4 holes for the lower wall mount, 2 holes for the upper wall mount. Use the wall mounts to mark the drill holes. Bohren Sie Löcher an den grün markierten Stellen: 4 Löcher für die untere und 2 Löcher für die obere Wandbefestigung.
  • Seite 4 Screw the upper and lower wall mounts with suitable screws and anchor bolts to the wall. Befestigen Sie die obere und untere Wandhalterungen mit passenden Schrauben und Dübeln.
  • Seite 5 Fix the legs, lift the table up, slide the grooves on the table surface into the metal support on the wall. Turn the bolts with an Allen key on both sides in the table. Schieben Sie die Schlitze an der Tischoberfläche in die Metallbefestigung. Be- festigen Sie den Tisch mit beiden Bolzen.
  • Seite 6 Lift the table up. Heben Sie den Tisch.
  • Seite 7 Manual Handhabung...
  • Seite 8 Lift the table until it is parallel to the wall. Heben Sie ihn bis die Tischfläche parallel zur Wand steht.
  • Seite 9 Turn the metal support in the slit on the table edge. Drehen Sie die Metallhalterung in die Führung an der Tischkante.
  • Seite 10 Turn the metal support in a vertical position. Richten Sie die Metallhalterung vertikal aus.
  • Seite 11 Turn the wooden rectangle 90 degrees. Drehen Sie das rechteckige Holzplättchen um 90 Grad.
  • Seite 12 Let the leg down to close the picture frame. Führen Sie das Tischbein nach unten und schließen Sie den Bilderrahmen.
  • Seite 13 Close the frame. Schließen Sie den Rahmen.
  • Seite 14 Exchange the Poster Austausch des Posters...
  • Seite 15 Move the short wooden bar on the left side downwords. Ziehen Sie den kurzen Rahmenteil auf der linken Seite nach unten.
  • Seite 16 Push the left bar of the frame towards the left side in order to take the plexiglass off and exchange the poster/photo. Drücken Sie den linken unteren Rahmenteil nach links um danach das Plexiglas herausziehen und das Poster/Foto austauschen zu können.
  • Seite 17 Drag the plexiglass out and insert your own individual poster. Ziehen Sie die Plexiglasplatte heraus und fügen Sie ihr individuelles Poster ein.
  • Seite 18 Put the short wooden bar back to the original position. Bringen Sie den Balken wieder in die ursprüngliche Position.
  • Seite 19 60,6 cm = 23,86 inch 48 cm = 18,9 inch Your poster will look even more impressive if you additionally insert a white mat of this size. Ihr Bild sieht noch eindrucksvoller aus, wenn Sie es mit einem Passepartout präsentieren.
  • Seite 20 Enjoy your Picture Table Classic! Viel Freude mit Picture Table Classic!
