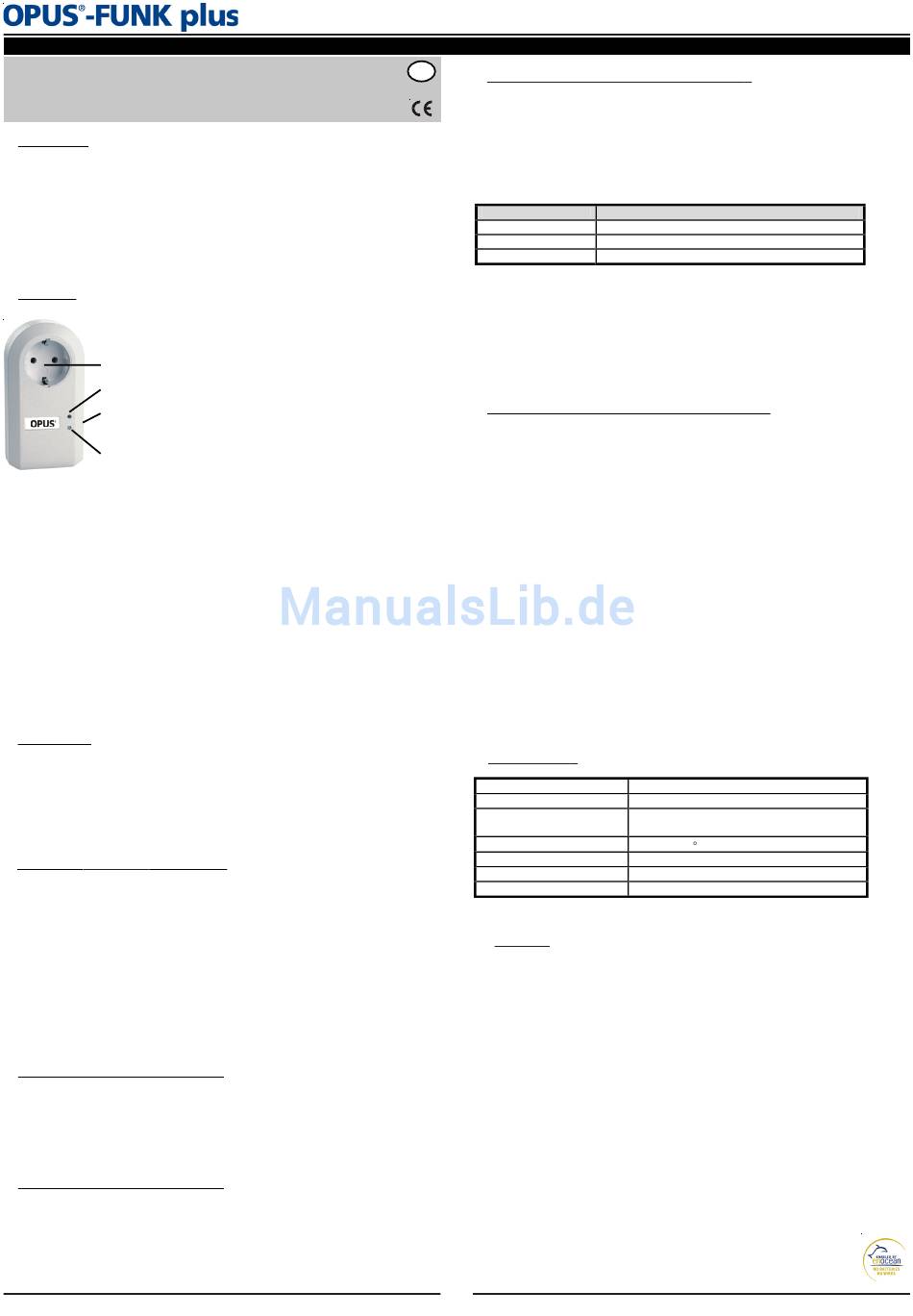

Installation and operating instructions
OPUS RADIO PLUS actuator one-way SCHUKO
Art. no.: 561.313
1. Description
The actuator is controlled by radio signals from the
transmitters). Each transmitter can simultaneously control an unlimited number of actuators. The
transmitters have a fixed address. The transmitters must be assigned (programmed) on a actuator.
The switching functions are executed by the
manually operated. Different 230V consumers such as incandescent lamps and high-voltage
halogen lamps can be switched with the actuator.
2. Mounting
Switched
output
LED
CLR-button
(side)
LRN-button
Learn mode
- Only plug into permitted sockets and not extension cords.
- Never plug an actuator into another actuator.
- Do not connect devices that can cause a fire or other damage if unintentionally turned on such
as a clothes iron.
- Do not plug any other objects into actuators.
- Danger! Do not open the device. Repairs may only be done in authorized shops.
- Avoid extreme temperatures, moisture, vibrations and impact.
- Do not use outdoors; only use in protected rooms.
- When fans heaters are used, maintain a safe distance from flammable materials such as
furniture, drapes, etc.
- Only clean with a damp cloth. Unplug actuators beforehand from the mains socket outlet.
Do not immerse in water.
- Do not use aggressive cleansers and solvents.
- Note the maximum switching capacity (see technical data).
- Please observe the Radio Plus transmitter operating instructions.
3. Learn mode
Press the LRN button and hold it down. After approx. 0.3 s, learn mode becomes active,
which is visually confirmed when the LED flashes.
on and off for a second while the LED flashes.
When no button of a Radio Plus transmitter is pressed, the actuator leaves the
after approx. 30s independently. Learn mode is left manually by pressing the LRN button.
4. Assigning Radio Plus transmitters
30 transmitters can be assigned to the actuator. The memory of each actuator is empty
when delivered.
When the actuator is in learn mode (LRN-button)
assigned (programmed) to the actuator. By pressing one of the transmitter buttons, the
transmitter is assigned to the actuator, and the LED shortly stops flashing. The LED status
identifies if the transmitter has been saved (LED on) or deleted (LED off).
transmitters can be assigned.
Independently of which transmitter button has been pressed, the entire functionality of the
transmitter is recorded when it is assigned.
5. Selective deleting of a transmitter
A transmitter that has been saved can selectively be deleted again. The
by pressing the LRN button. One of the transmitter's buttons has to pressed to delete it.
If the button is recognized, the transmitter assignment is deleted (LED status = off), and the
actuator returns to learn mode.
6. Deleting all assigned transmitters
Press the CLR button and hold it down for approx. 2s. During this time, the memory is
completely deleted (delivery status). Then, the actuator is in
by the flashing LED.
561313_Rev01_070206.pdf
Opus -Radio Plus transmitters
®
Radio Plus transmitters. The device cannot be
NEVER mount the Opus -Radio Plus
®
next to large metal objects. The actuators must be
plugged into the socket for programming. The actuators
fit all commercially-available grounding-type receptacle.
The programming is retained even in a power failure.
Caution!! The Radio Plus modules must not be used
with devices, which could affect human health or safety,
or endanger humans, animals or material assets.
The output is simultaneously switched
the LED flashes and a transmitter can be
learn mode is activated
learn mode which is signalled
GB
7. Ranges between transmitters and actuators
The range of the Radio Plus radio signals decreases as the distance between transmitter and
actuator increases.
If the normal range between transmitter and actuator is insufficient, an Radio Plus Repeater
(561.400) can be employed to increase range.
The range between the transmitter and actuator in a house is approx. 30m (line-of-sight
(max. 30
connection) and 100m in halls.
The transmission range depends on the materials used in the building:
Material
Masonry
Reinforced concrete
Drywall/wood
Limiting the range of the radio signals due to:
• Installing the transmitter or actuator in the immediate vicinity of materials with metal
constituents, or metal objects. A distance of at least 10 cm should be maintained.
actuator directly
• Installing the transmitter/actuator on the ground or at ground level.
• Moisture in the materials
• Devices, which also emit high frequency signals, such as e.g. computers, audio and video
equipment, electronic ballasts for illuminants. A distance of at least 0.5m should be maintained.
8. Error analysis in the case of radio interference
For a new or pre-existing system:
• Check the system voltage of the actuator.
• Check if the actuator is receiving a radio command.
• Check if the actuator is connected as specified.
• Check the operation of the connected consumers.
• Delete all transmitters in the actuator, and reprogramme the actuator.
• Check if any changes have been made around the system that could generate problems
(metal cabinets, walls or furniture has been moved, etc.).
If possible, restore things to their original status.
• Mount the transmitter or actuator at a better location.
The actuator independently turns ON and OFF:
• This can occur when an outside transmitter is activated within the actuator range that was
previously programmed in the actuator.
• Delete all transmitters in the actuator, and reprogramme the actuator.
A transmitter does not work:
• Take the transmitter and move toward the actuator. If the system still works at a closer
distance, the transmitter was installed outside of the transmission range, or there
was interference.
• Mount the transmitter or actuator at a better location.
9. Technical data
Transmission frequency
Power supply
learn mode
Connection data
Consumers
Surrounding temperature
Storage temperature
Test specifications
Degree of protection
10. Warranty
These operating instructions are an integral part of both the appliance and the terms of warranty.
After this, other
They must be furnished to the user. The technical design of the appliance is subject to change
without prior notification.
Jäger-Direkt products are manufactured using state of the art technologies in compliance
with prevailing national and international regulations, and are quality tested.
The right of compensation apllies according to payment terms and delivery conditions of
Jäger Direkt GmbH & Co. KG.
Further information to application and parameterisation for the Opus radio plus product family
under www.opus-schalter.de.
Jäger-Direkt Radio Plus products may be sold and used in EU countries, Switzerland, Iceland
and Norway.
The products conform to R&TTE Directive 1999/5/EC and meet EU regulations.
Typical range
20m (max. 3 walls)
10m (max. 1 wall/ceiling)
30m (max. 5 walls)
868.3 MHz
230V~ / 50 Hz
Incandescent lamp (ohmic load): 2500W
High-voltage halogen lamp: 1250W
+10° to +40 C
-20° to +60°C
EN 60669-1
IP 20
