Clarson PUBLIC III CE Montageanleitung Seite 5

Intercom system comfort edition

Werbung

1
> Intercom Central Unit
2a
> Intercom Central Unit (2)
(DC Power)
< Intercom Console (2)
1a
> Intercom Cleaner Socket
2b
> Intercom Console (2)
< Intercom Power Supply
< Intercom Central Unit (2)
> Intercom Power Supply
> Intercom Central Unit (1)
1b
3a
< Intercom Cleaner Socket
< Intercom Console (1)
1b
3b
2b
1a
Wandsteckdose
100-240V
50-60Hz
3m
3m

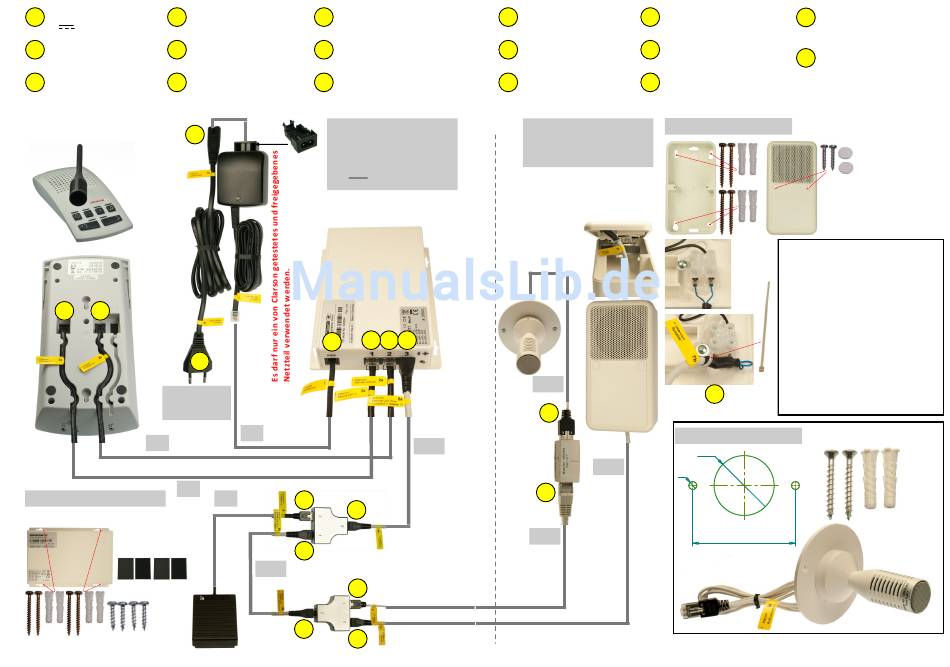

Montage Zentraleinheit
An der Wand oder unter der Tischplatte.
Klettverschlüsse nur auf
geeigneter Oberfläche
(Klebehaftung) verwenden!
O
O
Oder
C
C
F
8
3b
> Intercom Console (1)
< Intercom Central Unit (1)
4a
> Intercom Central Unit (3)
< Footswitch T-Adapter (2)
> Footswitch T-Adapter (2)
4b
< Intercom Central Unit (3)
Kontroll-Raum
Sprechanlage
mit Fußschalter
3a
2a
1
~
2m
2m
5
4b
6a
30cm
8
6b
7a
5
> Footswitch T-Adapter (3)
6a
> Footswitch T-Adapter (1)
< Intercom T-Adapter (2)
> Intercom T-Adapter (2)
6b
< Footswitch T-Adapter (1)
Patienten-Raum
4a
1m
8a
30cm
8b
20m
7a
> Intercom T-Adapter (3)
< Intercom Speaker
7b
> Intercom Speaker
< Intercom T-Adapter (3)
> Intercom T-Adapter (1)
8
< Intercom RJ45-Kupplung (2)
Montage Lautsprecher
C
C
N
7b
Deckenmontage Mikrofon
3 8
20m
5
Bohrbild
6 5
8a
> Intercom RJ45-Kupplung (1)
8b
> Intercom R45-Kupplung (2)
< Intercom T-Adapter (1)
H
Wichtig für die Installationsplanung:
Dimensionen Mikrofonkabel:
Länge 1m, Ø 2,6mm
Verlängerungskabel Länge 20m, Ø 5,5mm
Durchgangsloch für RJ45-Kupplung
mindestens Ø38mm
Bohrbild beachten!
Dimensionen Lautsprecherkabel:
Länge 20m, Ø 5,5mm
Durchgangsloch für RJ45-Stecker
mindestens Ø17mm.
Dimensionen Montage Material
siehe Seite 4.
