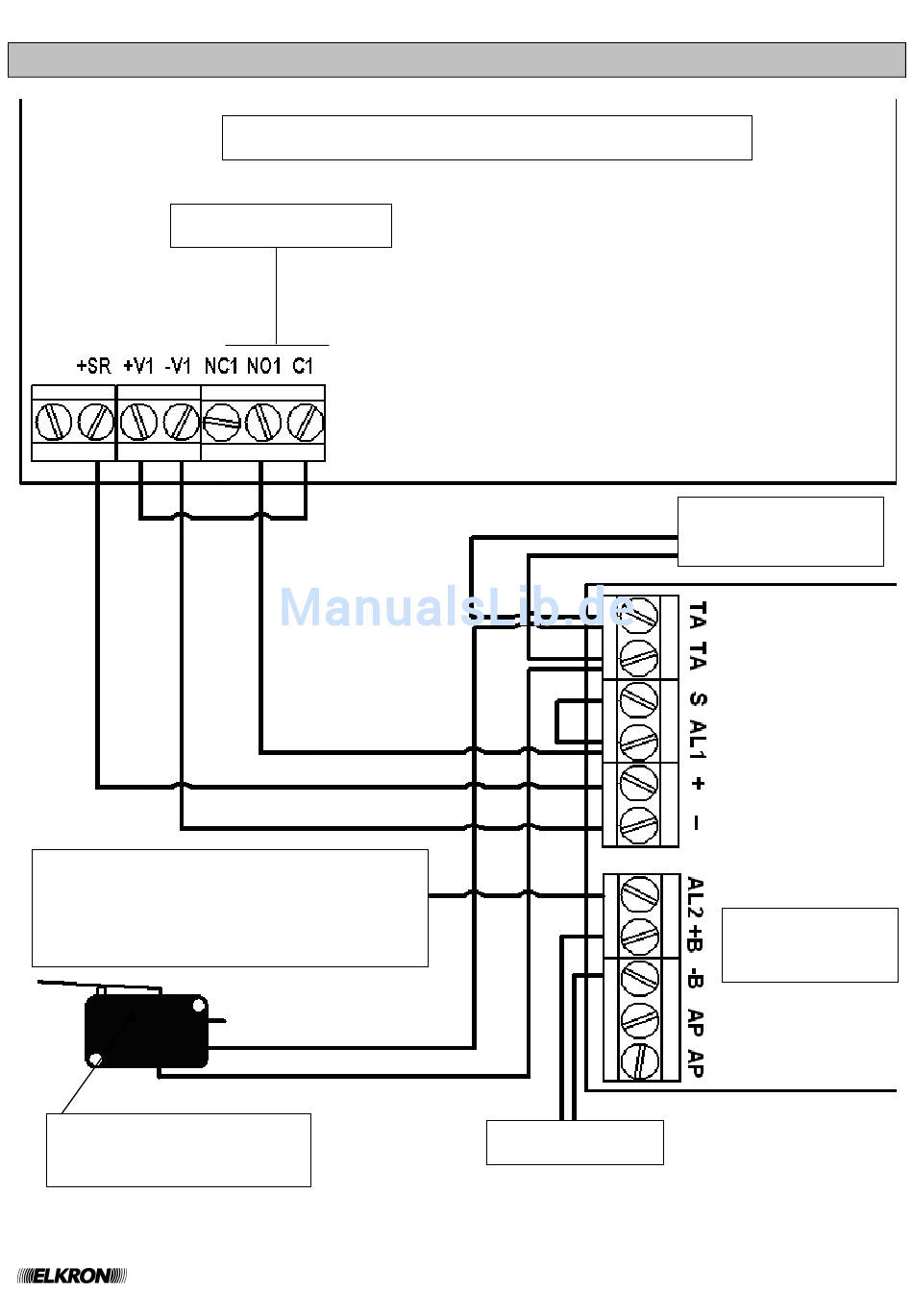

CONNECTION EXAMPLE

CONTROL PANEL MP500/xx SERIES
ALARM RELAY
To the control panel
24h line
SIREN INTERMITTENT SOUNDING-
COMMAND (N.C.)
ATTENTION: "F"JUMPER
HP375M
MUST BE OPEN
SIREN
ANTI-TAMPER
BATTERY
MICRO-SWITCH
15/24 HP375M
