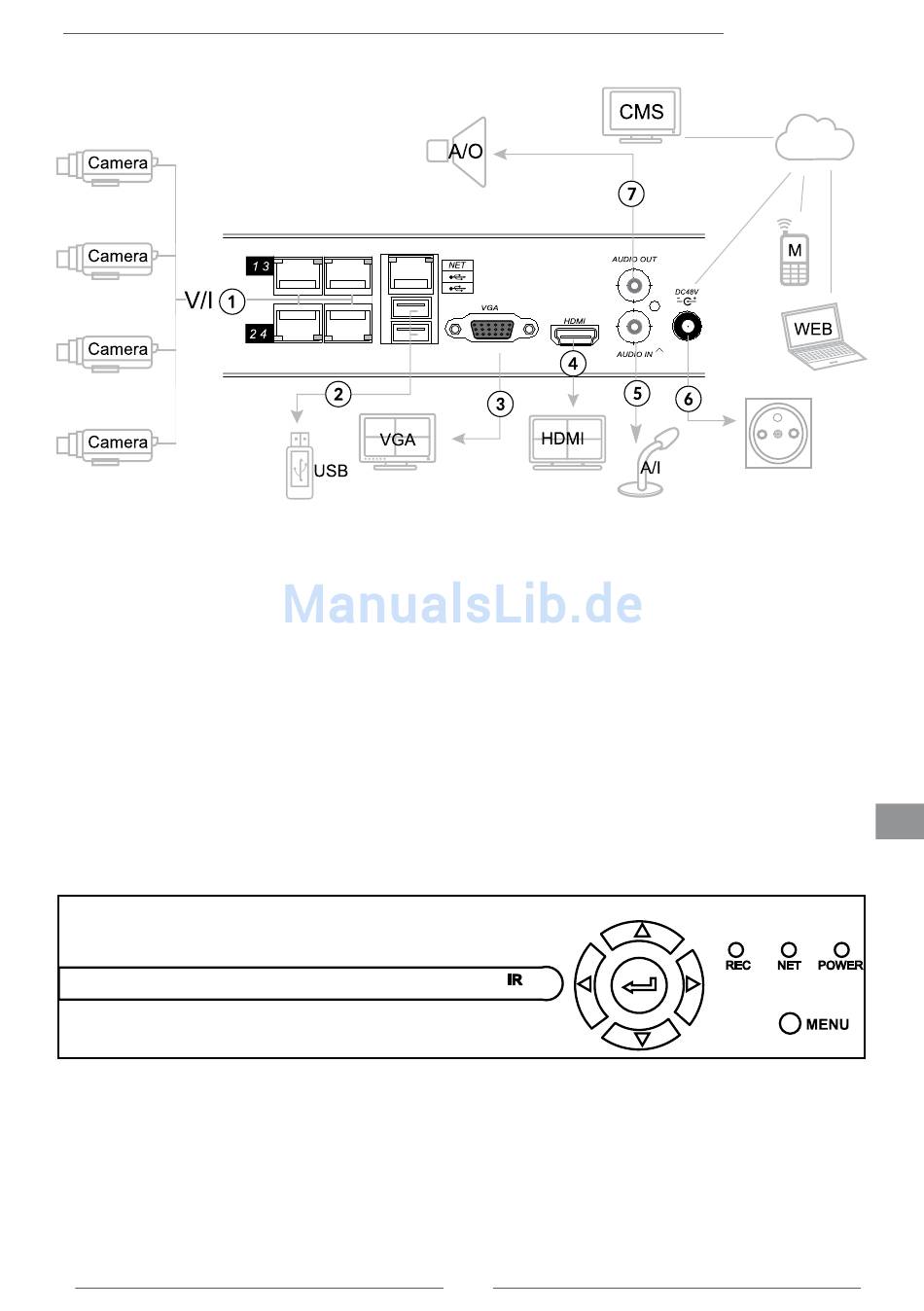

REAR PANEL AND EXTERNAL DEVICES CONNECTION
1. LAN inputs
2. USB ports
3. VGA outputs
4. mini HDMI output
5. Audio input
6. DC-in
7. Audio output
Note: Connect the cameras directly to the NVR (do not use switch).
When connecting the NVR to power supply, connect the power adapter to the device first, then
connect the adapter to power supply mains.

FRONT PANEL

1. IR light
2. REC indicator (recording)
3. NET indicator (network)
4. POWER indicator
5. Menu button
6. Control buttons
①
9
② ③ ④
⑤
⑥
