Field of application:
The devices are only suitable for amplifying and distributing radio and
television signals or multimedia signals inside the house! If a device is used
for other purposes, no warranty is given.
Product description:
The design of the SAT taps SAB 9901-xx and SAB 9902-xx is tailored to the
AXING polarity switch SPU 9x-09. The SAT taps are used to distribute the
signals from four polarity levels of two Quattro LNBs plus terrestrial signals
to one or two further branches containing polarity switches.
Mounting:
Use the included mounting screws and the mounting holes of the device 1
Important: Please make sure, that possible standards and safety
regulations regarding electrical grounding must be kept.We would
therefore recommend to use QEW Earthing angles.
TERR input
SAT inputs
1
Tap
1
Trunk line

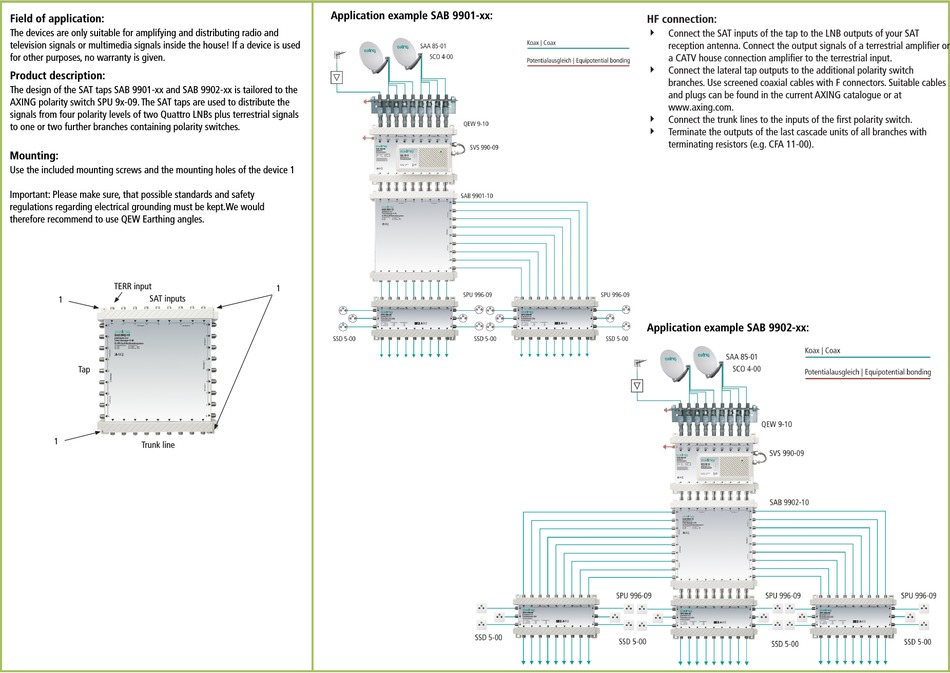

Application example SAB 9901-xx:
1
HF connection:
4
Connect the SAT inputs of the tap to the LNB outputs of your SAT
reception antenna. Connect the output signals of a terrestrial amplifier or
a CATV house connection amplifier to the terrestrial input.
4
Connect the lateral tap outputs to the additional polarity switch
branches. Use screened coaxial cables with F connectors. Suitable cables
and plugs can be found in the current AXING catalogue or at
www.axing.com.
4
Connect the trunk lines to the inputs of the first polarity switch.
4
Terminate the outputs of the last cascade units of all branches with
terminating resistors (e.g. CFA 11-00).
Application example SAB 9902-xx:
