Tune Spurtreu Gebrauchsanleitung Seite 6

figure 1
figure 3

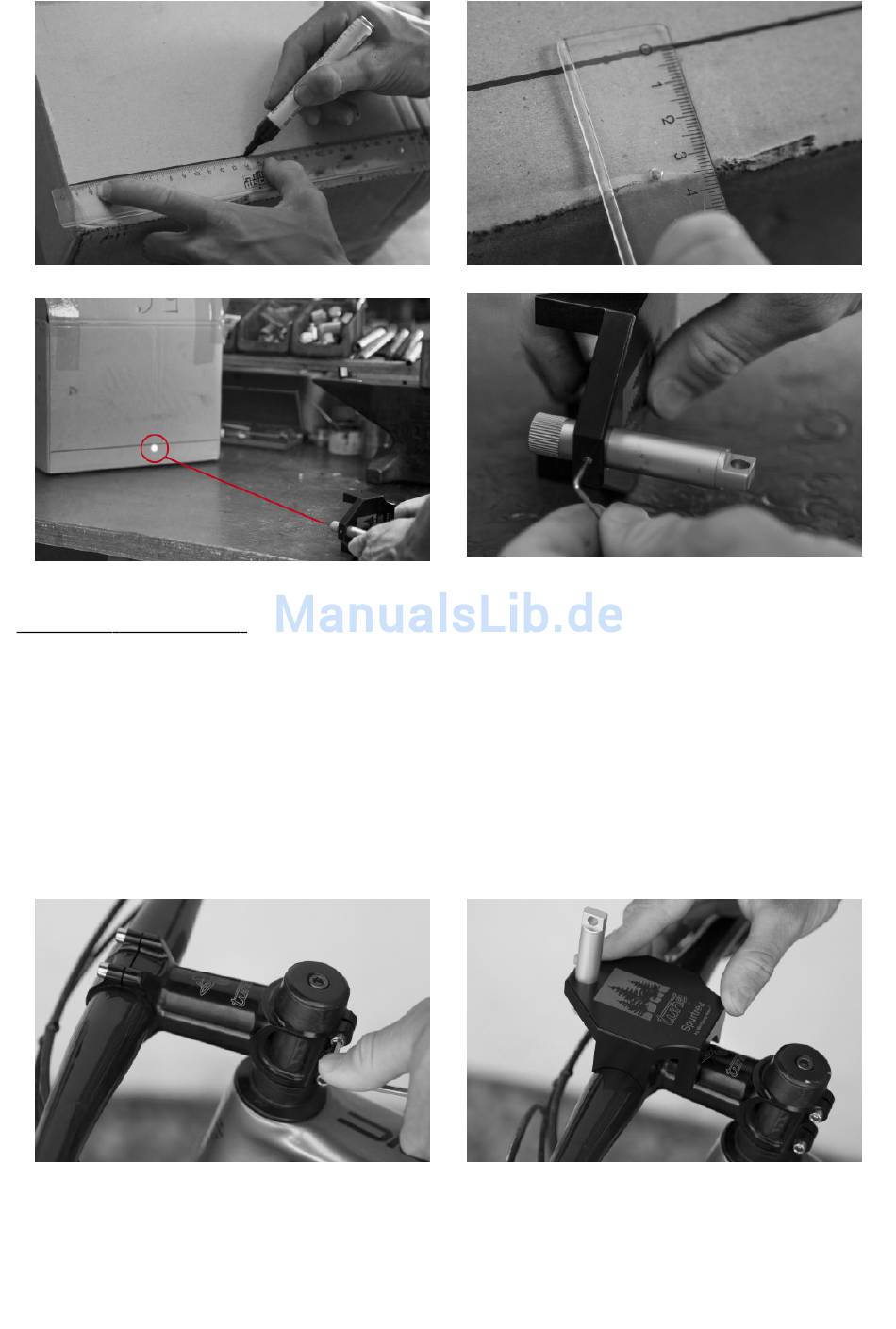

assembly - instructions :
The Tune Tool Spurtreu enables an exact alignment of the stem in relation to the front-wheel thus ensuring a
stable straight-ahead driving.
1. Release the stem-screws clamping the steerer tube so that it is possible to change the position of the
stem (see figure 5).
2. Put the Spurtreu on top of the stem and handlebar as shown in figure 6.
3. Use the laserpointer to position the stem in a way that the laser points at the middle of the front-wheel
(see figure 7).
4.
Tighten the stem-screws (pay attention to the given torque of the stem and the steerer tube) (see
figure 8).
figure 5
figure 2
figure 4
figure 6
