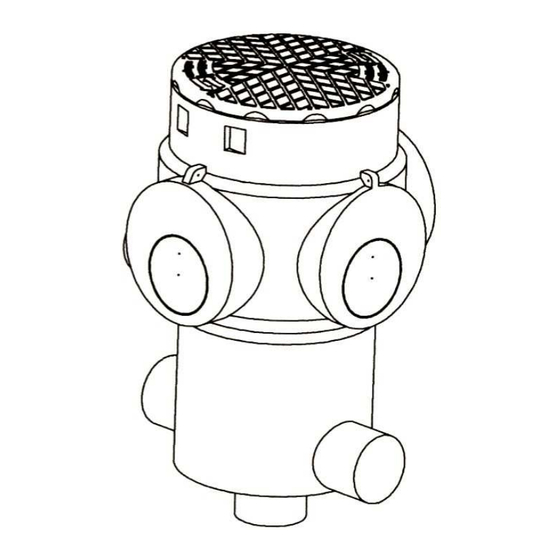

Technische Dokumentation 1. Einsatzbereich Der Filter Maxi wird für die mechanische Reinigung des Regenwasserzulaufs für Regenwasseranlagen, Versickerungsanlagen und Teiche eingesetzt. Die Durchlassweite der Maschen beträgt 0,9 mm, so dass eine feine Filterung erfolgt. Die maximal anschließbare Fläche (Dach, Terrasse) beträgt ca. 350 m². Der Filter enthält in der Grundausstattung einen Deckel, der für den Einbau in...
Der Stutzen „N“ kann als Notüberlauf genutzt werden. 3. Betrieb/Wartung Um eine störungsfreie Funktion zu gewährleisten muss der Filterkorb regelmäßig entleert und gegebenenfalls gereinigt werden. Die Reinigungsintervalle sind für jede Installation durch regelmäßige Kontrolle individuell festzulegen. Vorfilter Maxi/Prefilter Maxi DORW3106 14.01.2010 3/12...
Die Rohrverlängerung ist in einem Bereich von 70mm durch schieben stufenlos höhenverstellbar darüber hinaus durch absägen kürzbar oder durch stapeln verlängerbar, so dass sich beliebige Einbautiefen bis maximal zulässig 1,5 m. Filtergehäuse mit Rohrverlängerung Vorfilter Maxi/Prefilter Maxi DORW3106 14.01.2010 4/12...
Information in Anleitung DORW2127 sowie Punkt 3 Bilder 10, 13 und 16. Mindestabstand 800 mm zwischen Schulterhöhe Tank und Oberkante Fahrbahnbelag. REWATEC GmbH Januar 2010 Technische Änderungen und Rechte vorbehalten. Keine Haftung für Druckfehler Die Inhalte der technischen Dokumentation sind Bestandteil der Garantiebedingungen Es sind bei Planung und Einbau die einschlägigen Normen und andere Regelwerke sowie die Unfallverhütungsvorschriften zu...
Technical documentation 1. Application area The filter Maxi is used for the mechanical cleaning of the rainwater inflow for rainwater plants, seepage plants and ponds. The width of the mesh (0.9 mms), assures a very fine filtering The maximum connectable surface (roof, terrace) is approximately 350 m².
The opening "N" can be used as an auxiliary overflow. 3. Operation/Servicing To guarantee quality filtering the filter basket must be emptied regularly and be cleaned as necessary. The frequency of cleaning is determined by checking the filter regularly. Vorfilter Maxi/Prefilter Maxi DORW3106 14.01.2010 7/12...
70 mms at a time or to shorten it can be sawn off to size. The maximum installation depth allowed 1.5 m. Filter body with pipe extension Vorfilter Maxi/Prefilter Maxi DORW3106 14.01.2010 8/12...
100 mms under the top edge of the ground. 5. The rest filling can be chosen arbitrarily A Filling material according to point 5. B Filling with excavated soil or similar C surrounding ground Vorfilter Maxi/Prefilter Maxi DORW3106 14.01.2010 9/12...
Seite 10
DORW2127 as well as point 3 Pictures 10, 13 and 16. There must be a minimum distance of 800 mm between the top of the filter and road surface. REWATEC GmbH January 2010 Technical changes and rights reserved. No liability for misprints The contents of the technical documentation are a component of the guarantee terms Planning and installation regulations are to be followed, as well as the accident prevention regulations.
