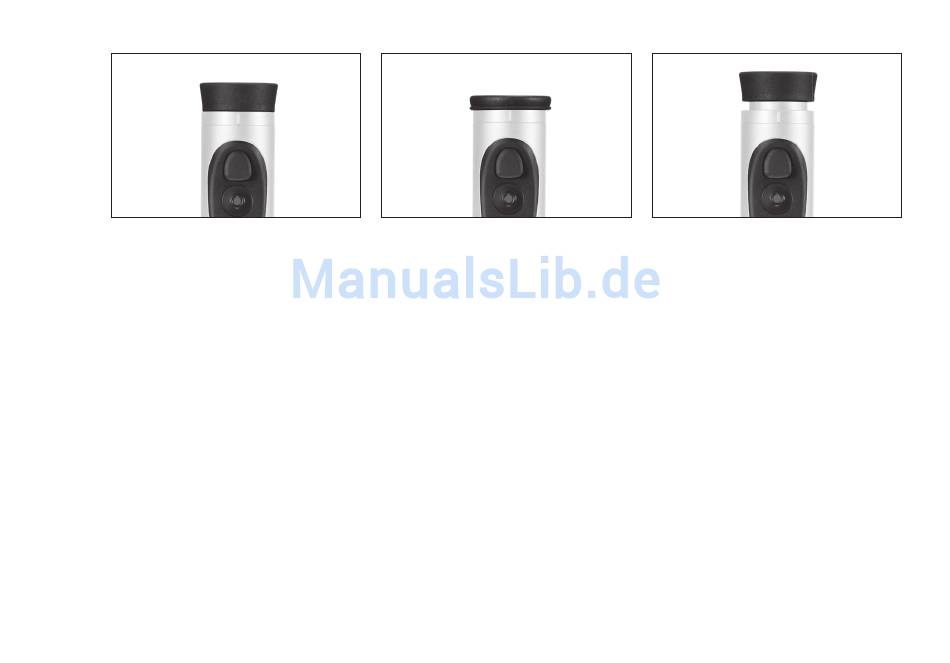

use wIth and wIthout glasses

If you are not wearing glasses, leave the rubber
eyecup (3) folded up, as it comes (Figure a). This
position gives the correct distance between the eye
and the LEIca PINmaSTEr.
When viewing with glasses, fold down the eyecup
(Figure B).
B

dIoPter coMPensatIon

The diopter compensator allows you to adjust the
sharpness of the target mark to suit you best. Simply
target the LEIca PINmaSTEr on some far away object
and turn the eyecup (3) until the target mark is as
sharp as possible. The target mark can be seen by
pressing the main button (2). The degree of compen-
sation can be read off the "+" or "–" scale (3a) on
the eyecup.
compensation within the range of ±3.5 diopters is
possible.
