Operating instructions
DVB-T2 antenna (outdoor)
Item no.
1435486
Intended use
The antenna is used to receive and amplify terrestrial broadcast radio signals. It is approved for connection
to the antenna inputs of appropriate receivers only.
As a power source, use only the power adapter included or the enclosed car adaptor in combination with the
enclosed phantom power adapter or the 5 V phantom power of a receiver. The power adapter is approved
for the connection to AC voltage of 230 V/50 Hz only; the car adapter should be connected to an on-board
voltage network with a voltage of 12-24 V/DC only.
The antenna is suitable for outdoor use. However, the power adapter, the car adapter, and the phantom
power adapter may only be used indoors.
For safety reasons, you may not convert and/or alter the product. If you use the product for purposes other
than those described above, the product may be damaged. Furthermore, improper use may cause risks such
as short-circuits, fire, electric shocks, etc. Please read the operating instructions carefully and do not discard
them. If you pass the product on to a third party, please hand over these operating instructions as well.
This product complies with the applicable national and European regulations. All names of companies and
products are the trademarks of the respective owners. All rights reserved.
Package Contents
• Antenna
• Antenna base
• Pole mount
• Assembly base
• Power adapter
• Vehicle adapter
• Phantom power adapter
• Aerial lead
• Assembly material
• Operating instructions
Up-to-date operating instructions
Download the latest operating instructions via the link www.conrad.com/downloads or scan the QR code.
Follow the instructions on the website.

Explanation of symbols

The exclamation mark symbol indicates that important information is included in these ope-
rating instructions.
The symbol with lightning in a triangle is used when your health is at risk, e.g., through an
electric shock. The device does not contain parts that should be serviced by the user. Therefo-
re, do not open the device.
The arrow symbol indicates special tips and operating information.

Safety Instructions

Please read the operating instructions carefully and pay particular attention to the safety
instructions. We do not assume liability for injuries/material damages resulting from fai-
lure to observe the safety instructions and the information in these operating instructions
regarding the proper handling of the product. Furthermore, in such cases, the warranty/
guarantee will be null and void.
• The product is not a toy. Keep out of the reach of children and pets.
• Do not leave packaging material carelessly lying around. It may become a dangerous
plaything for children.
• The power supply unit has been constructed according to Protection Class II and may be
operated only on a public power supply outlet.
• Never touch the power supply with wet or damp hands. There is danger of a life-threatening
electric shock!
• Never replace a damaged power supply connection cable. If the connecting cable is damaged,
the power supply is unusable and must be disposed of. Repairs are not permitted.
• To fully disconnect the device from the mains, unplug the power adapter from the mains so-
cket.
• Never pour any liquids above electrical devices. Do not place any containers with liquids, such
as buckets, vases or plants, in the immediate proximity of the product. Liquids could get inside
the device and thus impair electrical safety. There is danger of fire or a life-threatening electric
shock! If liquid is spilled into the unit, switch off the respective mains socket (e.g., residual
current circuit breaker) and unplug the power supply from the socket. The product may no
longer be operated Take it to a specialist workshop.
• Do not place open flames, such as burning candles, on or near to the device.
• Use the device only in temperate climate regions and not in tropical ones.
• Protect the product from extreme temperatures, direct sunlight, strong vibrations and combus-
tible gases, vapours and solvents.
• Never expose the product to mechanical stress.
• If safe operation is no longer possible, take the device out of service and secure it against
unintended use. Safe operation is no longer possible, if the product:
- has visible damage,
- no longer functions properly,
- has been stored under adverse ambient conditions for an extended period of time or
- has been exposed to considerable strain during transport.
• Handle the product with care. It can be damaged by impact, blows, or by being dropped, even
from a low height.
• Also observe the safety and operating instructions of any other devices that are connected to
this product.
• If you have doubts about how the product should be operated, or about safety or the connec-
tion of the product, consult an expert.
• Maintenance, adjustment and repair work may be carried out only by an expert or a specialist
workshop.
• If you have any questions, that are not answered in these operating instructions, please con-
tact our technical customer service or another specialist.
Assembly
Ensure that the antenna is securely fastened when installed; people can get hurt by the
antenna falling off.
Do not damage any wires or pipes that may run past the mounting surface when drilling
holes.
Do not place the antenna near devices that can emit interference (e.g., microwave ovens, wi-
reless phones, powerful engines, etc.). You should also not install the device close to large
metal surfaces, because these may strongly dampen the receiving signal.
Mount the antenna as high as possible. Experience shows that this is where reception is best.
Check out first the reception at the place of installation by means of a temporary installation
and then decide on the final location.

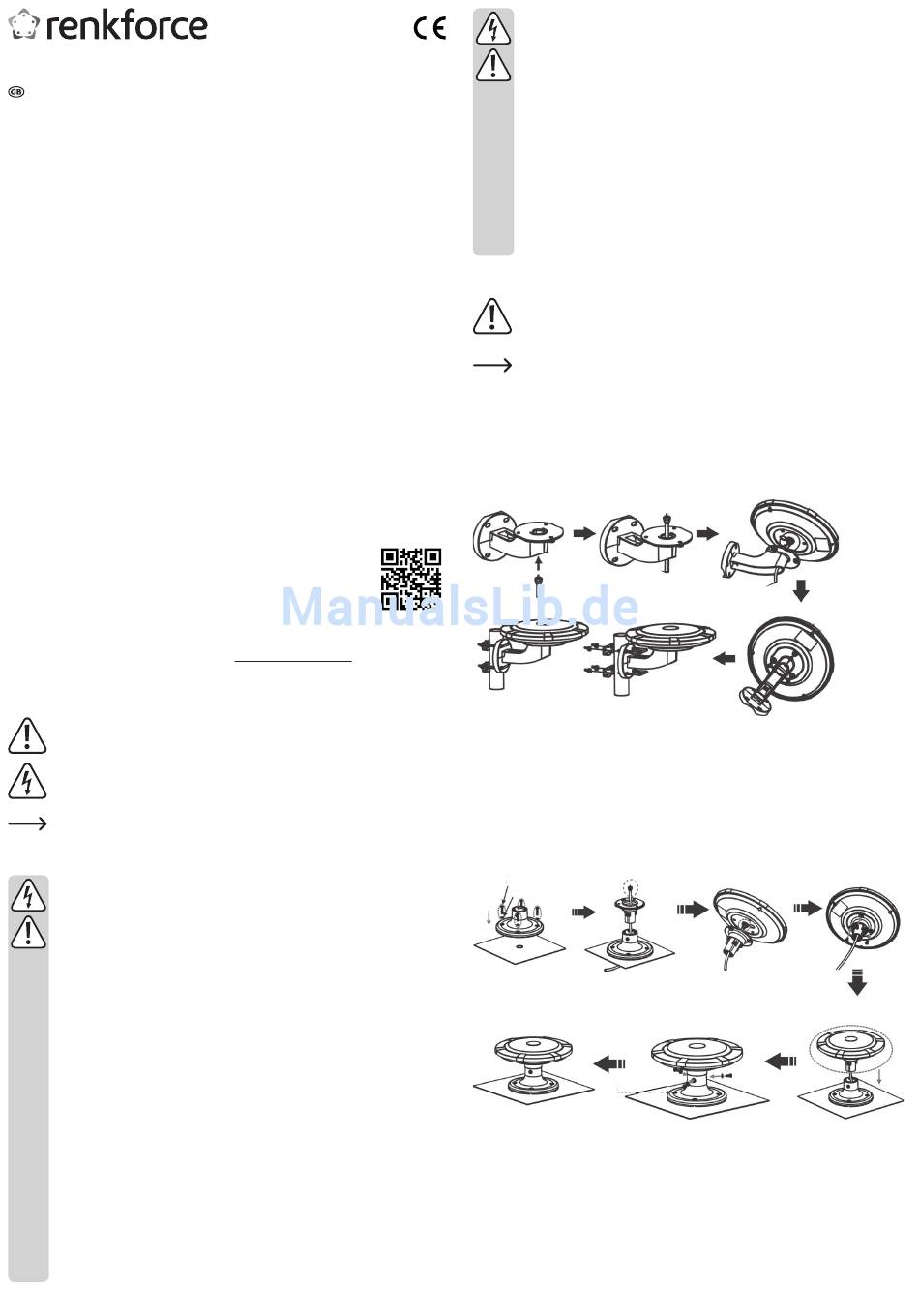

a) Pole installation
1 2
1 Remove the pole mount and the antenna cable from the packaging.
2 Feed the antenna cable from below through the opening of the pole mount.
3 Connect the antenna cable to the connector on the antenna.
4 Fasten the antenna to the pole mount by using three screws.
5 Fix the unit to the antenna pole using the U-bolts, pole clamps and the wing nuts.
b) Installation on caravan roof
1 2
3
5 4
3
6
4
5
