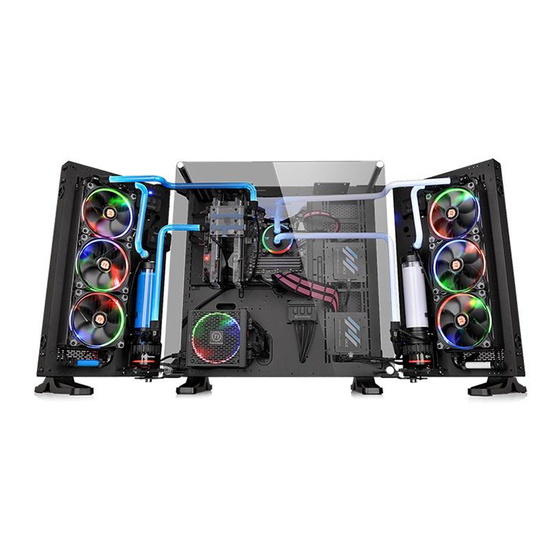

Thermaltake Core P7 TG Edition Benutzerhandbuch
Inhaltsverzeichnis
© 2017 Thermaltake Technology Co., Ltd. All Rights Reserved. 2017.01
All other registered trademarks belong to their respective companies.
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
www.thermaltake.com
C
ore
Picture is for reference only
User's Manual
安裝說明書
Benutzerhandbuch
用戶手冊
Mode d'emploi
ユーザーズマニュアル
Manual del usuario
Руководство пользователя
Manuale dell'utente
kullanıcı elkitabı
Manual do Utilizador
คู ่ ม ื อ การใช้
P
7
TG Edition
(EEE Yönetmeliğine Uygundur)
www.thermaltake.com
Inhaltsverzeichnis
Verwandte Anleitungen für Thermaltake Core P7 TG Edition
Inhaltszusammenfassung für Thermaltake Core P7 TG Edition
- Seite 1 (EEE Yönetmeliğine Uygundur) Manual do Utilizador คู ่ ม ื อ การใช้ © 2017 Thermaltake Technology Co., Ltd. All Rights Reserved. 2017.01 All other registered trademarks belong to their respective companies. www.thermaltake.com Tested To Comply With FCC Standards FOR HOME OR OFFICE USE www.thermaltake.com...
- Seite 2 LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
-
Seite 3: Inhaltsverzeichnis
Specification Case Type Full Tower Main Chassis: 608 x 333 x 570 mm (23.9 x 13.1 x 22.4 inch) Extended Chassis: Contents Dimension (H*W*D) 608 x 333 x 320 mm (23.9 x 13.1 x 12.6 inch) Assembling Chassis: 627 x 333 x 1350 mm (24.7 x 13.1 x 53.1 inch) Window Panel Tempered Glass (570 X 570 x 5mm) Drive Bays... -
Seite 4: Warning And Notice
Warning and Notice Atenção!! Limite de altura para o dissipador do CPU: O limite de altura para o dissipador do CPU é 180 mm (7,1 polegadas). Limite de comprimento para VGA (placa gráfica): O limite de comprimento para VGA (placa gráfica) é 280 mm (11 polegadas). 警告！！... -
Seite 5: Side Panels Disassembly
Power Supply Unit (PSU) Installation Side Panels Disassembly Main Chassis: Extended Chassis: Español / 1. Instale la PSU en la ubicación correcta. 2. Ajuste el puente de soporte de la PSU en la ubicación adecuada y asegúrela con tornillos. Italiano / 1. -
Seite 6: Motherboard Installation
Motherboard Installation 3.5" & 2.5" HDD Installation Type A Type B 3.5” HDD Installing to Chassis Installing to Motherboard Tray Locking clips For 3.5" HDD: Secure 3.5" HDD from both side of the HDD tray by locking clips. 2.5” HDD Remove this locking clip For 2.5"... - Seite 7 Exterior Type C English / 繁體中文 / 1. Pull the HDD tray out. 1. 將硬碟托盤取出 2. Place the 2.5” or 3.5” hard drive on the tray 2. 將2.5”或3.5”硬碟放置在硬碟托盤上，用螺絲固 and secure it with screws. 定硬碟 3. Slide the HDD tray back to the HDD cage. 3.
-
Seite 8: Pci Card Installation
PCI Card Installation Installing to Chassis Installing to extended bracket Type A Type B Install Riser Cable by screws Install PCI bracket by screws... -
Seite 9: Liquid Cooling Installation
Liquid Cooling Installation Extended Chassis: Main Chassis: Extended Chassis: 4 x 120mm Main Chassis: 3 x 140mm 4 x 120mm 3 x 120mm 3 x 140mm 2 x 140mm 3 x 120mm 2 x 140mm 48cm 48cm 42cm 42cm 36cm 36cm 28cm 28cm... -
Seite 10: Window Panel Installation
Window Panel Installation Chassis Installation - Horizontal Rubber Flat Rubber Horizontal Usage Fix foot-stand by screws Rubber Flat Rubber Rubber Flat Rubber Rubber Flat Rubber Chassis Installation -Vertical Vertical Usage Fix foot-stand by screws Main Chassis: Extended Chassis:... -
Seite 11: Chassis Installation Wall-Mounting
Chassis Installation Wall-mounting Assembling Chassis Wall-mounting Usage Thumb Screw M5 Wall-Mount Dimensions Hexagonal Screw M4 Unit: mm Washer M5 Hexagonal Screw M4 Washer M4 Screw Hole Dimension: M6 x 1 pitch (Bracket is not included) Washer M4 Hexagonal Screw M4 Washer M5 Thumb Screw M5... -
Seite 12: Case Led Connection
Leads Installation Français English Leads Installation Guide Guide d'installation des fils Case LED Connection / On the front of the case, you can find some LEDs and switch leads. Please consult your user Connexion des voyants du boîtier / Sur la face avant du boîtier, vous trouverez plusieurs voyants et les fils des manual of your motherboard manufacturer, then connect these leads to the panel header on the motherboard. - Seite 13 Italiano 繁體中文 Guida di installazione dei contatti 線材安裝說明 Connessione del LED del case / Nella parte anteriore del case, sono presenti alcuni contatti per interruttori e LED. 機殼LED連接方式 / 在機殼前方的面板後面，可以找到一些LED與開關線材（POWER Switch….），請參考主機板使用說明書， Consultare il manuale utente del produttore della scheda madre, quindi connettere i contatti alla parte superiore del 並將機殼上的線材正確地連接到主機板上，這些線材通常都會印有標籤在上面，如果沒有的話，請找出機殼前方面板上線材原...
