3.2.9 Fan Connector (CPU)

CN Label: CPU_FAN1
4-pin wafer, p=2.54 mm
CN Type:
CN Location: See Figure 3-10
CN Pinouts: See Table 3-10
The fan connector attaches to a CPU cooling fan.

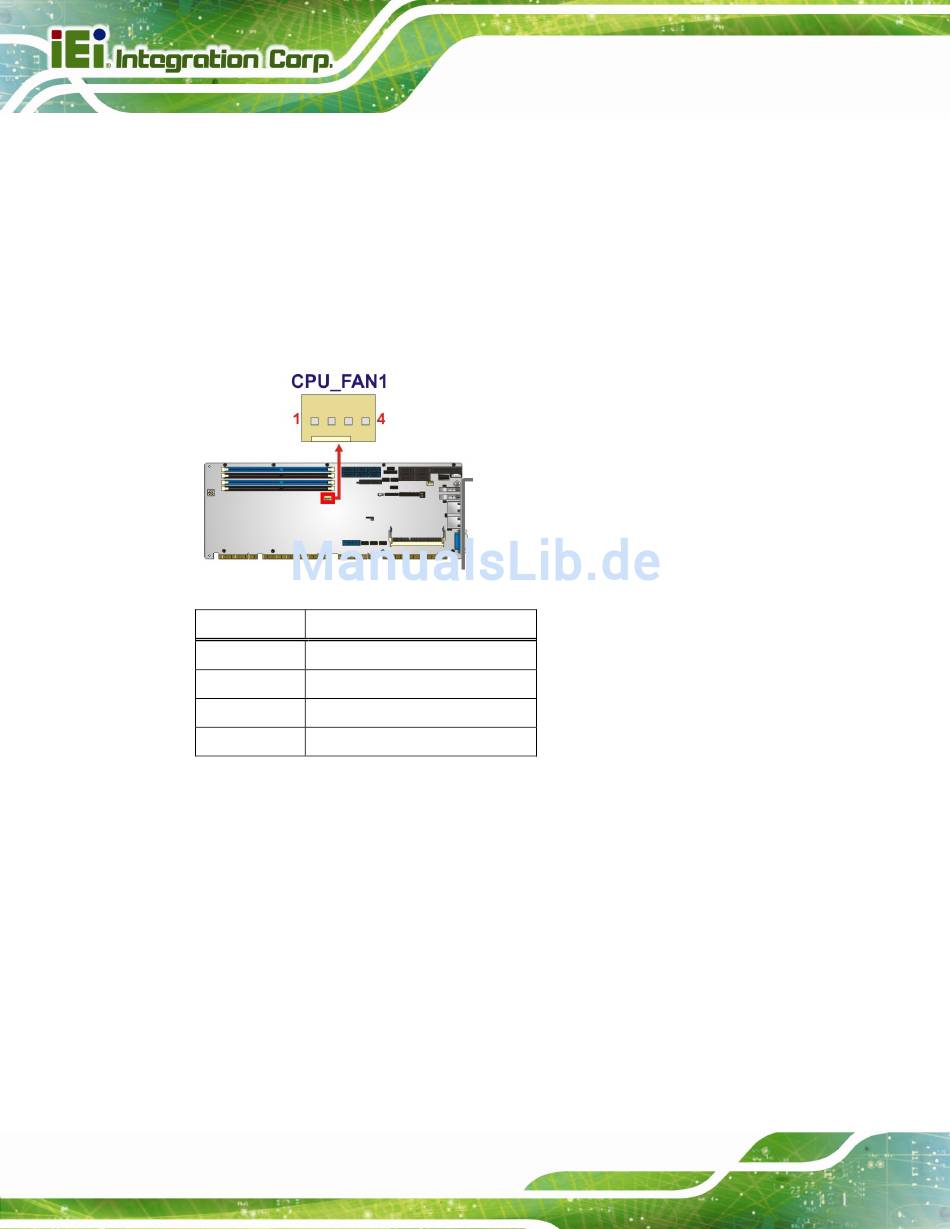

Figure 3-10: CPU Fan Connector Location

Pin Description
1 GND
2 +12V
3 FANIO
4 PWM

Table 3-10: CPU Fan Connector Pinouts

3.2.10 Fan Connectors (System)

CN Label: SYS_FAN1
CN Type: 3-pin wafer, p=2.54 mm
CN Location: See Figure 3-11
See Table 3-11
CN Pinouts:
Page 26
PCIE-Q170 Full-size PICMG 1.3 CPU Card
