SMART Board 600i5 Bedienungsanleitung

SMART Board 600i5 Bedienungsanleitung

Interactive whiteboard systems

Werbung

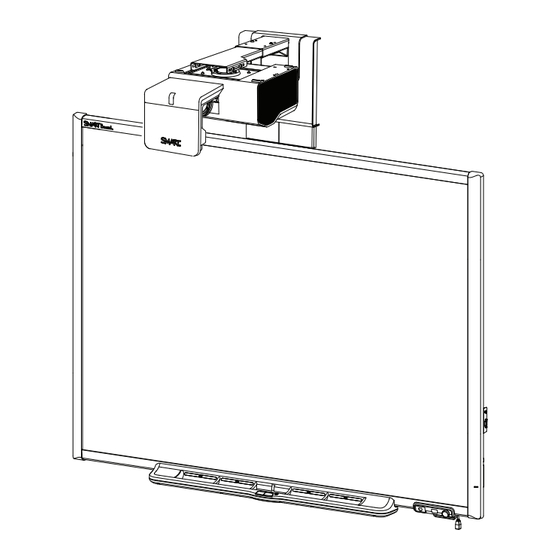

SMART Board® 600i5 and 600i5-MP interactive
whiteboard systems
For cautions, warnings and other important product information, see Important Information for SMART
Board® 600i5 series interactive whiteboard system users (smarttech.com/kb/131396).

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für SMART Board 600i5

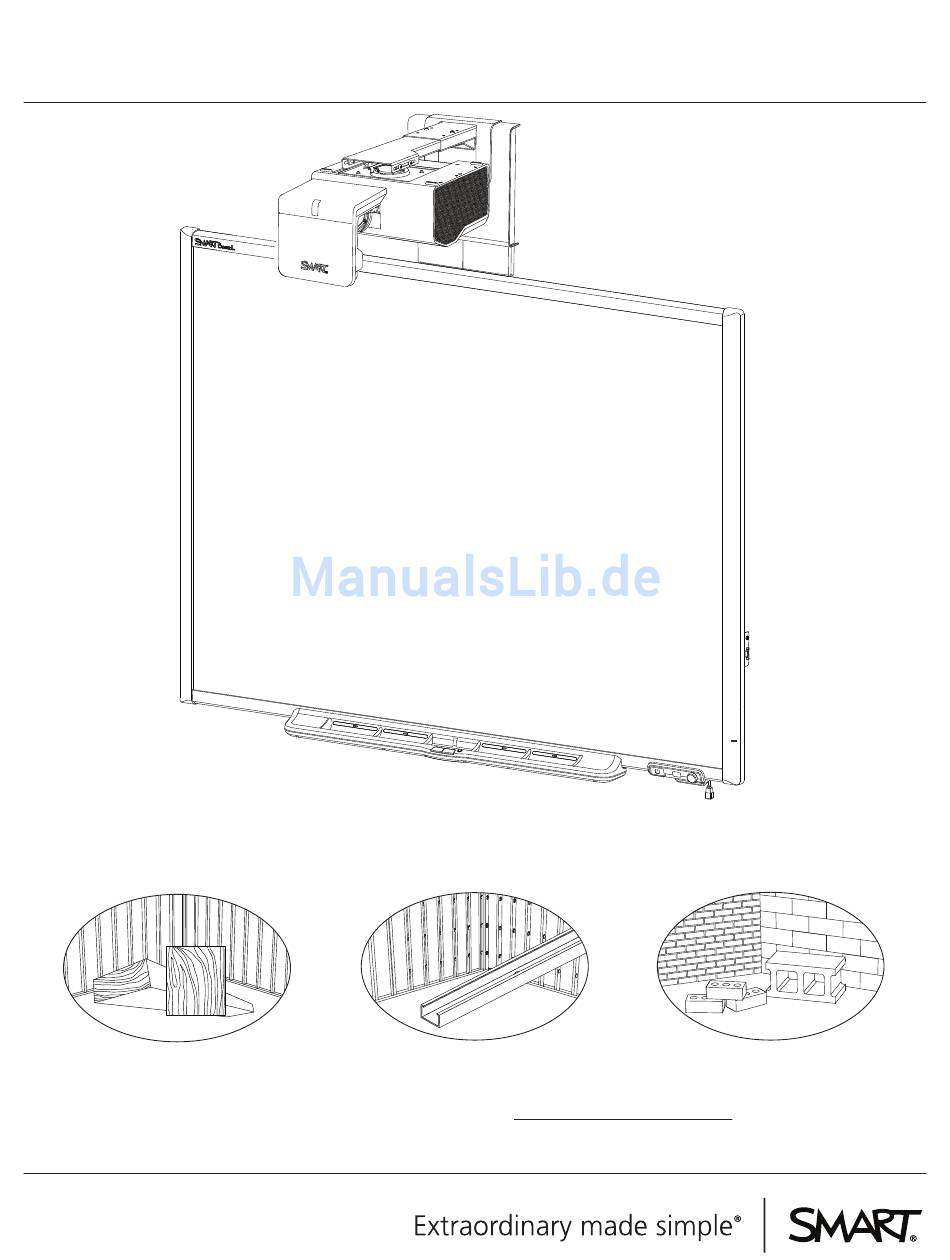

  • Seite 1 SMART Board® 600i5 and 600i5-MP interactive whiteboard systems For cautions, warnings and other important product information, see Important Information for SMART Board® 600i5 series interactive whiteboard system users (smarttech.com/kb/131396).
  • Seite 2 1017243 Rev 01...
  • Seite 3 In the event that you need to install your SMART product on reinforced concrete walls, walls with plaster lath finishing, walls of unusual construction or other types of walls, refer to your local building authority for instructions, recommendations, and safe work practices.
  • Seite 4 Au cas où vous deviez installer votre produit SMART sur un mur en béton armé, sur un mur de lattis, sur un mur de structure inhabituelle ou un autre type de mur, consultez votre service de l'urbanisme pour qu'il vous fournisse des instructions, des recommandations et vous dise comment travailler en toute sécurité.
  • Seite 5 Seu produto SMART inclui instruções e peças para instalação em paredes de metal e viga de madeira e somente em determinados tipos de parede de alvenaria. Caso você precise instalar seu produto SMART em parede de concreto reforçado, em paredes com acabamento em placas de argamassa, paredes de construção pouco comuns ou outros tipos de...
  • Seite 6 SMART Board 600 series interactive whiteboard SB660 / SB680 / SB685 / SB690 65 5/8" (166.9 cm) 49 1/4" 77 1/2" (125.1 cm) (196.9 cm) ×7 ×7 ×2 SB680 ×2 SB685/ (×12) (×7) SB690 SB660 (×7) (×12) Extended control panel (ECP) r (×2)
  • Seite 7: Inhaltsverzeichnis

    SMART UF75 or SMART UF75w projector 94” 77” 87” 64” " " " " q (×7) c (×2) d (×2) f (×7) g (×7) h (×7) k (×3) w (×1) y (×2) 1017243 Rev 01...
  • Seite 8 ×2 1/4" (6 mm) 1/2" (13 mm) 10 mm (5 mm) ×2 ×2 Composite HDMI RS-232 RJ-45 3.5 mm S-Video Video 3.5 mm 3.5 mm SB660 SB680 z (×7) y (×7) SB685 SB690 z (×12) y (×12) 1017243 Rev 01...
  • Seite 9 1017243 Rev 01...
  • Seite 10 94” 77” 87” " 64” " " "   All of the lines that you draw to install the SB600i5/SB600i5-MP must be straight and level on a plumb wall. You must install the unit straight, level and plumb for it to operate properly. SB600i5/SB600i5-MP Všechny čáry, které...
  • Seite 11 Las líneas que trace para instalar la pizarra SB600i5/SB600i5-MP deben estar bien derechas y a nivel respecto de la pared. Para que la unidad funcione correctamente, también se la deberá instalar bien derecha y a nivel. Kaikki viivat, jotka vedät SB600i5/SB600i5-MP:n asentamiseksi on oltava suoria ja vaakasuorassa pystysuor- assa seinässä.
  • Seite 12 ≥ 55.5" (141 cm) ≥ 50" (127 cm) interactive whiteboard interactive whiteboard 78.1/2" (199 cm) 1017243 Rev 01...
  • Seite 13 1017243 Rev 01...
  • Seite 14: Q (×7)

    1/2" (13 mm) q (×4) k (×1) 1/4" (6 mm) 1/2" (13 mm) q (×7) 1017243 Rev 01...
  • Seite 15 If you have a metal stud wall, drill the holes twice according to these instructions. Jestliže máte kovové příčky, vyvrtejte díry dvakrát dle tohoto návodu. Hvis du har en væg med metalstolper, skal der bores huller, som er dobbelt så store som angivet i disse instruktioner.
  • Seite 16 1 3/4" (45 mm) 1/4" (6 mm) f (×7) h (×2) h (×3) g (×3) 1017243 Rev 01...
  • Seite 17 94” 77” 87” 64” " " " " 1017243 Rev 01...
  • Seite 18 1/4" (6 mm) h (×2) k (×2) h (×4) g (×4) 1017243 Rev 01...
  • Seite 19 1017243 Rev 01...
  • Seite 20: C (×2)

    c (×2) " " " " " " " SB660 " c (×2) " " " " c (×2) SB680 c (×2) " " " " " " " " SB685 SB690 SB680 SB690 SB685 SB660 1017243 Rev 01...
  • Seite 21 w (×1) 1017243 Rev 01...
  • Seite 22 1017243 Rev 01...
  • Seite 23 1017243 Rev 01...
  • Seite 24 SB660 y (×5) a (×5) SB680 z (×5) b (×5) y (×10) a (×10) SB685 b (×10) z (×10) SB690 ×2 ×2 SB685 SB660 SB690 SB680 4" (10.2 cm) 1017243 Rev 01...
  • Seite 25 5×/10× 5×/10× 1/2" 1/4" (13 mm) (6 mm) a (×5/×10) y (×5/×10) b (×5/×10) z (×5/×10) 1017243 Rev 01...
  • Seite 26 4× 1017243 Rev 01...
  • Seite 27 1017243 Rev 01...
  • Seite 28: F (×7)

    Service Control DC 5V 2A DC 5V 2A Control Control Panel Panel VGA 2 VGA 1 VGA Out Network HDM1 S-Video Composite Video RS-232 HDMI 3.5 mm S-Video 3.5 mm 3.5 mm 1017243 Rev 01...
  • Seite 29 SB660 SB685 SB680 SB690 smarttech.com/kb/142552 s (×2) 1017243 Rev 01...
  • Seite 30 1017243 Rev 01...
  • Seite 31 r (×2) 4.5" (11.4 cm) 6" (15.2 cm) 1017243 Rev 01...
  • Seite 32 SB685i5 ×2 SB690i5 SB660i5 SB680i5 1017243 Rev 01...
  • Seite 33 3.5 mm 1017243 Rev 01...
  • Seite 34 SB600i5-MP CAT5-XT-1100 d (×2) Composite Video 1017243 Rev 01...
  • Seite 35 1017243 Rev 01...
  • Seite 36 RJ-45 1017243 Rev 01...
  • Seite 37 Input Menu Hide Display Mode Mute 1017243 Rev 01...
  • Seite 38 4× 4× 1017243 Rev 01...
  • Seite 39 1017243 Rev 01...
  • Seite 40 1017243 Rev 01...
  • Seite 41 1017243 Rev 01...
  • Seite 42 y (×2) a (×2) z (×2) b (×2) 3 1/2″ (8.9 cm) 1017243 Rev 01...
  • Seite 43 2× 1/4" (6 mm) a (×2) y (×2) b (×2) z (×2) 1017243 Rev 01...
  • Seite 44 2× y (×2) 2× 1017243 Rev 01...
  • Seite 45 1017243 Rev 01...
  • Seite 46 SB600i5 SB600i5-MP VGA 1 3.5 mm SB600i5 1017243 Rev 01...
  • Seite 47 SMART Board 600i5-MP CAT5-XT-1100 SMART GoWire auto-launch cable VGA 2 3.5 mm SB600i5-MP CAT5 XT-1100 SMART GoWire auto-launch cable SB600i5-MP SMART GoWire auto-launch cable smarttech.com\kb\147790 SMART GoWire™ Auto-Launch Cable (GW-MP, GW-MPP) SMART Board™ 600i5 and D600i5 Interactive SBX800i4 Whiteboard System Configuration and User’s Guide...
  • Seite 48: Packaging

    Batteries are regulated in many countries. Check with your reseller to find out how to recycle used batteries. There are special regulations that must be met when shipping a product that has a lithium ion battery packaged with the product or shipping a lithium ion battery. When returning a SMART...
