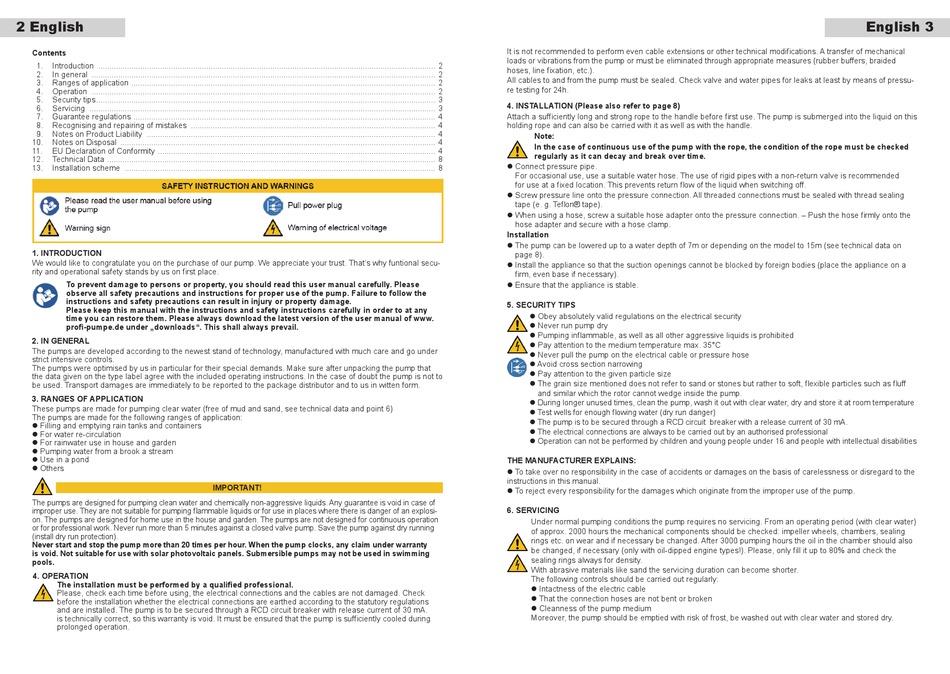

2 English
contents
1.
Introduction ......................................................................................................................................................... 2
2.
In general ............................................................................................................................................................ 2
3.
Ranges of application .......................................................................................................................................... 2
4.
Operation ............................................................................................................................................................ 2
5.
Security tips .......................................................................................................................................................... 3
6.
Servicing ............................................................................................................................................................. 3
7.
Guarantee regulations ......................................................................................................................................... 4
8.
Recognising and repairing of mistakes ............................................................................................................... 4
9.
Notes on Product Liability ................................................................................................................................... 4
10.
Notes on Disposal ............................................................................................................................................... 4
11.
EU Declaration of Conformity .............................................................................................................................. 4
12.
Technical Data ..................................................................................................................................................... 8
13.
Installation scheme ............................................................................................................................................. 8
1. iNTrODucTiON
We would like to congratulate you on the purchase of our pump. We appreciate your trust. That's why funtional secu-
rity and operational safety stands by us on first place.
To prevent damage to persons or property, you should read this user manual carefully. Please
observe all safety precautions and instructions for proper use of the pump. Failure to follow the
instructions and safety precautions can result in injury or property damage.
Please keep this manual with the instructions and safety instructions carefully in order to at any
time you can restore them. Please always download the latest version of the user manual of www.
profi-pumpe.de under „downloads". This shall always prevail.
2. iN GeNeral
The pumps are developed according to the newest stand of technology, manufactured with much care and go under
strict intensive controls.
The pumps were optimised by us in particular for their special demands. Make sure after unpacking the pump that
the data given on the type label agree with the included operating instructions. In the case of doubt the pump is not to
be used. Transport damages are immediately to be reported to the package distributor and to us in witten form.
3. raNGeS OF aPPlicaTiON
These pumps are made for pumping clear water (free of mud and sand, see technical data and point 6)
The pumps are made for the following ranges of application:
l Filling and emptying rain tanks and containers
l For water re-circulation
l For rainwater use in house and garden
l Pumping water from a brook a stream
l Use in a pond
l Others
The pumps are designed for pumping clean water and chemically non-aggressive liquids. Any guarantee is void in case of
improper use. They are not suitable for pumping flammable liquids or for use in places where there is danger of an explosi-
on. The pumps are designed for home use in the house and garden. The pumps are not designed for continuous operation
or for professional work. Never run more than 5 minutes against a closed valve pump. Save the pump against dry running
(install dry run protection).
Never start and stop the pump more than 20 times per hour. When the pump clocks, any claim under warranty
is void. Not suitable for use with solar photovoltaic panels. Submersible pumps may not be used in swimming
pools.
4. OPeraTiON
The installation must be performed by a qualified professional.
Please, check each time before using, the electrical connections and the cables are not damaged. Check
before the installation whether the electrical connections are earthed according to the statutory regulations
and are installed. The pump is to be secured through a RCD circuit breaker with release current of 30 mA.
is technically correct, so this warranty is void. It must be ensured that the pump is sufficiently cooled during
prolonged operation.
imPOrTaNT!
It is not recommended to perform even cable extensions or other technical modifications. A transfer of mechanical
loads or vibrations from the pump or must be eliminated through appropriate measures (rubber buffers, braided
hoses, line fixation, etc.).
All cables to and from the pump must be sealed. Check valve and water pipes for leaks at least by means of pressu-
re testing for 24h.
4. iNSTallaTiON (Please also refer to page 8)
Attach a sufficiently long and strong rope to the handle before first use. The pump is submerged into the liquid on this
holding rope and can also be carried with it as well as with the handle.
Note:
in the case of continuous use of the pump with the rope, the condition of the rope must be checked
regularly as it can decay and break over time.
l Connect pressure pipe.
For occasional use, use a suitable water hose. The use of rigid pipes with a non-return valve is recommended
for use at a fixed location. This prevents return flow of the liquid when switching off.
l Screw pressure line onto the pressure connection. All threaded connections must be sealed with thread sealing
tape (e. g. Teflon® tape).
l When using a hose, screw a suitable hose adapter onto the pressure connection. – Push the hose firmly onto the
hose adapter and secure with a hose clamp.
installation
l The pump can be lowered up to a water depth of 7m or depending on the model to 15m (see technical data on
page 8).
l Install the appliance so that the suction openings cannot be blocked by foreign bodies (place the appliance on a
firm, even base if necessary).
l Ensure that the appliance is stable.
5. SecuriTy TiPS
l Obey absolutely valid regulations on the electrical security
l Never run pump dry
l Pumping inflammable, as well as all other aggressive liquids is prohibited
l Pay attention to the medium temperature max. 35°C
l Never pull the pump on the electrical cable or pressure hose
l Avoid cross section narrowing
l Pay attention to the given particle size
l The grain size mentioned does not refer to sand or stones but rather to soft, flexible particles such as fluff
and similar which the rotor cannot wedge inside the pump.
l During longer unused times, clean the pump, wash it out with clear water, dry and store it at room temperature
l Test wells for enough flowing water (dry run danger)
l The pump is to be secured through a RCD circuit breaker with a release current of 30 mA.
l The electrical connections are always to be carried out by an authorised professional
l Operation can not be performed by children and young people under 16 and people with intellectual disabilities
The maNuFacTurer exPlaiNS:
l To take over no responsibility in the case of accidents or damages on the basis of carelessness or disregard to the
instructions in this manual.
l To reject every responsibility for the damages which originate from the improper use of the pump.
6. SerViciNG
Under normal pumping conditions the pump requires no servicing. From an operating period (with clear water)
of approx. 2000 hours the mechanical components should be checked: impeller wheels, chambers, sealing
rings etc. on wear and if necessary be changed. After 3000 pumping hours the oil in the chamber should also
be changed, if necessary (only with oil-dipped engine types!). Please, only fill it up to 80% and check the
sealing rings always for density.
With abrasive materials like sand the servicing duration can become shorter.
The following controls should be carried out regularly:
l Intactness of the electric cable
l That the connection hoses are not bent or broken
l Cleanness of the pump medium
Moreover, the pump should be emptied with risk of frost, be washed out with clear water and stored dry.
English 3
