9

Operating and display elements

Operating elements:
1 ... On/off button
2 ... Light
3 ... + button
4 ... Mode/OK button
5 ... - button
Display elements:
6 ... Temperature and running time
indicator
7 ... Selection of temperature heating
circuit 1
8 ... Selection of temperature heating
circuit 2
9 ... Selection running time
A ... Selection of fan
10

Quick start

The control unit is switched on by pressing the button 1. The current cabin temperature now appears in the
display 6 and the indicator 7 lights up.
You can now change the desired temperature with the buttons 3 and 5. The indicator (6) fl ashes whilst setting.
Confi rm the temperature with the button 3 and the display 6 again shows the current cabin temperature.
Tip: If no button is activated for longer than 5 seconds, the control unit automatically adopts the target
temperature.
Now, using the button 4, change to the time symbol 8. You can now set the desired running time with the
buttons 3 and 5. See also Point 11.9 in this regard.
Confi rm the setting with the button 4 or wait until the control unit automatically adopts the setting. The display
6 now shows the remaining running time.
Tip: With the button 4 you can change between the symbols 7 8 9 and A. The display then shows the
respective actual value:
Tip: the control unit stores the settings upon switch-off by pressing the button 1. When the control unit is
switched on again with the button 1, the last settings are called up again.
Tip: the control unit only starts when the running time is >0.
WE DO IT FIRST.
Instructions for use for the user
1
7
8
9
10
3
4
3 6

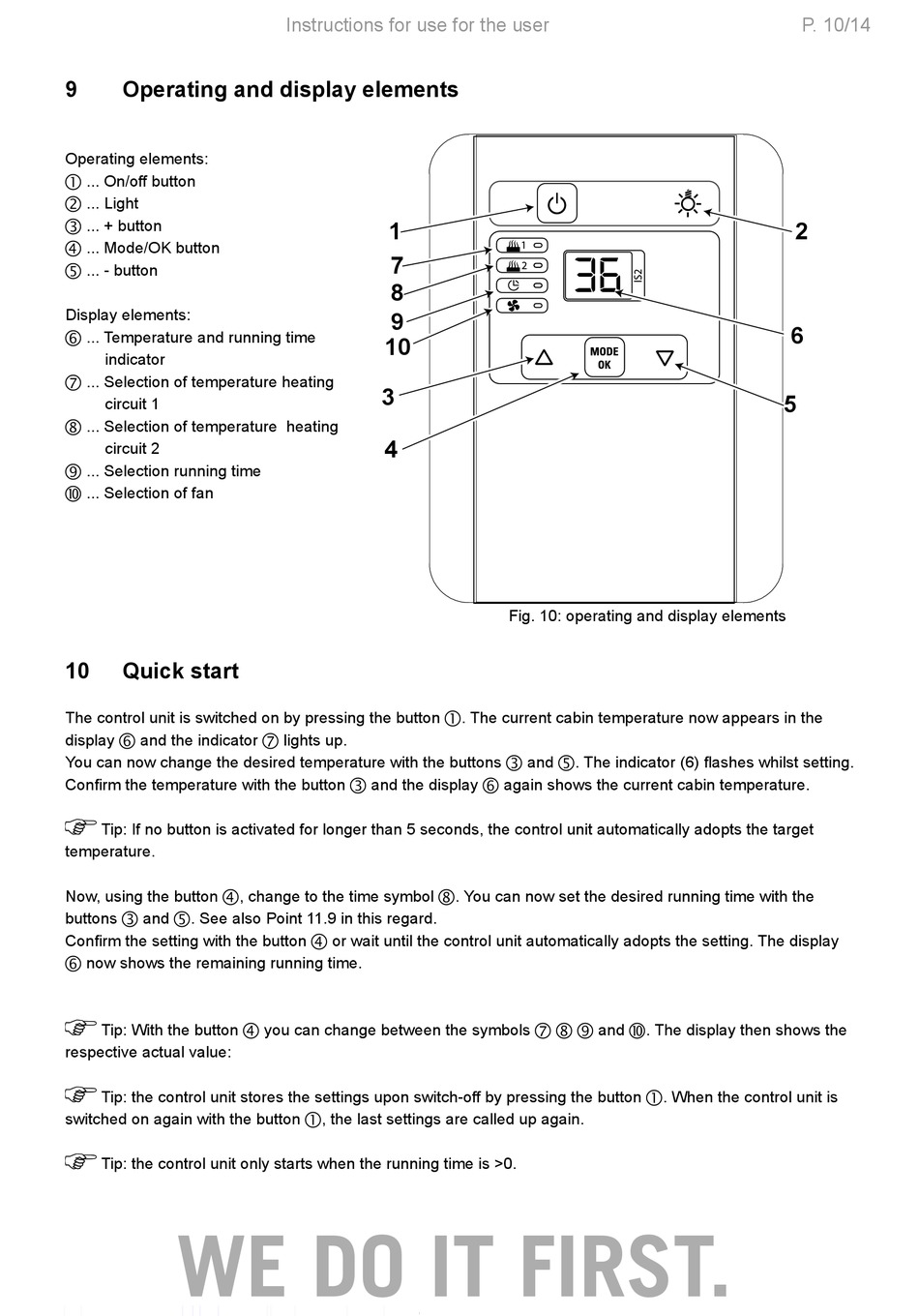

Fig. 10: operating and display elements
P. 10/14
2
6
5
