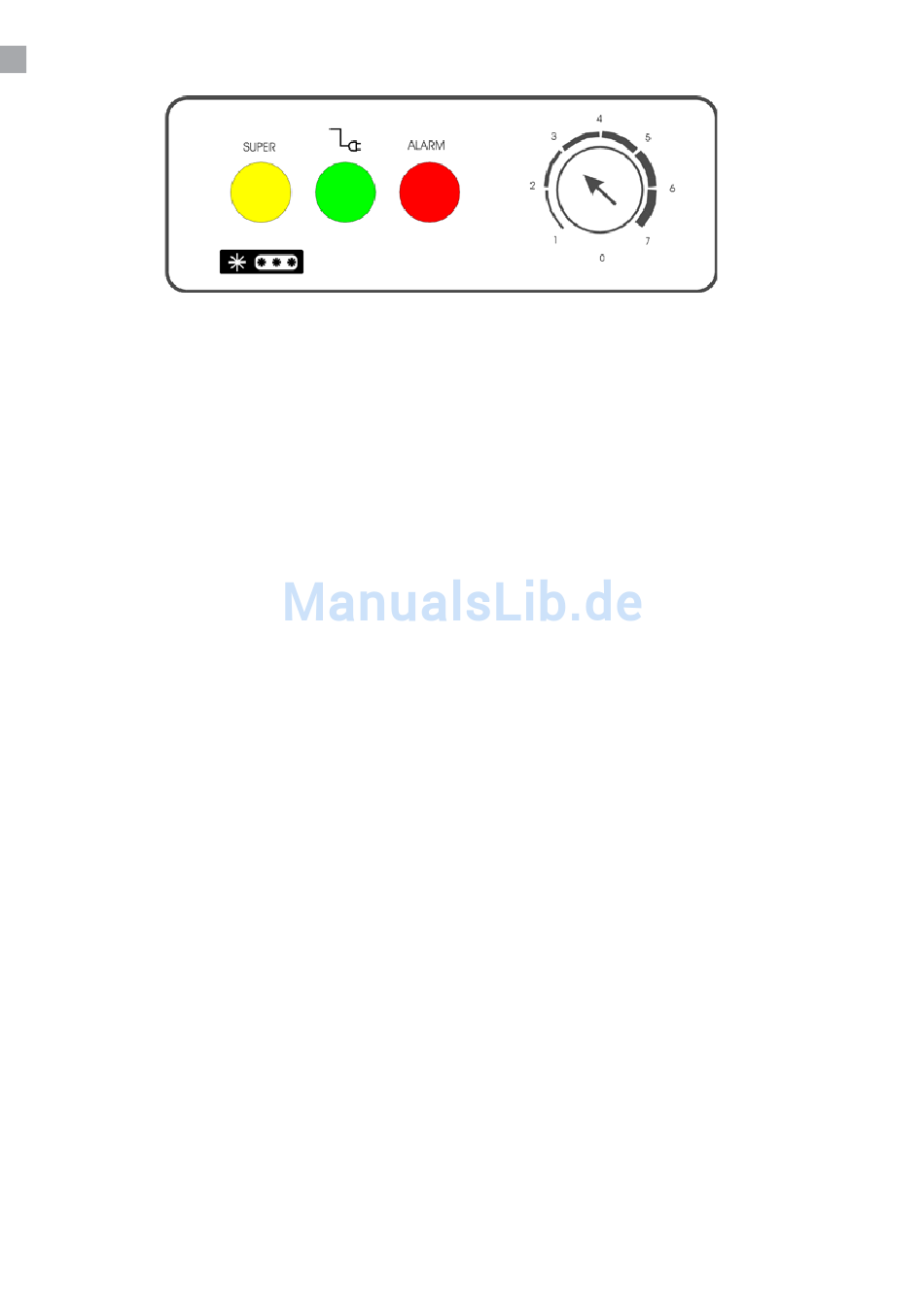

CONTROL PANEL

The thermostat can be adjusted on a scale from 1-7, which equals -15 to -25°C
Optimum positioning will in most cases be 3-4
The cooling system can be disconnected at position 0
The green light must always be switched on when the freezer is connected
The red light will be switched on at a temperature of -12°C or higher
Possible causes for an increase in temperature:
1. that the lid may have been kept open for too long time
2. that hot/fresh foods have been placed in the freezer recently
3. that there is a defect in the cooling system.
If the yellow knob/light is activated, this means that the quick-freeze mode is turned on, which has the
effect that the thermostat is disconnected and the cooling system runs constantly. This mode is used
when large quantities of fresh food are placed in the freezer at the same time.

QUICK FREEZING

We recommend turning on the quick freeze mode 24 hours prior to quick freezing of large quantities
of food.
Make room in the large compartment, so that the food can be placed in the bottom and close to the
sides of the freezer in order to obtain the most effective time of quick freezing.
If you need to quick freeze more items, let 24 hours pass in order to stabilize the freezer.
Remember to disconnect the quick freeze mode, as the compressor will otherwise run constantly and
use an undue amount of energy.
Please do not exceed the below-mentioned quantities for quick freeze
6
Model: Freezing capacity kg./24h:
FR205-I
FR305-I
FR405-I
FR505-I
FR605-I
13,0
18,0
25,0
28,0
39,0
