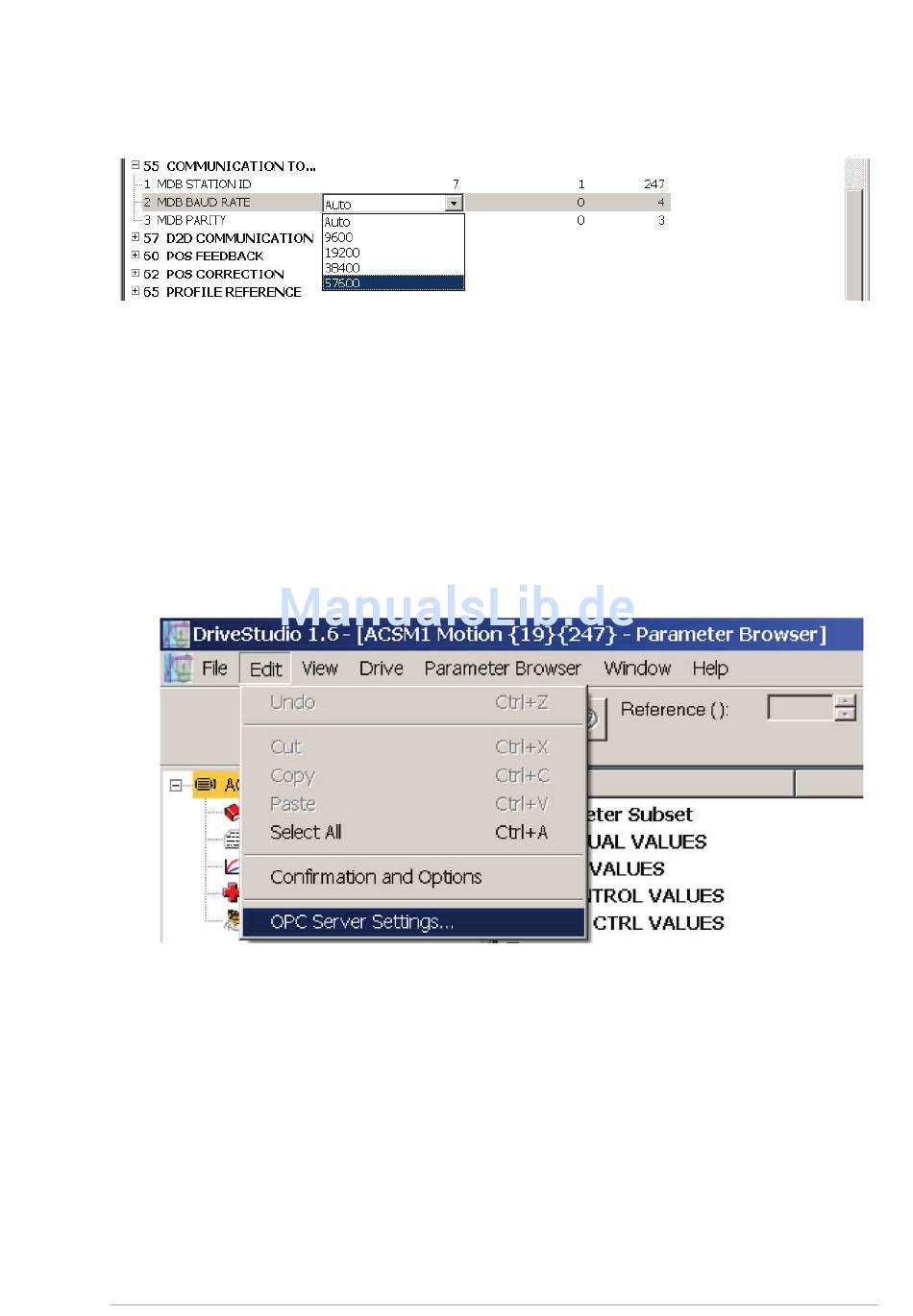

3. Set parameter 55.02 MDB BAUD RATE to the value of
57600 bit/s.
4. Repeat the procedure (steps 1...3) for the remaining drives;
connect the drives to the PC tool network one by one.
Note: The new settings for parameters 55.01 and 55.02 become
valid when the communication is interrupted either by restarting
DriveStudio, removing the communication cable or restarting the
JCU.
5. After having configured group 55 for each drive, select OPC
Server Settings from the Edit menu.
6. Launch the ABBCOMSAP server configuration window from
the taskbar.
•
COM Port shows all currently available COM ports.
•
Default (247) defines the node number that DriveStudio
uses when it communicates with the drives. With the box
ticked, the node number used is 247 which represents a
broadcast message to each drive (no response). With the
box unticked, the node number range during the scan
