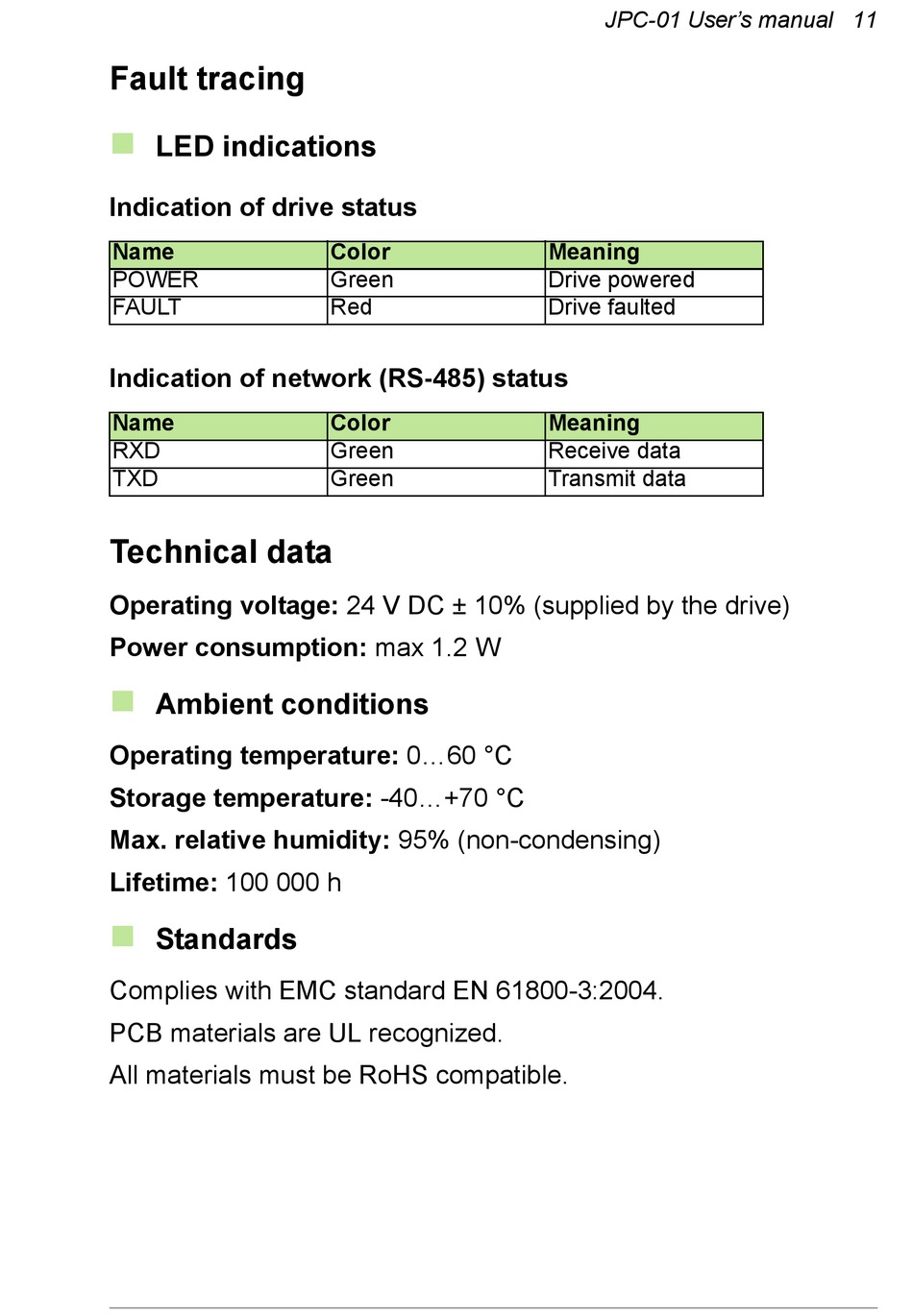

Fault tracing


LED indications
Indication of drive status
Name
POWER
FAULT
Indication of network (RS-485) status
Name
RXD
TXD

Technical data

Operating voltage: 24 V DC ± 10% (supplied by the drive)
Power consumption: max 1.2 W

Ambient conditions
Operating temperature: 0...60 °C
Storage temperature: -40...+70 °C
Max. relative humidity: 95% (non-condensing)
Lifetime: 100 000 h

Standards
Complies with EMC standard EN 61800-3:2004.
PCB materials are UL recognized.
All materials must be RoHS compatible.
Color
Green
Red
Color
Green
Green
JPC-01 User's manual 11
Meaning
Drive powered
Drive faulted
Meaning
Receive data
Transmit data
