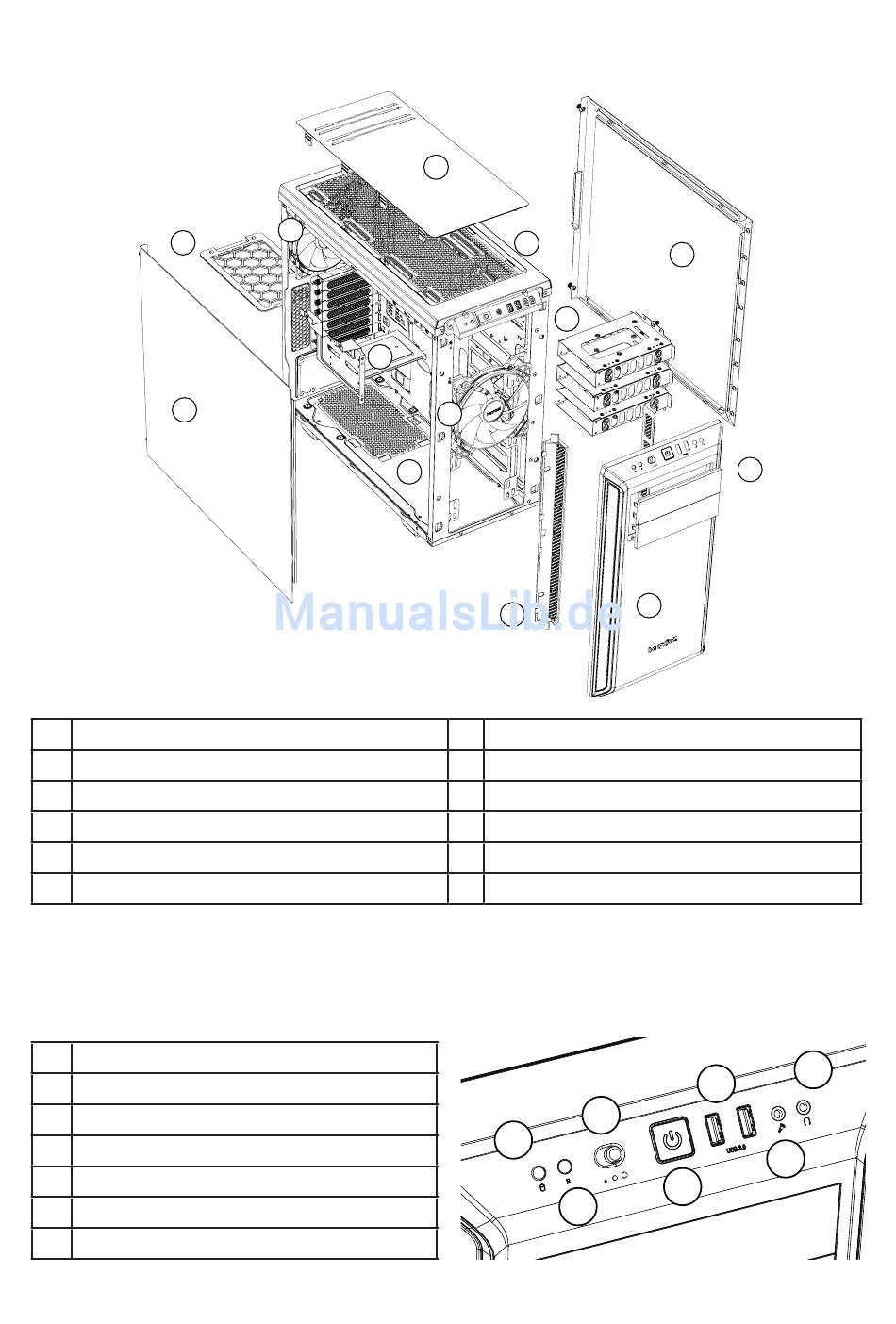

4. EXPLODED VIEW & PARTS
L
A
A Side Panel
B Front Panel
C 5.25" Bezels
D HDD Cages
E Intake Filters
F Pure Wings 2 | 140mm
4.1 Front I/O and Media Ports
A HDD LED
B Reset Button
C Fan Speed Controller
D Power Button / Power LED
E USB 3�0
F Microphone
G Headphone
6
J
M
H
F
I
K
D
E
H ODD cage
I Chassis Body
J Top Cover Bezel
K Front I/O panel / Fan Speed Controller
L PSU Air Filter
M Pure Wings 2 | 120mm
