Respect the polarity:
Phase = Brown
If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid danger.
Installation:
The electrical installation must comply with standards in the
country of installation (NFC 15-100 for France).
Check the tight fit of the wires into the terminals of the wall
outlet.

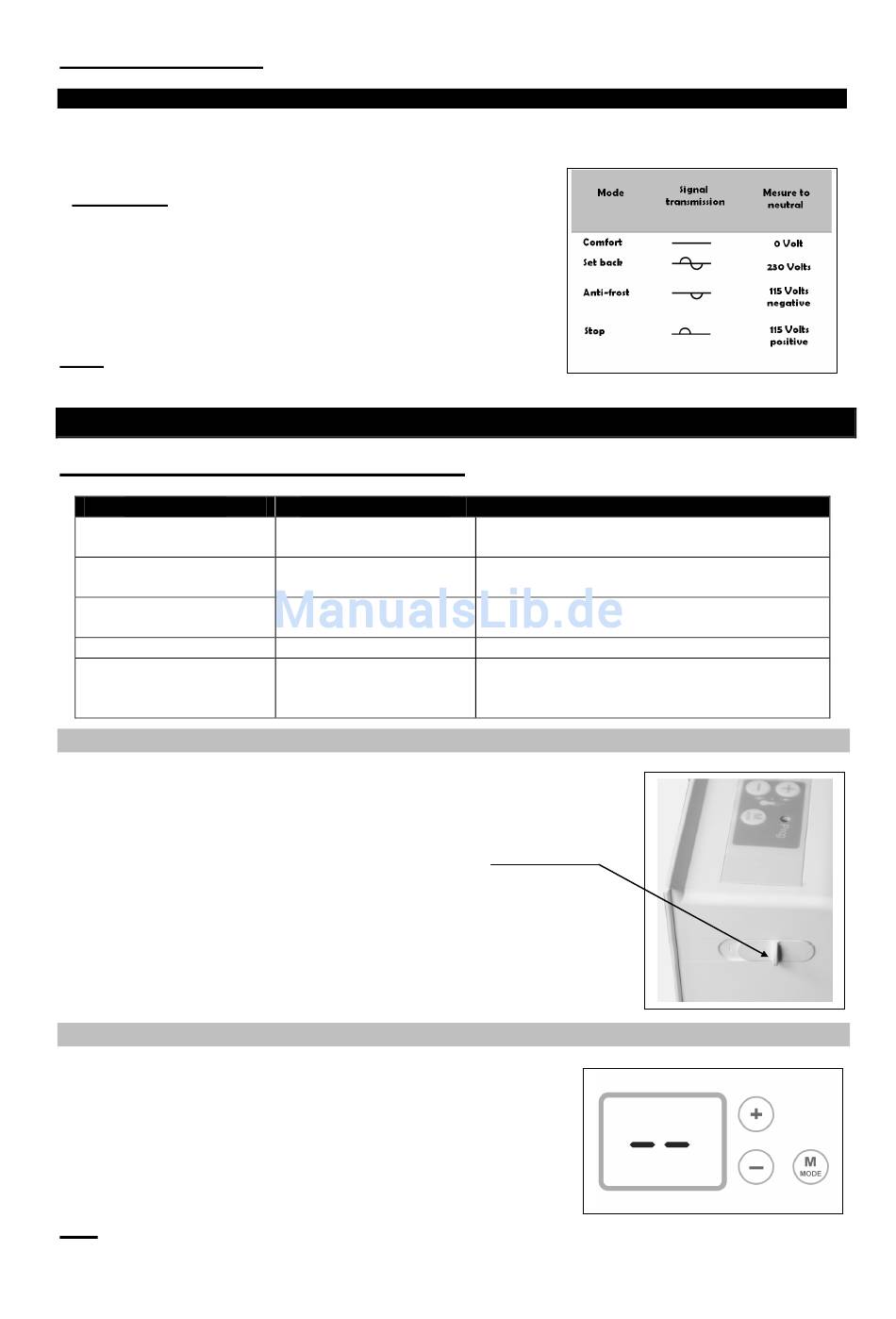

Note: The instructions for programming are sent by the side-
cons signals, measured from the Neutral.
THE SELECTOR MODE ENABLES 5 FONCTIONS :
FONCTIONS
COMFORT
ECONOMY (SET
BACK)
ANTI-FROST
STOP
PROGRAMMATION
To turn on the heater, put the on/off switch (on the side of the appliance)
on position 1.
For complete shutdown of the heater, turn the switch to position 0.
To start, push MODE button (picture cons) and the screen
will display comfort temperature (19).
To stop heating, push MODE button until "- - "appears
(stand-by mode).
Note: Your settings remain in memory; the heater is just on standby.
Neutral = Blue / Grey

5. HOW TO USE YOUR APPLIANCE

SCREEN DISPLAY
Displays temperature
(e.g. 19)
EC
HG
- -
Displays signal of
programmer
(function light PROG)
ON/OFF SETTING (Picture here under):
HEATING ON/OFF:
=English Version=
Holds temperature
settings.
Holds temperature at ~-3.5° C below comfort
temperature.
Holds temperature at ~7°C to avoid frost
damage.
Stops all heating functioning.
Enables functioning as of programmed
orders.
On/Off Switch
Pilot Wire = Black
as to thermostat
