6.2 THE PURELINK WHD030-V2 RECEIVER (RX)

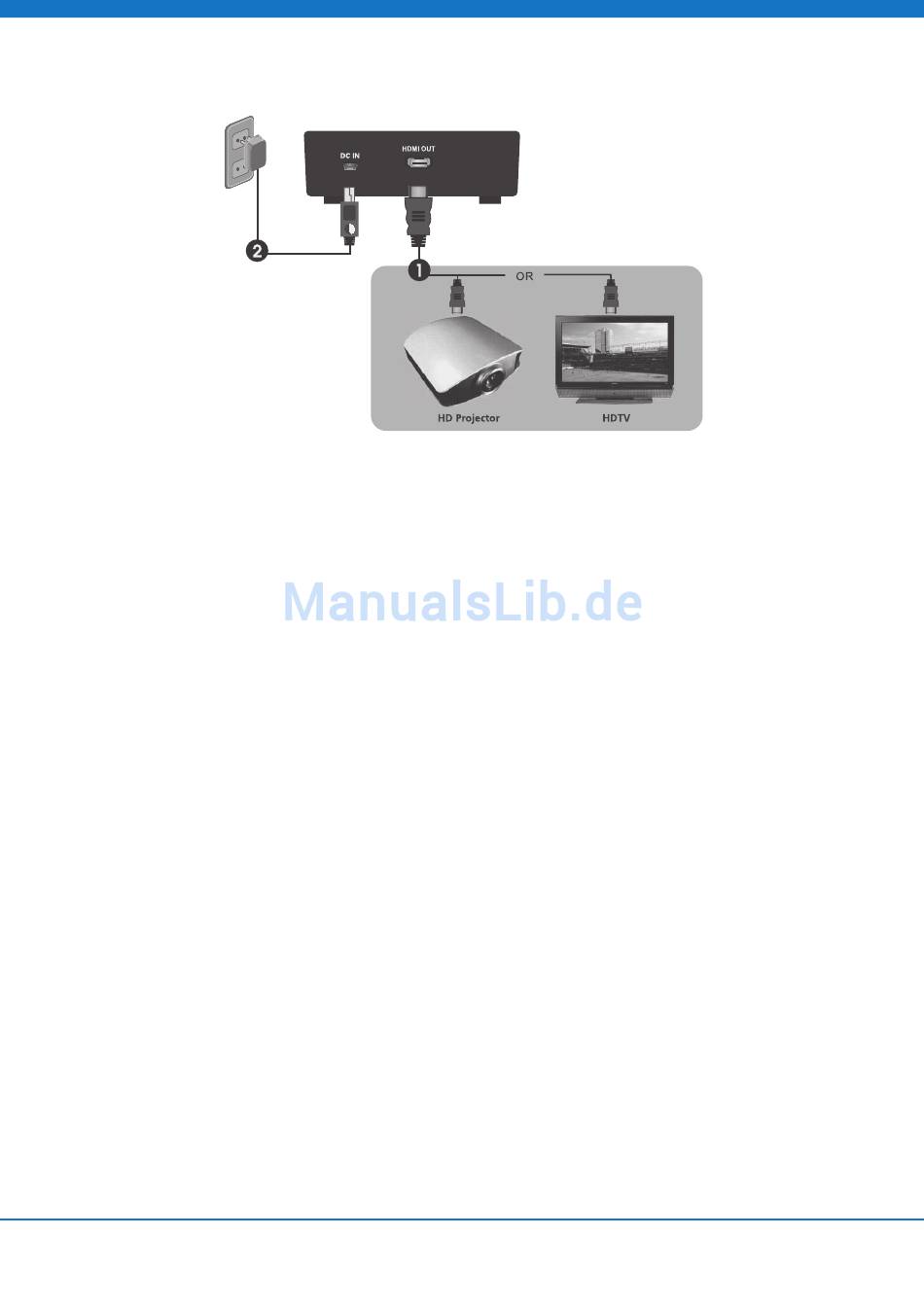

1. Connect your HDTV or HD Projector (HDMI IN) via an HDMI cable to the WHD030-V2 Receiver (HDMI OUT).
2. Connect the power adapter to the USB IN on the WHD030-V2 Receiver and to an electrical socket.
Note: Use the 2 plugs and 2 screws if you wish to attach the WHD030-V2 Receiver to the wall (e.g. behind your HDTV).

7. USAGE

7.1 SWITCH THE PURELINK WHD030-V2 ON

1. Once both power adapters have been inserted into the socket, the PureLink WHD030-V2 transmitter and receiver will
switch on automatically.
2. While warming up, both power LEDs will flash blue until the signal connection between the transmitter and receiver
has been established. It takes about 80 seconds for the system to start up.
3. If there is a good connection between the transmitter and receiver, both LEDs will light up and remain blue.
Note: Place the transmitter and receiver at least 1 meter apart to ensure a good connection.

7.2 SWITCH YOUR EQUIPMENT ON

1. Switch the HDTV or HD Projector ON and select the HDMI input on this device to which you have connected the
PureLink WHD030-V2 Receiver.
2. Switch the HD device or Laptop to which the PureLink WHD030-V2 transmitter is connected ON.
3. If there is a good connection between your HD device and the HDTV (or HD Projector), both LEDs on the receiver will
light up in blue constantly (see table in the event of another situation).

7.3 STANDBY MODE

If the power supply to the PureLink WHD030-V2 Transmitter is interrupted (power adapter or USB power cable), the
PureLink WHD030-V2 Receiver will switch to Standby mode after 10 minutes. If the PureLink WHD030-V2 Transmitter is
then powered up once again, the receiver will automatically detect this and switch back ON.
- 6 -
