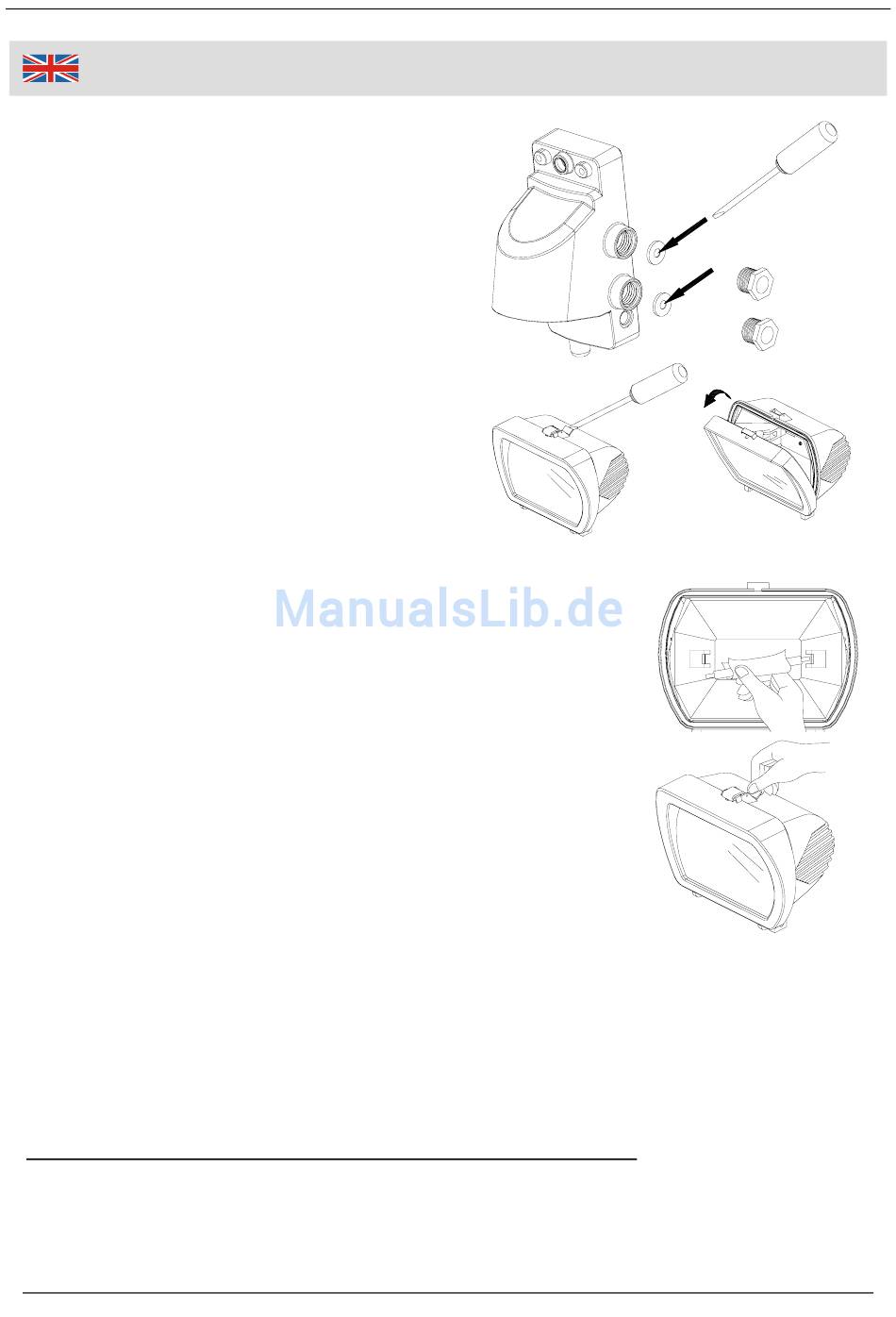

4. Remove the wire guide for mains
connection (4) and penetrate the
seal. Insert the wiring through the
wire guide and below the strain
relief. Connect the cables with the
terminals.
If you want to connect a second
floodlight, so both floodlights will
turn on and off at the same time,
use the second wire guide for
connecting the additional switch
contact (5). Connect these cables
with the terminals, labelled with LS
and N1 – brown cable with LS and
blue cable with N1.
5. Retighten the rear cover on the housing.
6. Lift up the mounting hinge (1) with a small
screwdriver and the glass cover (2) will open. Insert
the illuminant (3). Grasp the illuminant with a cloth
only. Make sure the illuminant is inserted correctly.
7. When closing the glass cover, make sure the seal is
inserted correctly into the provided notch, so the
cover will close water-tight.

Learning

The radio controlled halogen floodlight is a receiver. The
floodlight can be switched on and off with one or several
transmitters.
The remote control, type SR102, Art. 96 11 02,
the radio switch, type AC122, Art. Nr. 96 11 10 and
the motion detector, type SP101, Art. 96 11 51 can be used to switch on and
off the halogen floodlight.
To enable the floodlight to communicate with the transmitter, first a command
signals has to be emitted.
Learning the floodlight with the radio switch, Type AC122
Hold the floodlight close to the radio switch and press down the learning key
as long as the LED of the floodlight starts flashing. Now press the OFF section
of the radio switch for approx. 3 seconds. The command signal is emitted.
Connection
15
