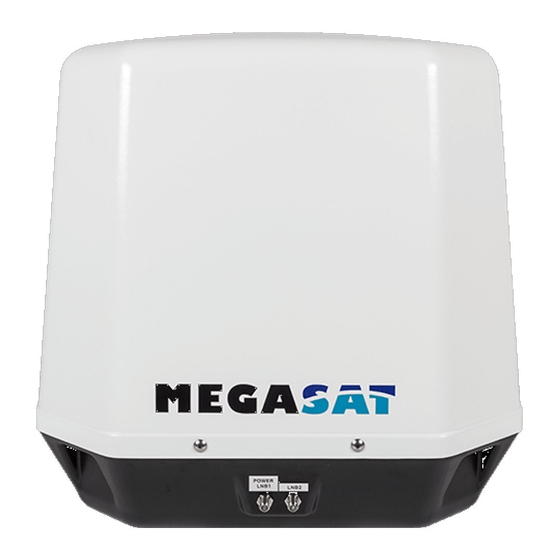

Satmaster Portable Dome
Bedienungsanleitung

Werbung

Kapitel

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Megasat Satmaster Portable Dome

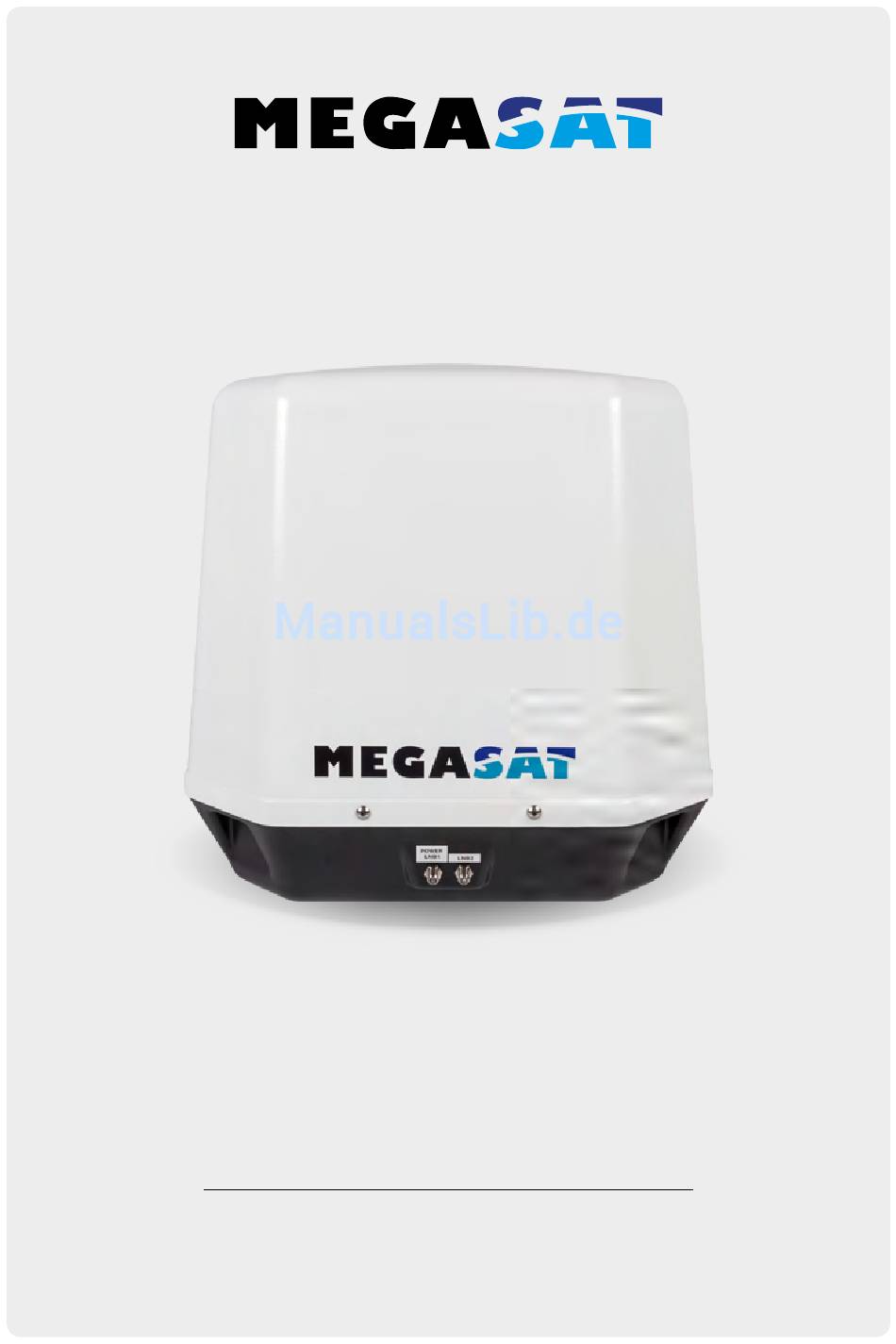

  • Seite 1 Satmaster Portable Dome Bedienungsanleitung...
  • Seite 2: Inhaltsverzeichnis

    Inhaltsverzeichnis 1. Einführung 1.1 Allgemeine Informationen ..............03 1.2 Lieferumfang ....................03 1.3 Systemkomponenten ................04 2. Das Steuergerät 2.1 Frontansicht ....................05 2.2 Rückansicht ....................05 3. Installation 3.1 Wahl des Standortes ................06 3.2 Anschluss der Komponenten ............07 3.3 Startup ......................
  • Seite 3: Einführung

    Hinweis: Falls Sie schon ähnliche Produkte installiert haben, muss die Vorge- hensweise mit diesem Produkt nicht zwingend übereinstimmen. 1.2 Lieferumfang • Satmaster Portable Dome • Steuergerät inkl. Halterung • 1 m Anschlusskabel (zum Receiver) • 10 m Anschlusskabel (zur Antenne) •...
  • Seite 4: Systemkomponenten

    1. Einführung 1.3 Systemkomponenten Öffnen Sie die Box und entnehmen Sie das Steuergerät, die Anschlusskabel und das Verpackungsmaterial. Heben Sie die Antenne gerade nach oben aus der Verpackung. Stellen Sie die Anlage niemals auf den Kopf! Mit dieser Metallöse kann die Antenne gegen Diebstahl gesichert werden.
  • Seite 5: Das Steuergerät

    2. Das Steuergerät 2.1 Frontansicht LCD Display Netzschalter DOWN Satellitenauswahl Satellitenauswahl Bestätigungstaste (hoch) (runter) 2.2 Rückansicht SETTOP DATA DC12-24 V Anschluss Anschluss Anschluss Stromversorgung Receiver Antenne Service Achtung: Schließen Sie das Steuergerät immer über eine mit 5 Ampere ab- gesicherte und mind. 2,5 mm² starke Leitung an (niemals direkt an die Batte- rie des Fahrzeuges).
  • Seite 6: Installation

    3. Installation 3.1 Wahl des Standortes Direct Broadcast Service (DBS) strahlt Audio, Video und Daten über den Satelliten aus, der sich in 35 km Höhe über der Erde befindet. Mit einer Empfangsstation wie die Antenne und einem Satelliten Receiver werden die Signale vom Satelliten empfangen und verarbeitet.
  • Seite 7: Anschluss Der Komponenten

    Bereich eines Airbags. Achten Sie auf eine sorgfältige Verlegung der Kabel, um Kurz- schlüsse zu vermeiden. Achten Sie hierbei auch auf schon vorhandene Kabel. Schließen Sie die Antenne wie auf der Abbildung dargestellt an: Satmaster Portable Dome Fernseher Stromversorgung über...
  • Seite 8 3. Installation 3.3 Inbetriebnahme 1. Schalten Sie das Steuergerät ein. 2. Die Antenne fährt in Grundstellung, anschließend erscheint im Display der aktuell eingestellte Satellit. Um einen anderen Satelliten zuwählen, wählen Sie diesen in- nerhalb von 10 Sekunden mit den „Hoch“ und „Runter“ Tasten. Andernfalls wird der aktuell angezeigte Satellit gesucht.
  • Seite 9: Anzeigen Des Lcd Displays

    3. Installation 3.4 Anzeigen des LCD Displays Das LCD Display zeigt den aktuellen Status des automatischen Suchsystems. ASTRA1 Beispiel Satellitenauswahl 19.2E EL 30DEG Beispiel Elevationsauswahl SIGNAL Satellitensignal gefunden DETECTED Bestätigt, dass das Signal des Zielsatelliten richitg ist DETECTED Kann kein Satellitensignal finden. SIGNAL Prüfen Sie die Ausrichtung der Antenne und LOST...
  • Seite 10: Manuelle Skew-Einstellung

    4. Manuelle Skew-Einstellung 4.1 Erklärung der Skew Einstellung Signale in vertikaler (rot) und horizontaler (blau) Linie haben einen Versatz von genau 90º zueinander. Durch die unterschiedliche Position der Satelliten, abhängig von Ihrem Stand- ort, ist es möglich, dass die Signale nicht genau vertikal und horizontal auf das LNB tref- fen.
  • Seite 11: Skew Manuell Einstellen

    4. Manuelle Skew-Einstellung 4.2 Skew manuell einstellen 1. Entfernen Sie die Schrauben am Gehäuse und 0° entfernen Sie die Kunststoffabdeckung. 2. Drehen Sie die Schrauben an der LNB Halterung locker, um das LNB leicht nach links oder rechts +90° -90° drehen zu können.
  • Seite 12: Fehlerbehebung

    3. Kabelverbindung Auch eine nicht ordnungsgemäße Kabelverbindung kann der Grund dafür sein, dass die Anlage nicht richtig funktioniert. Prüfen Sie alle Kabel und Steckverbindungen. Aus- gebildetes Servicepersonal kann Ihnen behilflich sein. Kontaktieren Sie Ihren Megasat Fachhändler. 4. Unzureichendes Satellitensignal Vergewissern Sie sich, dass keine Hindernisse (Bäume, Gebäude, Dachüberstände, etc.) die Sicht auf den Satelliten versperren.
  • Seite 13: Aktualisierung Der Firmware

    Sie sie aus und wieder an, damit der Down- load startet. In „Com Port Select“ werden nur die Nummern der COM-Ports angezeigt, die genutzt werden können. Das Programm unterstützt Windows XP und Windows 7. Kein Windows Vista. Hinweis: Die aktuelle Firmware finden Sie auf unserer Homepage www.megasat.tv DEUTSCH...
  • Seite 14: Ausleuchtzone

    7. Ausleuchtzone Hinweis: In den Randgebieten der Ausleuchtzone kann es zu Empfangsstörungen kommen. DEUTSCH...
  • Seite 15: Technische Daten

    8. Technische Daten Antennen Typ Parabolantenne Anzahl der Teilnehmer LNB Typ Universal LNB Frequenzband Ku Band Frequenzbereich 10.7 GHz bis 12.75 GHz LNB Verstärkung 32 dBi Empfangsleistung 54 dBW Polarisation Vertikal / Horizontal Motorsteuerung 2-Achsen DC Motor Neigungswinkel 0° bis 65° Suchwinkel 360°...
  • Seite 16: Konformitätserklärung

    Konformitätserklärung Hiermit erklärt die Firma Megasat Werke GmbH, dass sich folgendes Gerät in Überein- stimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Be- stimmungen der Richtlinie EC EMC Directive 2004/108/EC befindet: Megasat Satmaster Portable Dome Die Konformitätserklärung zu diesen Produkten liegt der Firma vor: Megasat Werke GmbH Industriestraße 4a...
  • Seite 17 Notizen DEUTSCH...
  • Seite 18 Stand: 1.1 (Februar 2016) // Technische Änderungen, Druckfehler und Irrtümer vorbehalten. Megasat Werke GmbH | Industriestraße 4a | D-97618 Niederlauer | www.megasat.tv | info@megasat.tv...
  • Seite 19 Satmaster Portable Dome User manual...
  • Seite 20 Content 1. Introduction 1.1 General Information ................03 1.2 Delivery ......................03 1.3 System components ................04 2. The control unit 2.1 Front view ...................... 05 2.2 Rear view ......................05 3. Installation 3.1 Choice of location ..................06 3.2 Connecting the components ............07 3.3 Startup ......................
  • Seite 21: Introduction

    Note: If you have already installed similar products, the procedure does not necessarily coincide with this product. 1.2 Delivery • Satmaster Portable Dome • Control unit incl. bracket • 1 m connection cable (to set-top box) • 10 m connection cable (to antenna) •...
  • Seite 22: System Components

    1. Introduction 1.3 System components Open box and remove the control unit, cables and packing material. Lift the antenna straight up out of the box. Never place the system upside down! With this metal eyelet, you can secure the antenna against stealing. Antenna unit The elegant plastic housing will protecting the antenna against outside weather conditions.
  • Seite 23: The Control Unit

    2. The control unit 2.1 Front view LCD Display Power switch DOWN Satellite selection Satellite selection Confirmation (up) (down) button 2.2 Rear view SETTOP DATA DC12-24 V Connection Connection Port for Power supply Set-top box Antenna Service Warning: Connect the device only at a 5 amp protected line. The line must be at least 2.5 mm²...
  • Seite 24: Installation

    3. Installation 3.1 Choice of location Direct Broadcast Service (DBS) satellites broadcast audio, video and data information from satellites located 22 miles in space. A receiving station, such as the antenna, should include a dish and satellite receiver to receive the signals and process them for use by the consumer audio and video equipment.
  • Seite 25: Connecting The Components

    Pay attention to careful laying of the cables to prevent short circuits. Pay attention also to already existing cable. Connect the antenna to as shown in the figure: Satmaster Portable Dome Television Powered by the 12 V connection cable or the...
  • Seite 26: Startup

    3. Installation 3.3 Startup 1. Turn on the control unit. 2. The antenna moves to the home position, then the display shows the currently selected satellite. To choose another satellite, select it within 10 seconds with the „up“ and „down“ buttons. Otherwise, the satellite currently displayed are searched. 3.
  • Seite 27: Viewing The Lcd Displays

    3. Installation 3.4 Viewing the LCD displays The LCD display shows the current status of the automated search system. (applies to Satmaster Portable Premium and Professional) ASTRA1 Sample satellite selection 19.2E EL 30DEG Sample Elevation selection SIGNAL Satellite signal is found DETECTED Confirmed that the signal from DETECTED...
  • Seite 28: Manual Skew Adjustment

    4. Manual skew adjustment 4.1 Declaration of skew adjustment Signals in the vertical (red) and horizontal (blue) line have an offset of exactly 90° to each other. Due to the different position of the satellites, depending on your location, it is pos- sible that the signals do not meet exactly vertically and horizontally on the LNB.
  • Seite 29: Set Skew Manually

    4. Manual skew adjustment 4.2 Set Skew manually 1. Remove the screws on the housing and 0° remove the plastic cover. 2. Turn the screws on the LNB bracket loosely to easily rotate the LNB to the left or right. +90°...
  • Seite 30: Troubleshooting

    If some channels work while one or more other channels do not, or if the antenna is un- able to find the satellite, the selected satellite’s frequency data may have changed. This frequency data can be updated via the maintenance port. Contact your local Megasat dealer or service center for assistance.
  • Seite 31: Firmware Update

    In ‚Com Port Select‘ Only numbers are displayed to the COM ports that can be used. The program supports Windows XP and Windows 7, no Windows Vista. Note: You can find the latest firmware on our website www.megasat.tv ENGLISH...
  • Seite 32: Footprint

    7. Footprint Note: In the outlying areas of the footprint there may be interference. ENGLISH...
  • Seite 33: Specifications

    8. Specifications Antennen Typ Parabol antenna Anzahl der Teilnehmer LNB Typ Universal LNB Frequenzband Ku Band Frequenzbereich 10.7 GHz to 12.75 GHz LNB Verstärkung 32 dBi Empfangsleistung 54 dBW Polarisation Vertical / Horizontal Motorsteuerung 2-Axis DC motor Neigungswinkel 0° to 65° Suchwinkel 360°...
  • Seite 34: Declaration Of Conformity

    Declaration of Conformity Hereby declare the company Megasat Werke GmbH that the following devices is in compliance with the essential requirements and other relevant provisions of Directive Council EC EMC Directive 2004/108/EC: Megasat Satmaster Portable Dome The Declaration of Conformity for these products is located the company: Megasat Werke GmbH Industriestraße 4a...
  • Seite 35 Notes ENGLISH...
  • Seite 36 Status: 1.1 (February 2016) // Technical changes, misprints and errors reserved. Megasat Werke GmbH | Industriestraße 4a | D-97618 Niederlauer | www.megasat.tv | info@megasat.tv...
