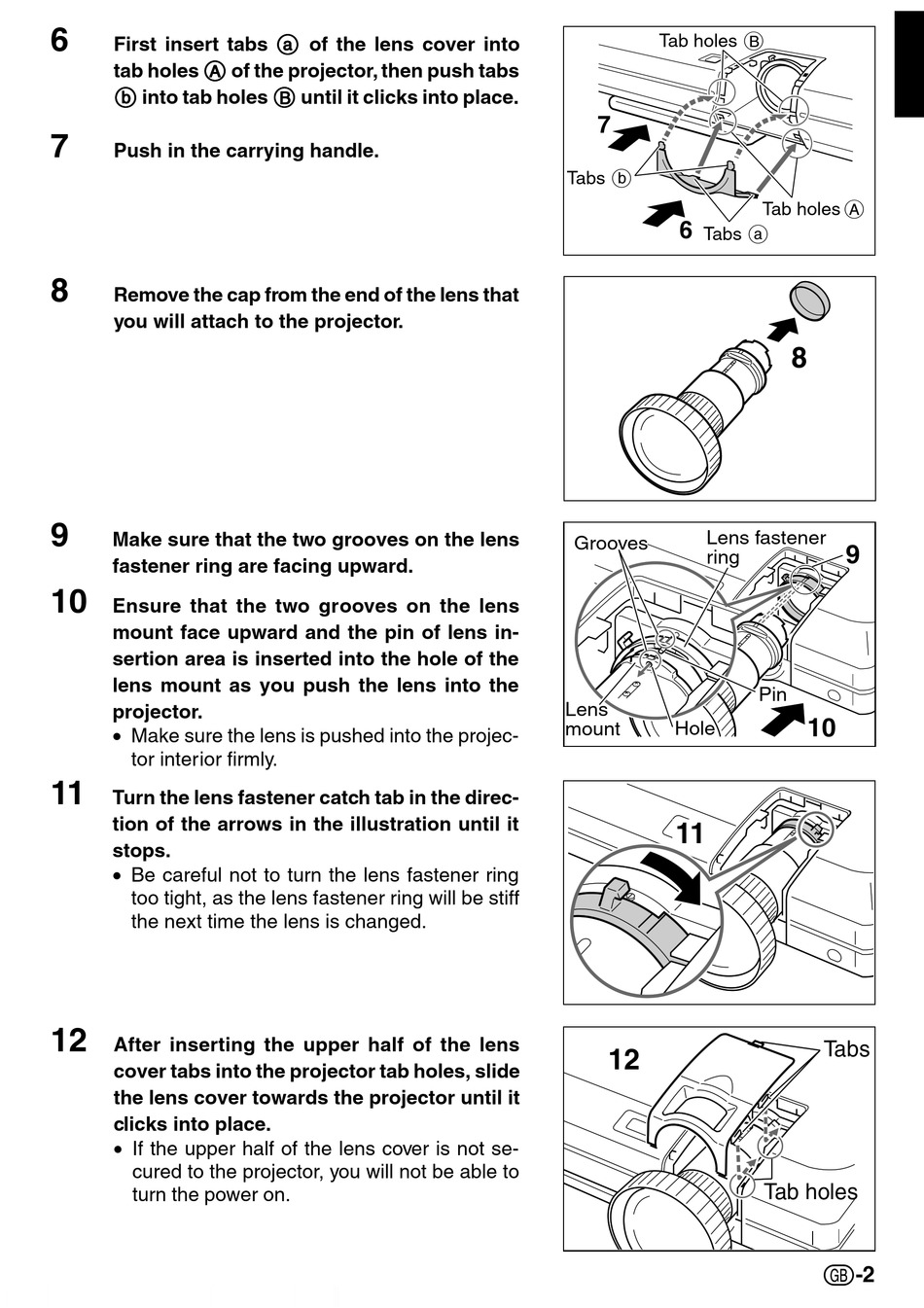

Sharp AN-C12MZ Installationshandbuch Seite 3

6
First insert tabs a
A A
tab holes A A of the projector, then push tabs A
b b into tab holes B b b b
7
Push in the carrying handle.
8
Remove the cap from the end of the lens that
you will attach to the projector.
9
Make sure that the two grooves on the lens
fastener ring are facing upward.
10
Ensure that the two grooves on the lens
mount face upward and the pin of lens in-
sertion area is inserted into the hole of the
lens mount as you push the lens into the
projector.
• Make sure the lens is pushed into the projec-
tor interior firmly.
11
Turn the lens fastener catch tab in the direc-
tion of the arrows in the illustration until it
stops.
• Be careful not to turn the lens fastener ring
too tight, as the lens fastener ring will be stiff
the next time the lens is changed.
12
After inserting the upper half of the lens
cover tabs into the projector tab holes, slide
the lens cover towards the projector until it
clicks into place.
• If the upper half of the lens cover is not se-
cured to the projector, you will not be able to
turn the power on.
a a
a a of the lens cover into
B until it clicks into place. B B B
Tab holes B
7
Tabs b
6
Tabs a
Lens fastener
Grooves
ring
Lens
mount Hole
11
12
Tab holes A
8
9
Pin
10
Tabs
Tab holes
-2
