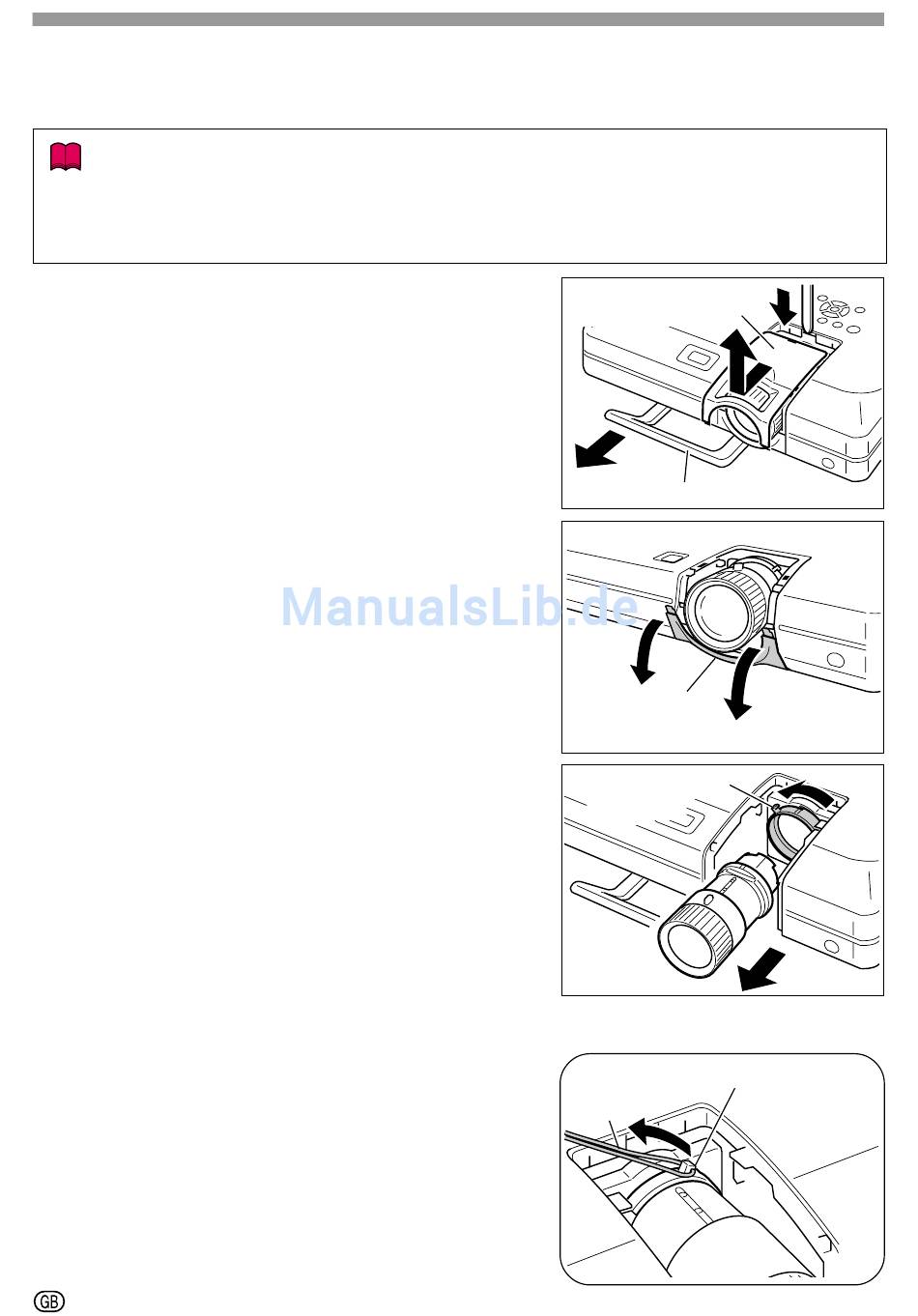

Changing the Lens

When changing the lens, use the supplied lens cover stick.
Info
• Before changing the lens turn off the power to the projector and remove the power cord
from the wall outlet.
• Do not attempt to change the lens while the projector is mounted on the ceiling.
1
Pull out the carrying handle.
2
Use the tip of the supplied lens cover stick
to push down on the groove on top of the
upper half of lens cover while pulling for-
ward to remove it with your hand.
3
To remove the bottom half of the lens cover,
pull it down and towards you.
4
To remove the lens, hold it in one hand, to
keep it from dropping, while you turn the lens
fastener catch tab in the direction of the ar-
rows in the illustration with your other hand.
• If the lens fastener ring is stiff, attach the sup-
plied lock release strap to the catch tab on
the lens fastener ring and pull the strap to turn
it.
5
Remove the lens.
-1
Upper half of the
lens cover
1
Carrying handle
Lower half of
the lens cover
Lens fastener
catch tab
Procedure for loosening the stiff
lens fastener ring
Lock release
strap
2
3
4
5
Lens fastener
catch tab
