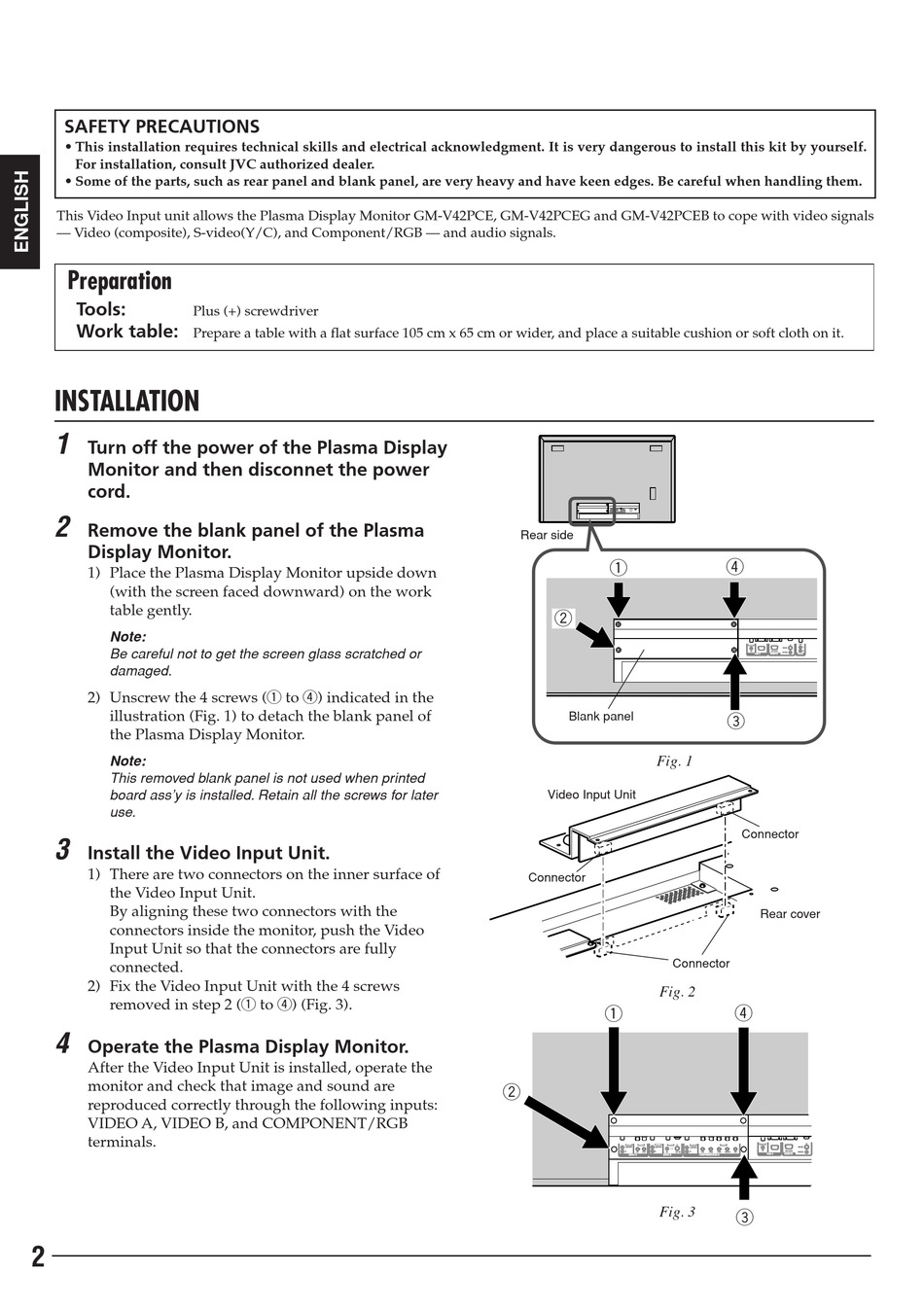

SAFETY PRECAUTIONS
• This installation requires technical skills and electrical acknowledgment. It is very dangerous to install this kit by yourself.
For installation, consult JVC authorized dealer.
• Some of the parts, such as rear panel and blank panel, are very heavy and have keen edges. Be careful when handling them.
This Video Input unit allows the Plasma Display Monitor GM-V42PCE, GM-V42PCEG and GM-V42PCEB to cope with video signals
— Video (composite), S-video(Y/C), and Component/RGB — and audio signals.
Preparation
Tools:
Plus (+) screwdriver
Work table:
Prepare a table with a flat surface 105 cm x 65 cm or wider, and place a suitable cushion or soft cloth on it.
INSTALLATION
1
Turn off the power of the Plasma Display
Monitor and then disconnet the power
cord.
2
Remove the blank panel of the Plasma
Display Monitor.
1) Place the Plasma Display Monitor upside down
(with the screen faced downward) on the work
table gently.
Note:
Be careful not to get the screen glass scratched or
damaged.
2) Unscrew the 4 screws (1 to 4) indicated in the
illustration (Fig. 1) to detach the blank panel of
the Plasma Display Monitor.
Note:
This removed blank panel is not used when printed
board ass'y is installed. Retain all the screws for later
use.
3
Install the Video Input Unit.
1) There are two connectors on the inner surface of
the Video Input Unit.
By aligning these two connectors with the
connectors inside the monitor, push the Video
Input Unit so that the connectors are fully
connected.
2) Fix the Video Input Unit with the 4 screws
removed in step 2 (1 to 4) (Fig. 3).
4
Operate the Plasma Display Monitor.
After the Video Input Unit is installed, operate the
monitor and check that image and sound are
reproduced correctly through the following inputs:
VIDEO A, VIDEO B, and COMPONENT/RGB
terminals.
2
AUDIO
OUT
MAKE
L
IN
RS-232C
WIRED
R
RGB A
REMOTE
AUDIO
AC IN
Rear side
1
2
Blank panel
Fig. 1
Video Input Unit
Connector
Connector
Fig. 2
1
2
AUDIO
VIDEO
AUDIO
VIDEO
L/MONO
L/MONO
R
R
IN
OUT
IN
Y/C IN
VIDEO A
VIDEO B
Fig. 3
4
AUDIO
OUT
L
MAKE
R
IN
RS-232C
WIRED
RGB A
REMOTE
AUDIO
3
Connector
Rear cover
4
AUDIO
AUDIO
VIDEO
L/MONO
MAKE
IN
RS-232C
R
Y/G
Pb/B
Pr/R
HD/Cs
VD
WIRED
RGB A
REMOTE
COMPONENT/RGB B
3
