5.2.3 Installation on flush-type box

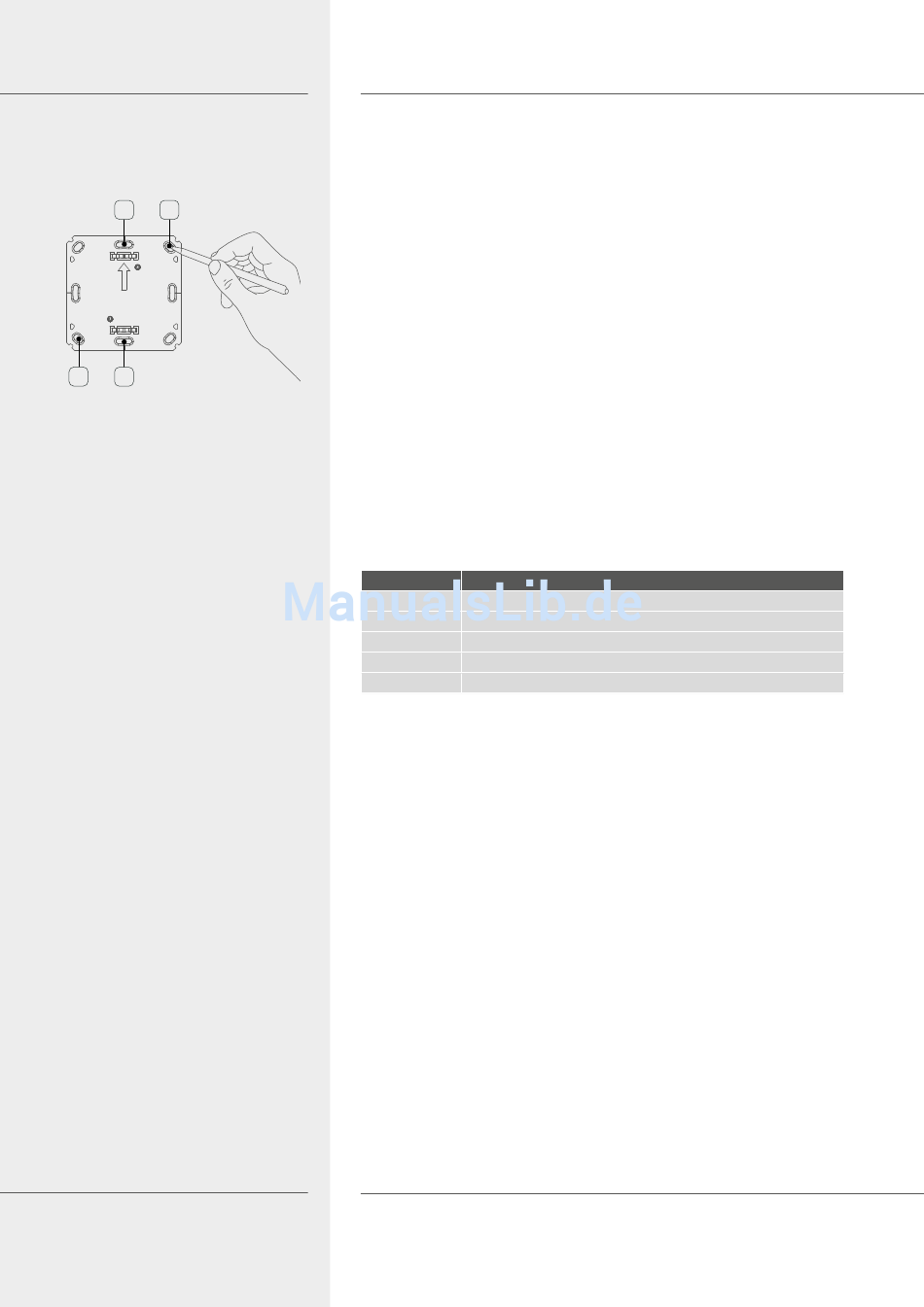

The fixing holes in the mounting plate can be used for installation onto
a flush-type box.
1. Remove the mounting plate from the room control unit Display S.
2. Align the mounting plate horizontally on the flush-type box.
3. Install the mounting plate with the correct screws (see Q in fig. left). .
4. Install the interchangeable frame onto the mounting plate.
5. Position the device onto the mounting plate and latch it into the clips.

5.2.4 Installation in multiple combinations

The device can be used with frames of other manufacturers or be inte-
grated in a multiple frame. For installation in multiple combinations, in-
stall the mounting plate of the device flushing with the already installed
mounting plates/bearer rings and align it to these. The device will fit into
the frames of the following manufacturers:
Manufactuer Frames
Berker
ELSO
GIRA
merten
JUNG
23 DEU ENG
FIN SWE
S.1, B.1, B.3, B.7 Glas
Joy
System 55, Standard 55, E2, E22, Event, Esprit
1-M, Atelier-M, M-Smart, M-Arc, M-Star, M-Plan
A 500, AS 500, A plus, A creation
FRA NDL ITA
POL RUS
ESP DAN/NOR
