3. PARTS LIST

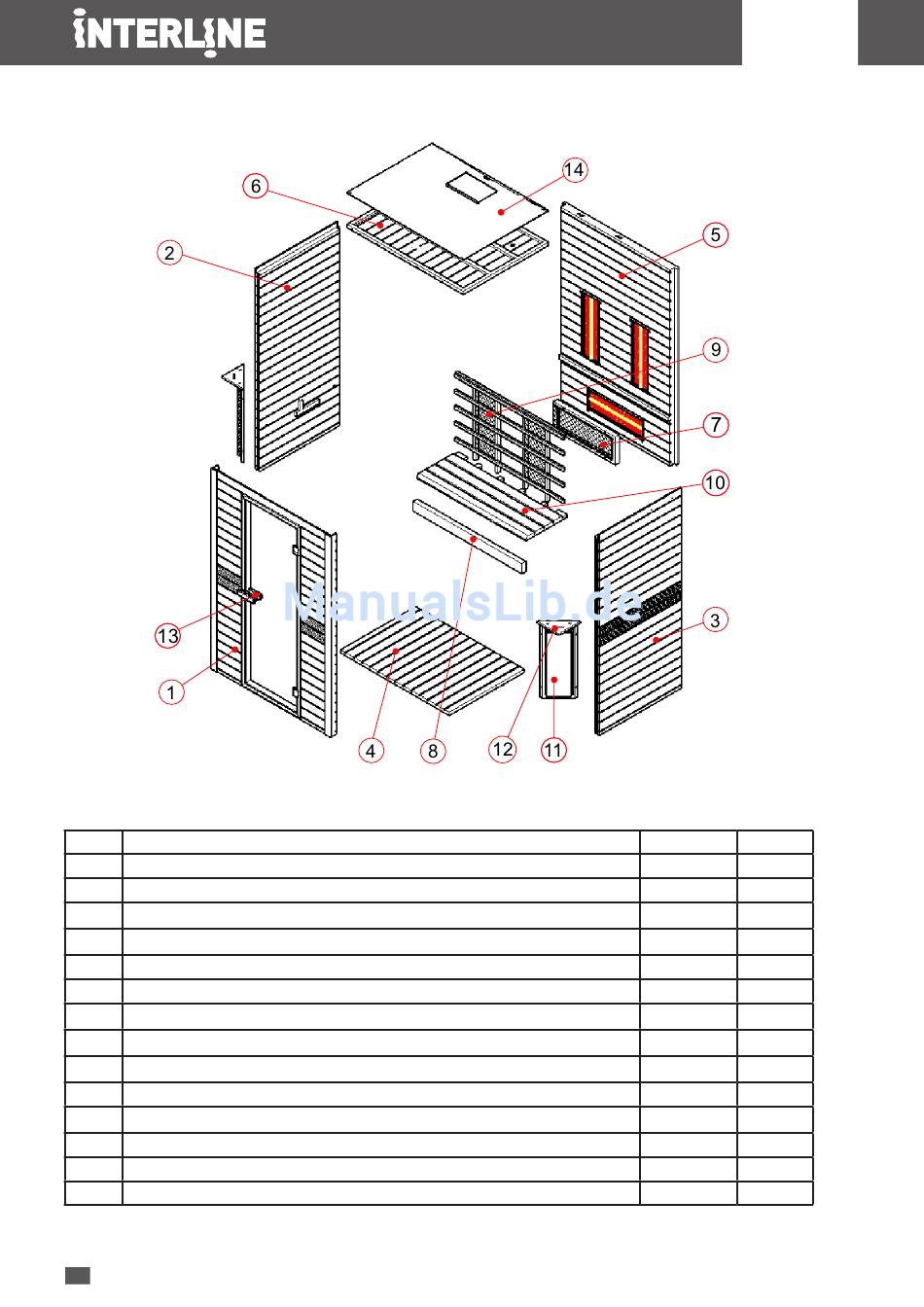

Cabin Individual parts (variations possible)
No. Name
1 Front panel (1900*1301*62,5mm)
2 Side panel 1 (1900*890*48mm)
3 Side panel 2 (1900*890*48mm)
4 Floor panel 1 (1184*841*40,5mm)
5 Back panel (1860*1246*43.5mm)
6 Top panel (1269*928*28mm)
7 Calves guardrail (670*250*43mm)
8 Bench support panel (1188*90*40mm)
9 Back guardrail (1188*720*43mm)
10 Bench surface panel (1188*450*33mm)
11 Front heater (650*280*28mm)
12 Front heater cover (305*135*20mm)
13 Door handle (outside,180*40*45mm & inside,120*40*45mm)
14 MDF cover (1269*928*3mm)
15
EN
Quantity Box No.
1 1
1 2
1 2
1 1
1 1
1 1
1 1
1 1
1 1
1 1
2 3
4 3
2 1
1 1
